SPECIFICATIONS

After-sales Service: Call Center and on-line Technical Support

Chipset: Intel Embedded 6/7/11/12/13 Generation SOC

Display interface: 1 * HD interface

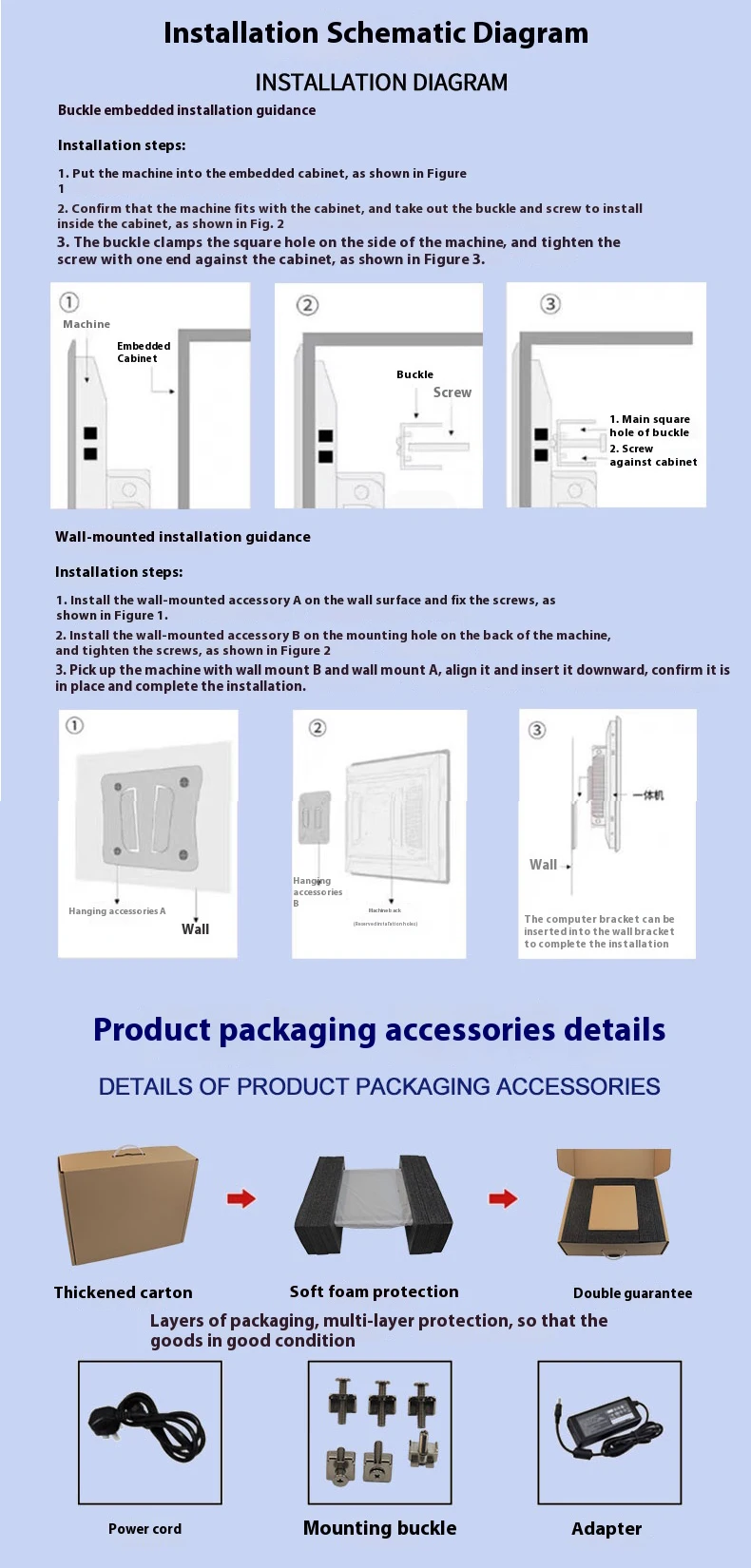

Installation method: Embedded/Wall Mounted/Desktop Stand

Memory Capacity: 4G/8G/16G

Power Supply: DC12V input, can be increased to 9-36V wide voltage input

Processor: Intel low-power embedded 6/7/11/12/13 generation CPUs

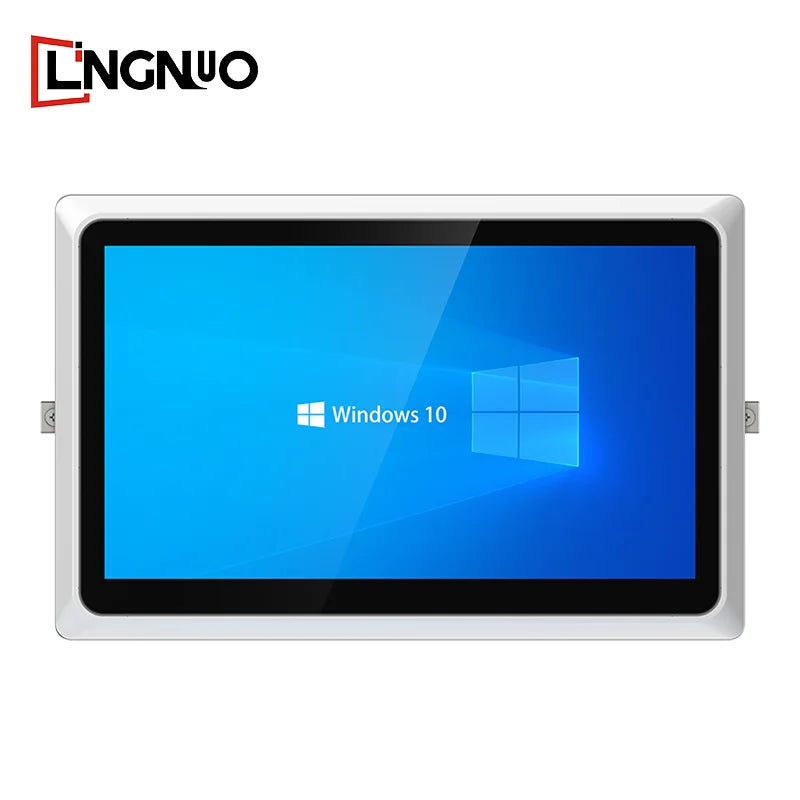

Product name: 13.3-inch industrial tablet computer

Storage environment: -40°C~ 80°C (-40°F~176°F)

Working environment: -10°C~ 60°C (-4°F~149°F)

Working humidity: 10% -95% @ 40 ° C without condensation

brand name: LNZK

brightness: 250 cd/m

color: Gray

display ratio: 16:9

display resolution: 1920X1080

display type: Lcd

feature: Touch Screen

graphics card chipset: Integrated Card

graphics card type: Integrated Card

hard drive type: SSD

hdd rotation speed: SSD

interface type: RS232C,Usb,DC,LAN,AUDIO,HD

model number: KR133

mouse & keyboard: No

operation system: Wins10 +Linux

optical drive type: SSD

panel style: LCD

place of origin: Guangdong, China

plug type: US,JP,CN,AU,UK,EU

power: 25W

private mold: Yes

processor brand: Intel

processor core: Quad Core

processor type: Intel Core

products status: New

ram type: DDR4

screen type: Lcd

series: For Business

use: Industrial

vertical viewing angle: 85°

video card: Intel UHD Graphics

video memory: 2 GB

video memory type: Hbm2

warranty: 1-Year

widescreen: Yes

Coauter	LPC-KR-133
ChassisColor	Gray (color can be freelycusto mized)

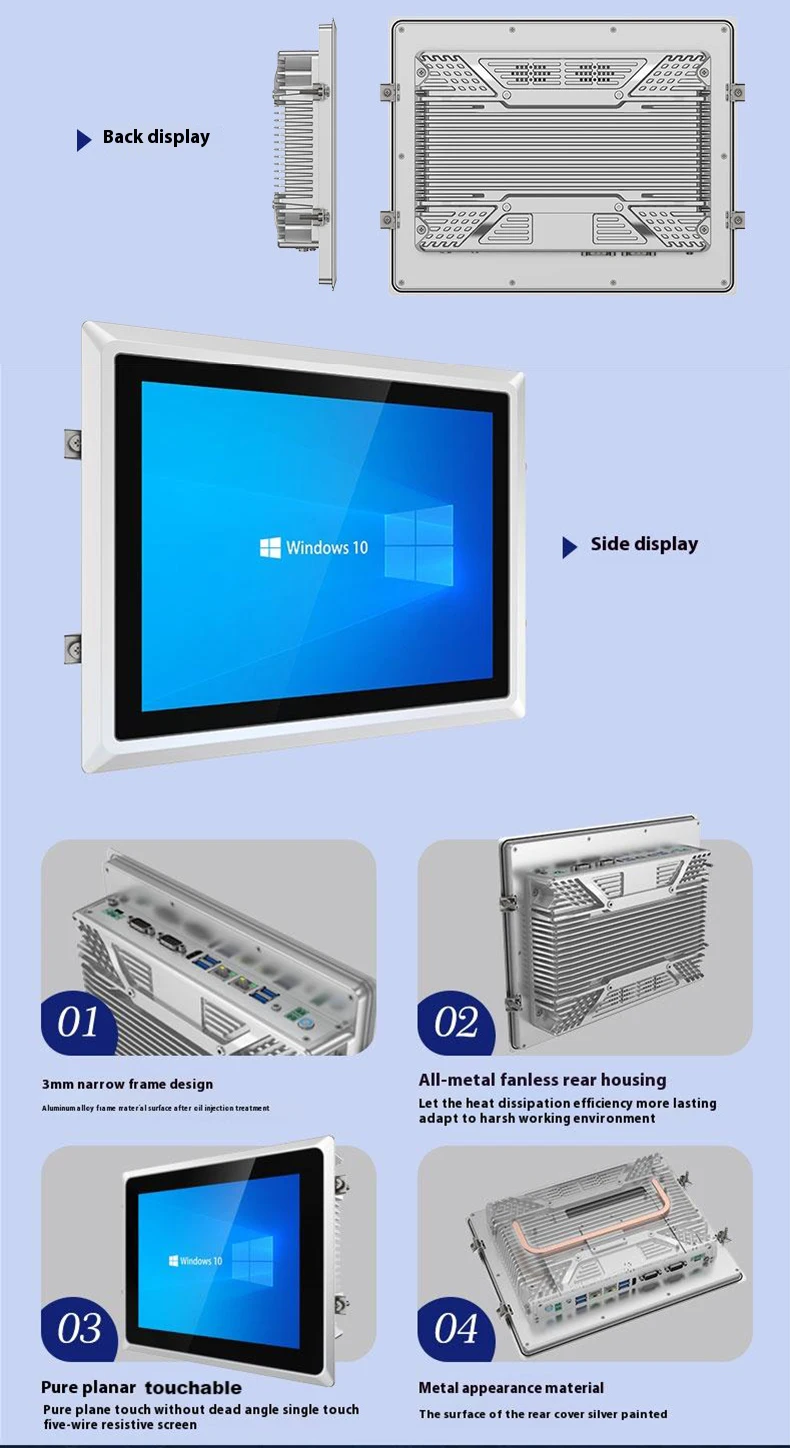

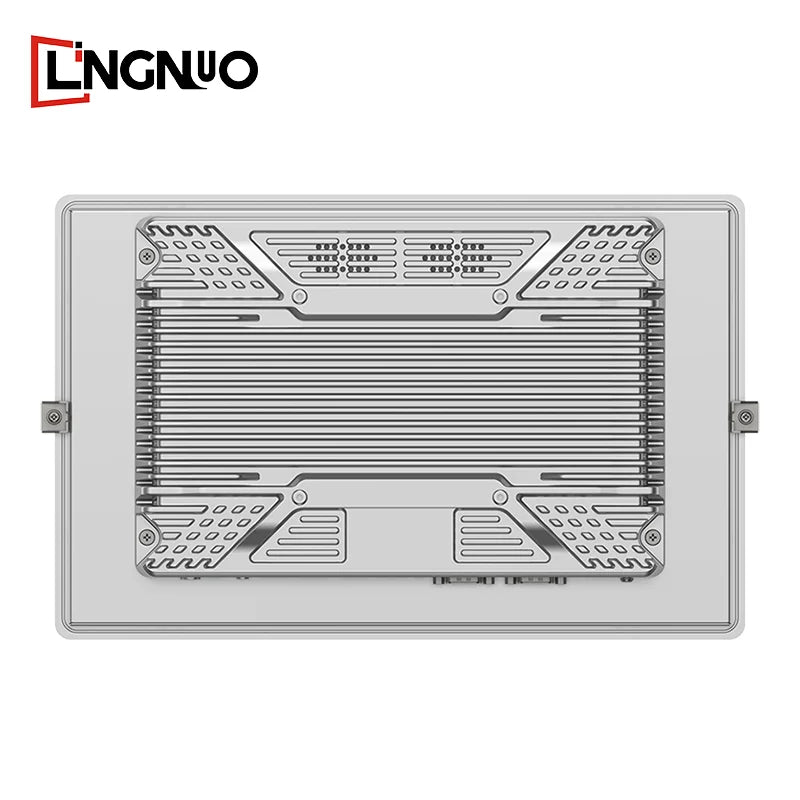

Chassismaterial	Aluminum alloy integrated die- casting shell
Processor	On-board intelCeleronJ6412
		On-board IntelasperLakeN5095
	Processor	On-board IntelSkyLakei7-6500U
		On-board IntelKabyLakei5-7200U
		On-board IntelAlderLakei5-1235U
		On-board IntelRaptorLakei5-1335U
Memory	Supports 1 DDR4 SODlMM memory slot up to 32GB
Blos	AMIEFIBIOS
Display chip	IntegratedintelUHDGraphics core graphicscard
Display interface	1HD,1LVDSinterface(supportsynchronous/asynchronous dual display)
St orage sp ace	Onboard1M.2-2280slot ($ATA protocol),1 2.5 "hard disk bit
Exp ansion slot	Holds 1 Mini PClE slot (optional support for WlFl/Bluetooth/3G/4G with SlM card holder)

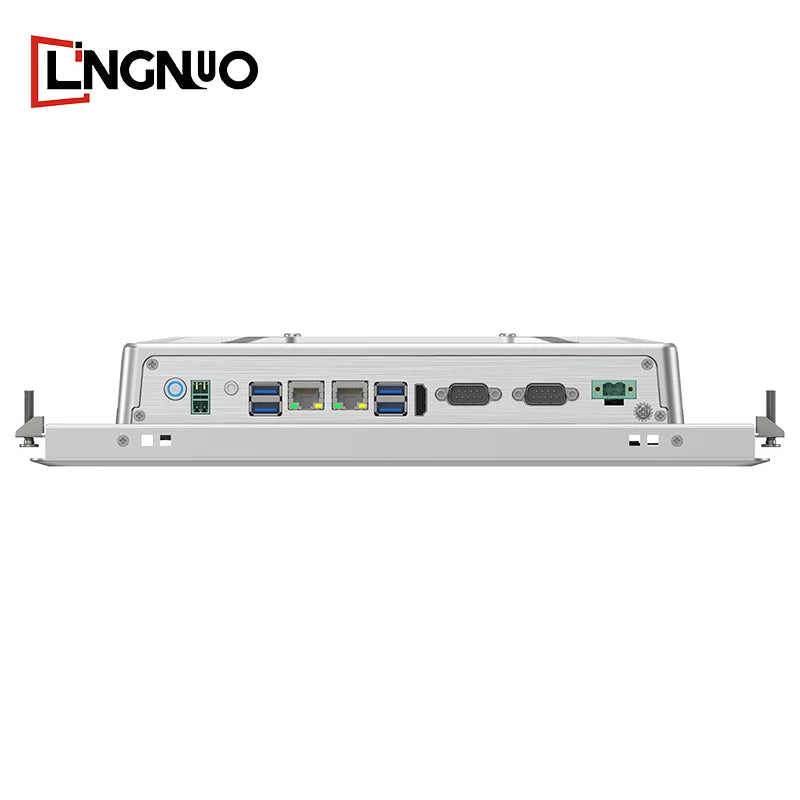

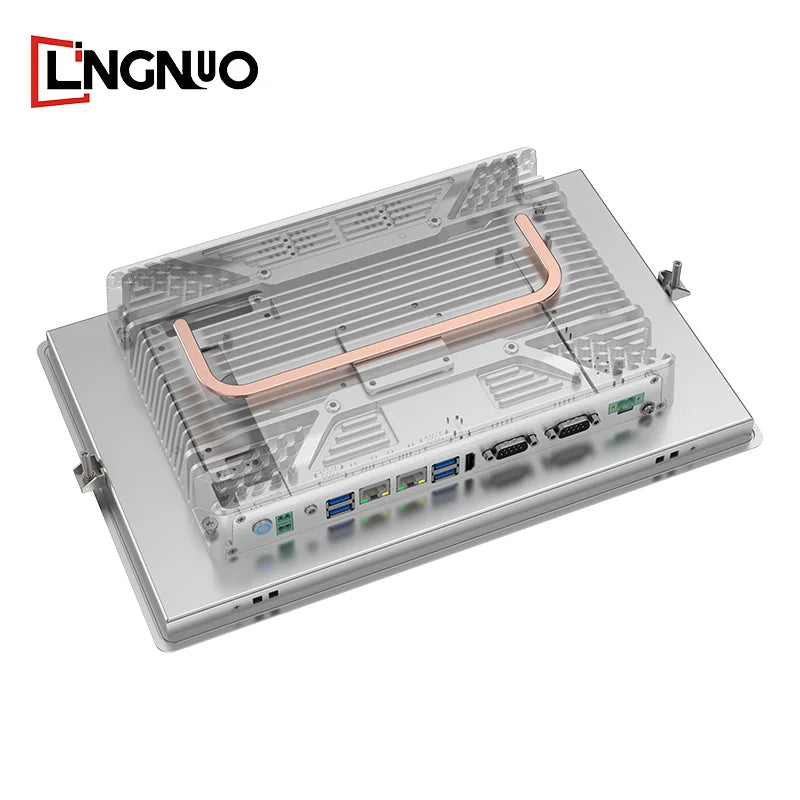

1/0 port	HD interface,2 serialports(COMi,optiona 1R$232/485, optional 6serialports).1 switch button
		1 x2Pin Powered Phoenix Terminal, 1 x 2-in-1 Audio.4 x USB3.0.2xIntel Gigabit LAN Ports, 1 x 4pin Remote Switch
Otherfunctions	Secure encryption, power-on, timed boot, network wake-up, PXE boot, watchdog (0~255 levels)
Expandable Functionality	Standard shipments without this interface): without GPl0 (8 in 8out), standard 2 network ports, standard 2 serial ports, 4 USB3.0

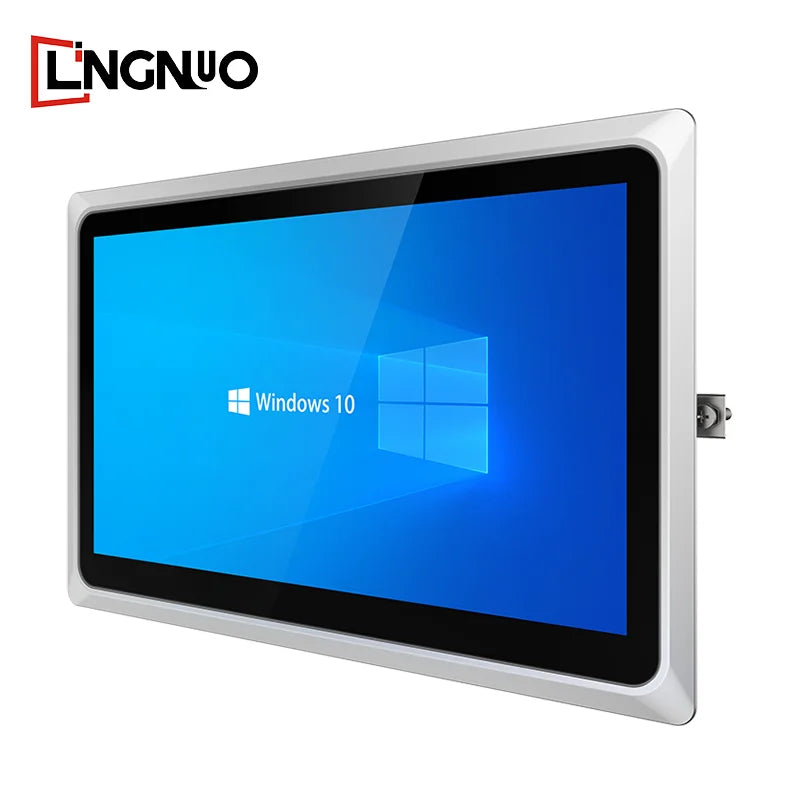

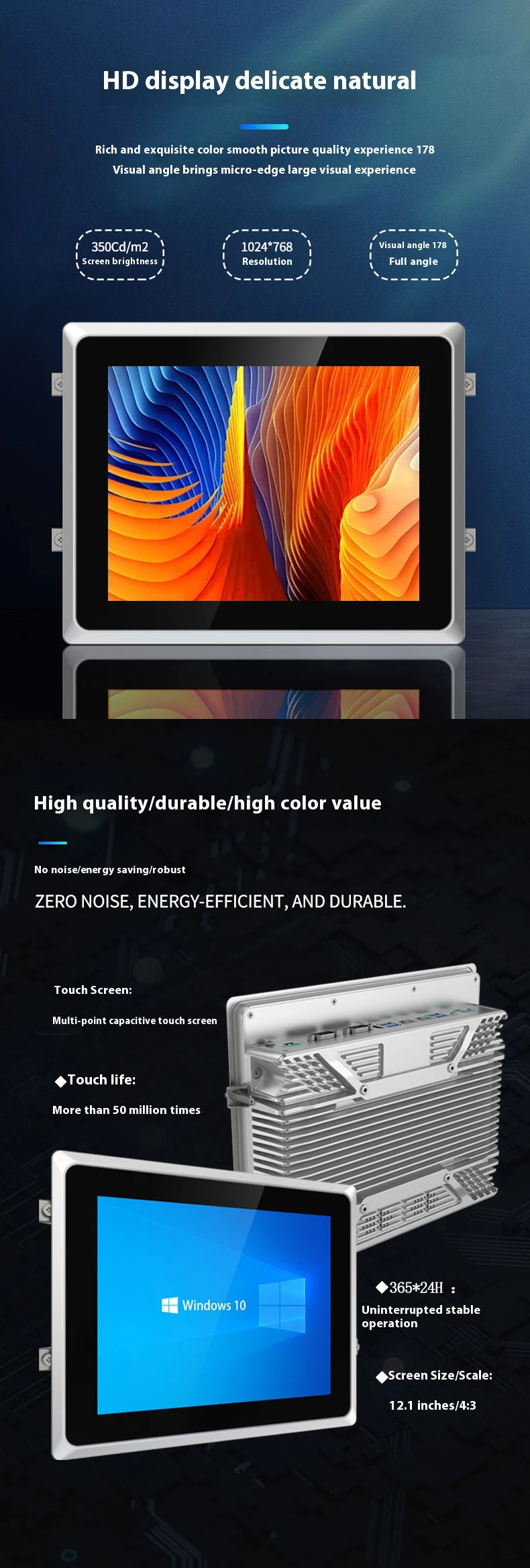

Liqguid screenp arameters	Sereensize.13.3inchTFT-LCD:screen brightness.350cd/m2: Visua angle: full viewingangle
		Screen ratio:16:9:Resolution:1920*1080

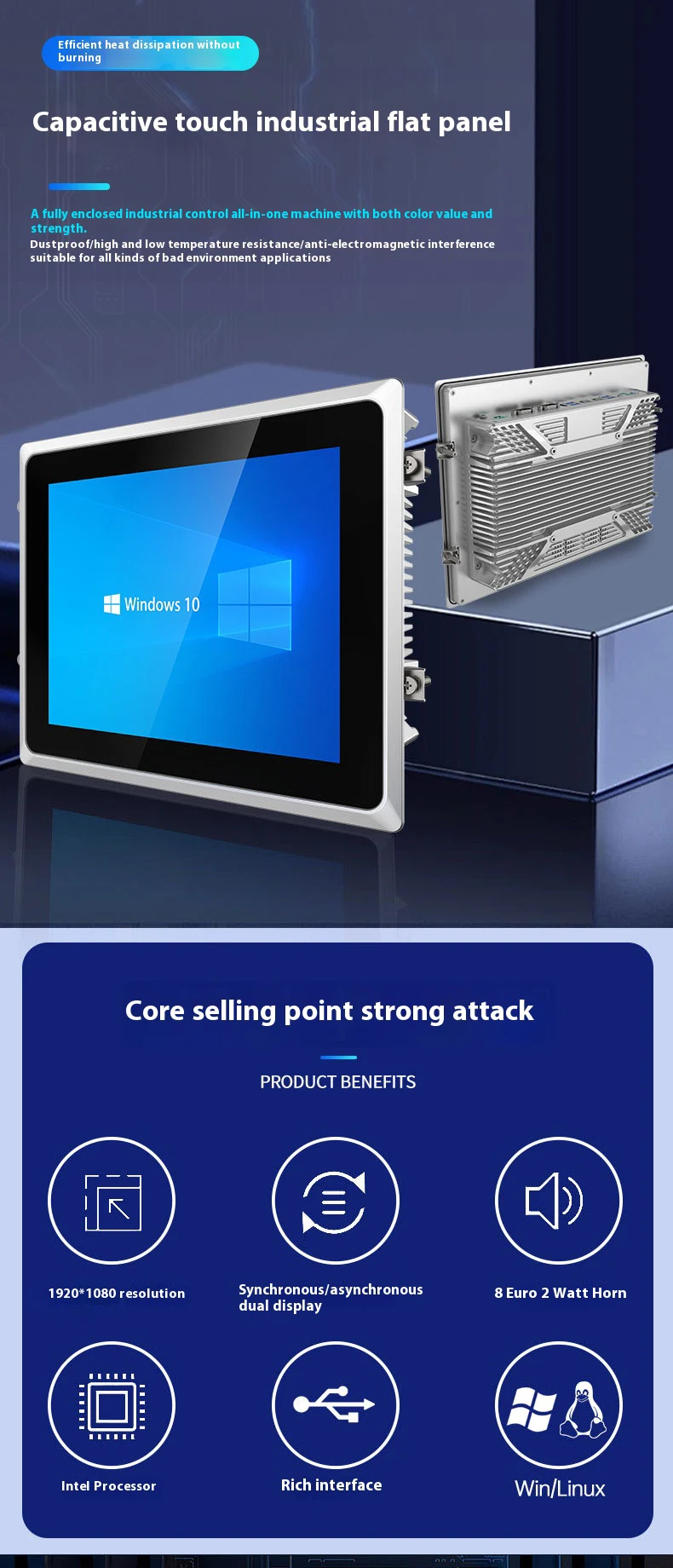

Touch screenp arameters	Industrial-grade multi-point cap acitive touch screen, touch life can reachmore than 50 million times
Horn	28 Euro 2 Watt Horns
Input volt age	DC9~36V wide voltage input, support positive and negative reverse protection

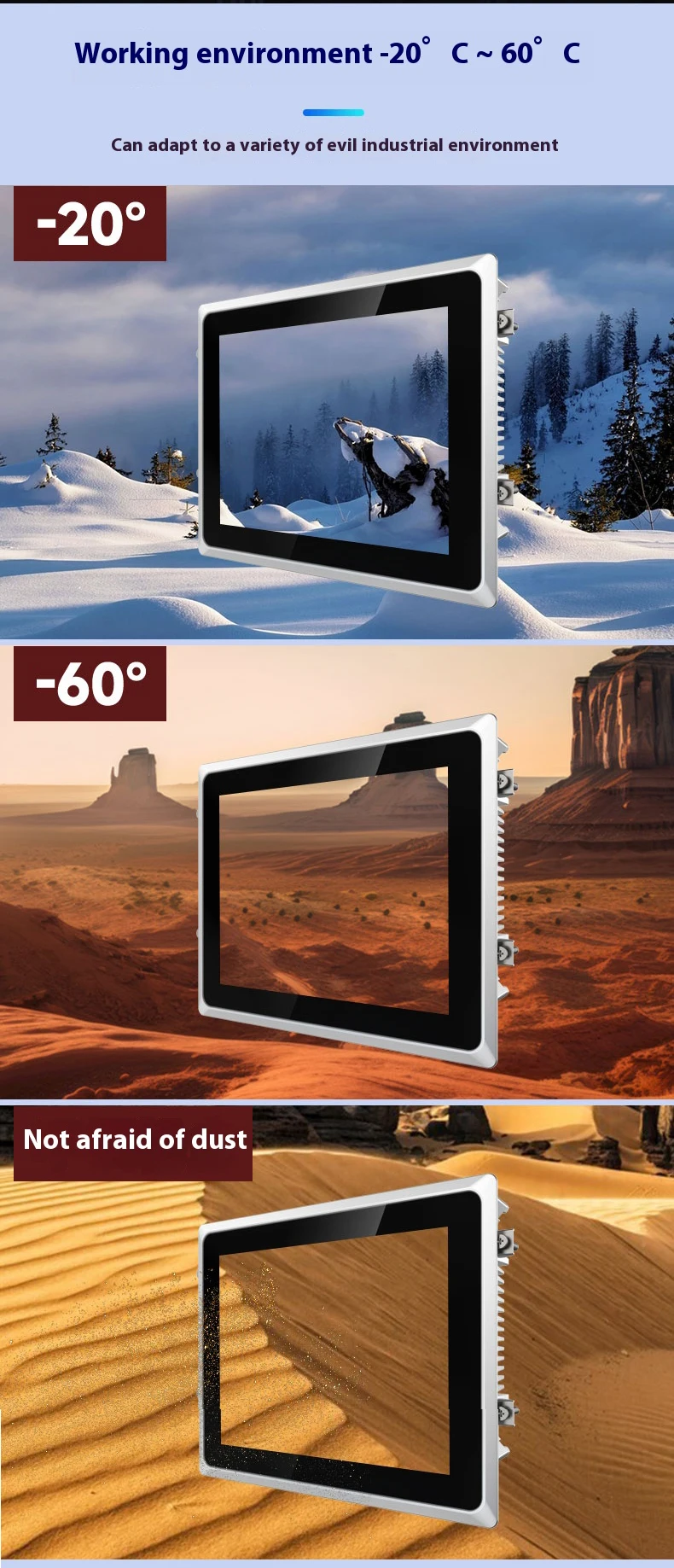

Operating temperature	-10'C~+50C(Mechanical HDD),-20'C~+60C(SSD) Surface Air Flow
Working humidity	5%~ 95% non-condensingst ate

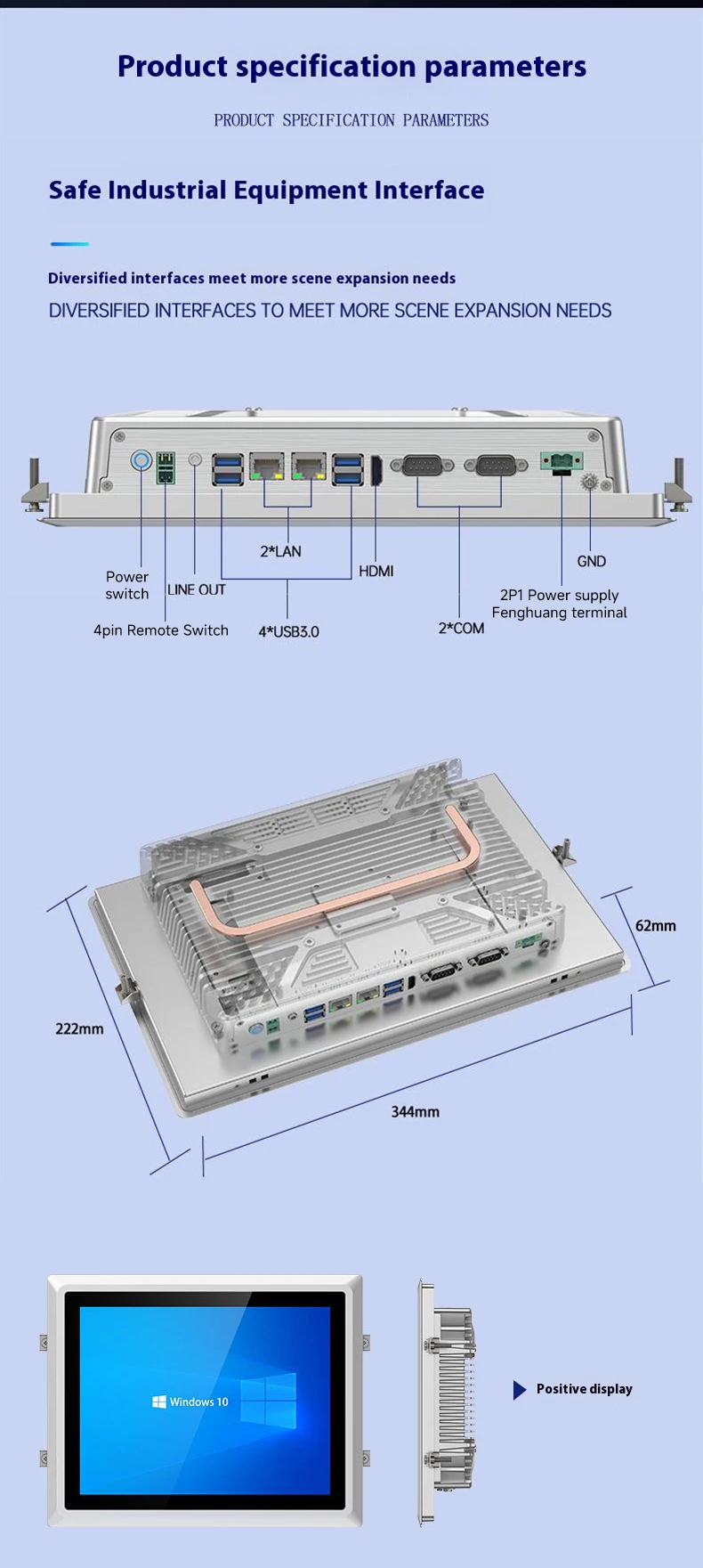

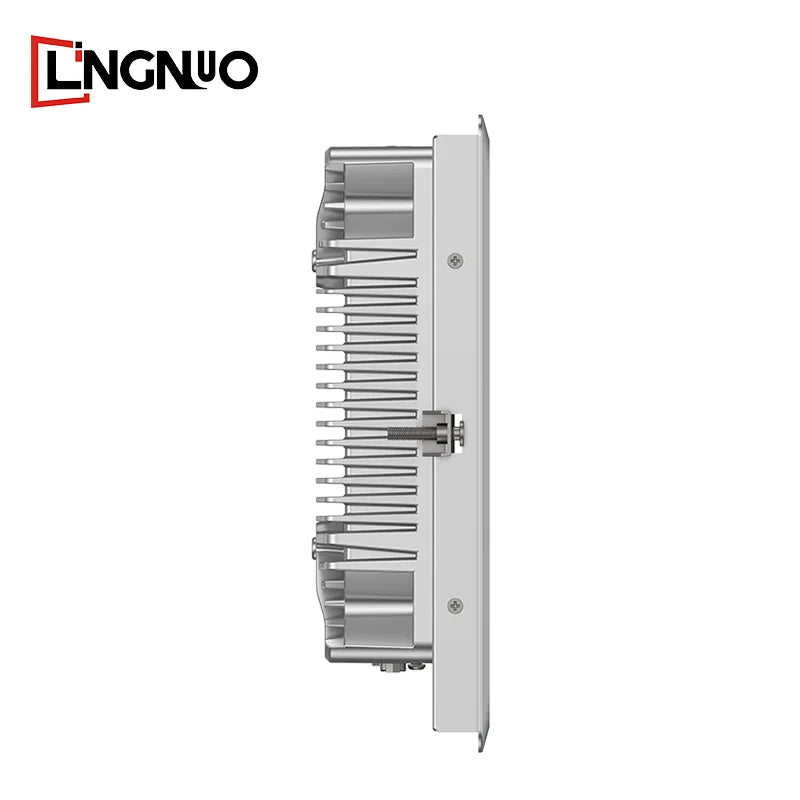

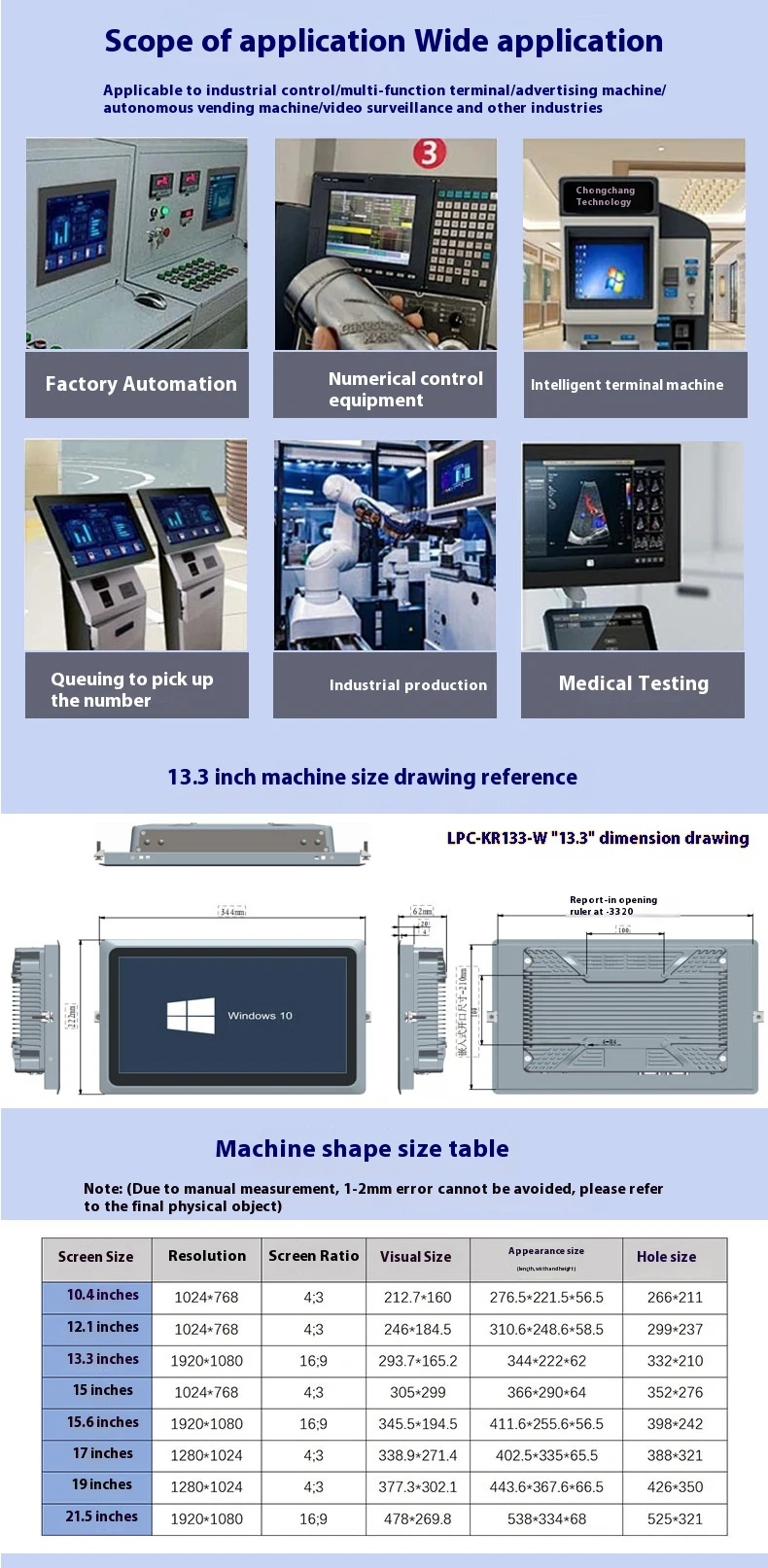

Product size	344x222x62mm
Flushmounting dimensions	Length332x width 210mm
Overall weight	2.8kg
Applicationfield	Industrial automation,medical, logistics and transp ortation. warehousing,machine vision and other fields
