SPECIFICATIONS

Application: ATM.POS.Open Frame Machine ...etc

Brand Name: Manufacture brand or custom

CPU: J1900/J4125/J6412 /6/7/8/9/10th /i3/i5/i7/RK3288/RK3399/RK3568/RK3588

Hard Drive Capacity: 16GB/32GB/64GB / 128GB / 256GB / 528G / 1T (optional)

Memory: 2G / 4G / 8G / 16G / 32G / 64G (optional)

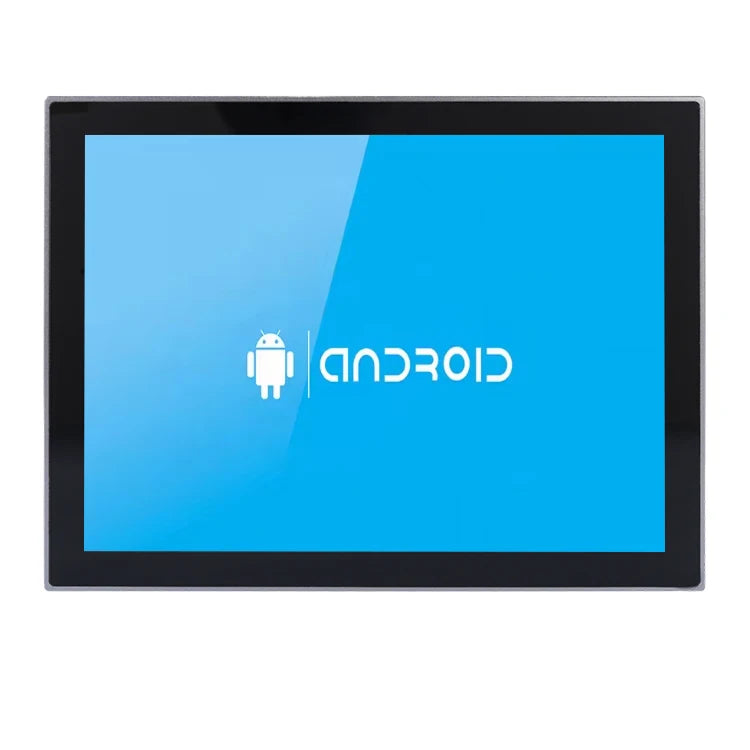

Product name: Industrial Touches Panel Pc

Resolution: 1280*800/1920*1080

Size: 10.4"/12.1"/13.3"/15"/15.6"/17"/18.5"/19"/21.5"

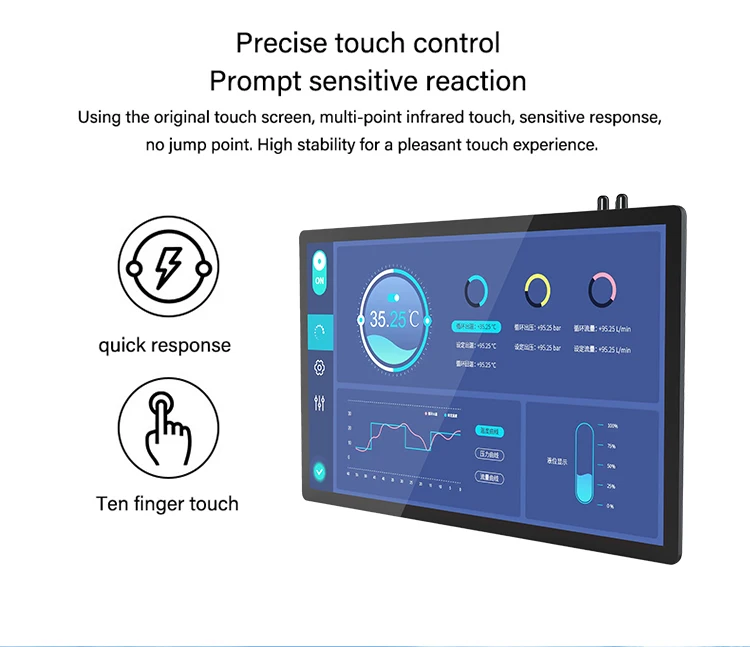

Touch points: 10 points projective capacitive touch

Warranty: 1 Year

brand name: huiyuan

place of origin: Guangdong, China

products status: Stock

type: wall amout panel pc

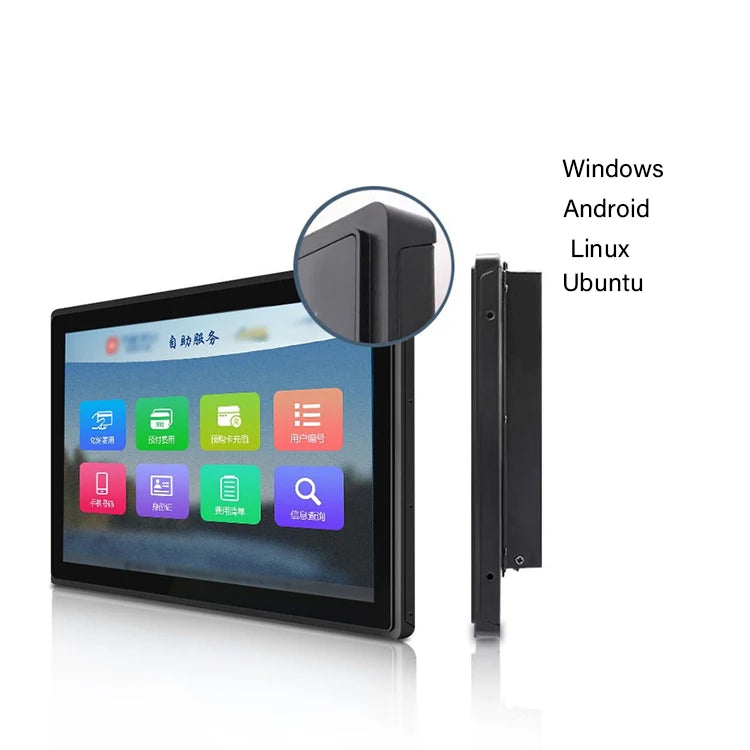

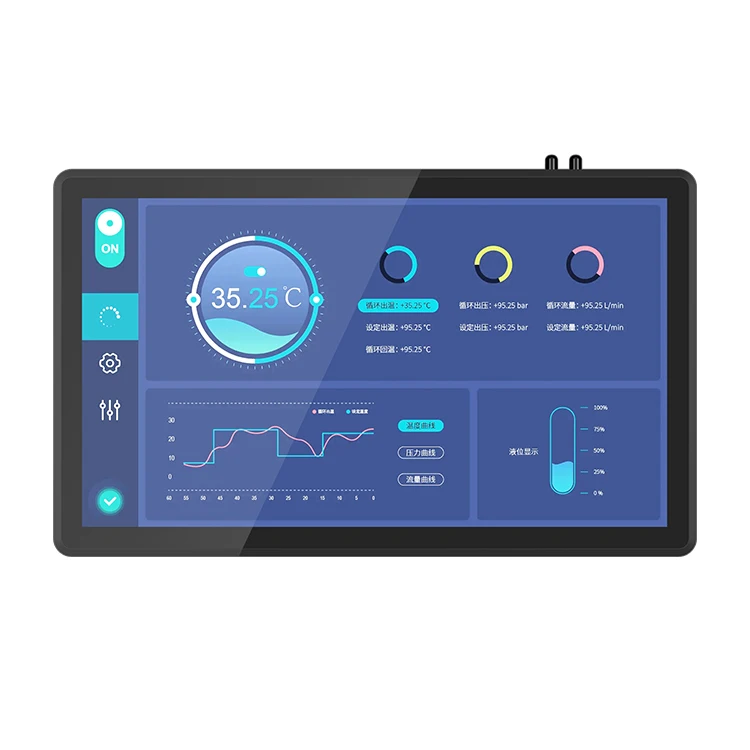

Products Description

TY-X02

X02 industrial personal computer, equipped with LED LCD screen, with anti-light interference, sunlight, incandescent lamp, fluorescent lamp and other strong light changes when normal use, 10 point standard projection capacitive touch screen, high sensitivity, fast response, can achieve multi-touch functions such as zoomin and zoom out pictures, You can choose your own configuration products according to your own situation, and win with absolute cost performance

Product Paramenters

STANDARD PARAMETER	SOC	J4125 (Optional: Intel J6412, industrial control board i3, i5，i7，)
		storage	1 * M.2 2280 Interface support NVME and SATA Dual protocol (adaptive) 1 * 2.5" SATA HDD/
		graphics card	Core graphics card (independent graphics card can be customized)
		network	Integrated 10/100/1000M adaptive network card, wireless network card 802.11a/b/g/n

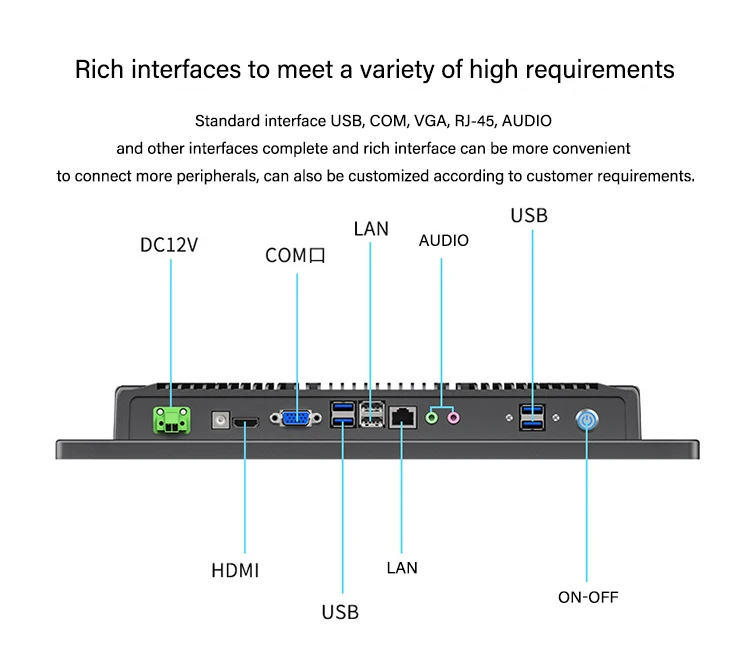

I/O PORT	FRONT OUT	2*RS232/485
		REAR OUT	2*HDMI  4*USB  2*LAN  1*MIC IN  1*LINE OUT
power supply	power input	12V5A
size	size dimension	bare computer: 257.4*176.4*45.5 With mounting foot size：350*235*120mm
t&h temperature and humidity	operating temperature	-10°C~ 60°C
		storage temperature	0°C~ 60°C
		operating humidity	0%-90%
system	Support operating system	Win7/Win10/Win11/Linux

Details Images

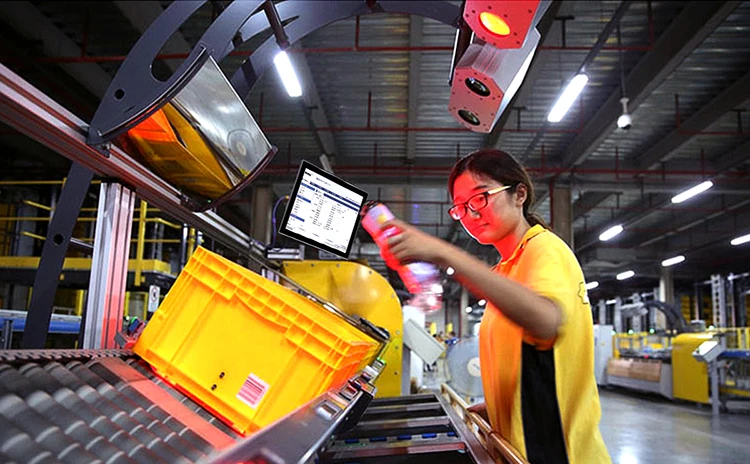

Application of industrial tablet computer in logistics sorting line

Express industry is currently one of the fastest growing areas of logistics automation, with the gradual deepening of the commodity economy, social demand shows a trend of small batch, multi-variety development, the types and data of delivery goods increased sharply, while promoting the rapid development of the express industry, but also gave birth to automated operation requirements. In particular, the popularity of electronic noodle sheets has promoted the transformation of logistics information, which has laid a solid foundation for the promotion of intelligent sorting systems. Sorting operation has become a key link in logistics distribution, based on industrial computer control technology and information technology derived from the sorting robot, ring cross belt sorting machine and other intelligent sorting system equipment, compared with manual has the following technical advantages, so as to achieve rapid application in the express industry. The application of intelligent sorting system in the express delivery industry is a key factor to improve the efficiency of logistics distribution. In the process of realizing automation and intelligent technology upgrading, there must be a professional and reliable embedded computer to provide hardware support. According to the demand of modern logistics industry information, logistics companies need to carry out information management on the equipment, personnel and goods of the sorting center. The sorting line workstation is an important part of the whole sorting information system, which is mainly composed of scanning weighing area, automatic sorting area, end slip bag area and other areas. The staff collects the barcode information and weight of the package through the scanning gun, camera and weighing device, which greatly reduces the workload of the operator and the error rate, and gradually realizes the intelligent information management.

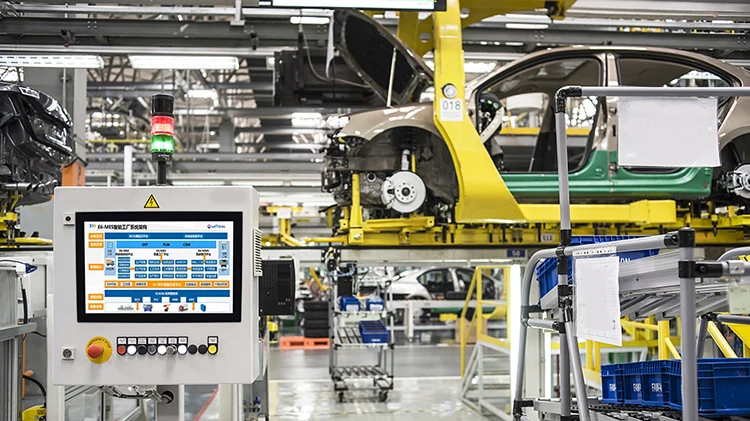

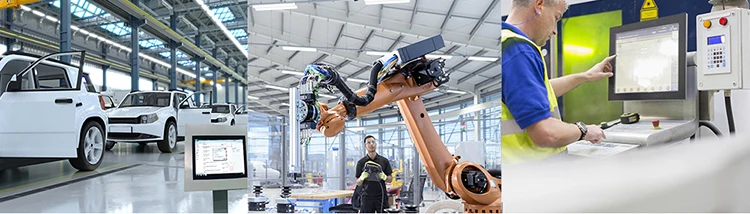

^{Application of industrial tablet computer in MES system of automobile industry}

Industrial tablets are distributed at all workshop workstations,Get the code from the ERP system, collaborate with the barcode/RFID collector, execute and feed back to the ERP system.

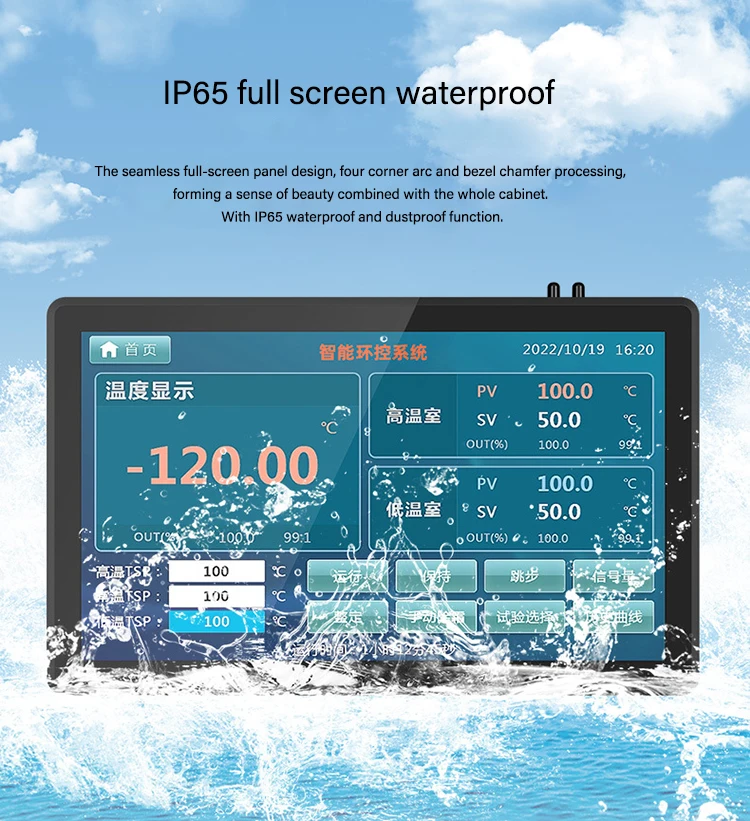

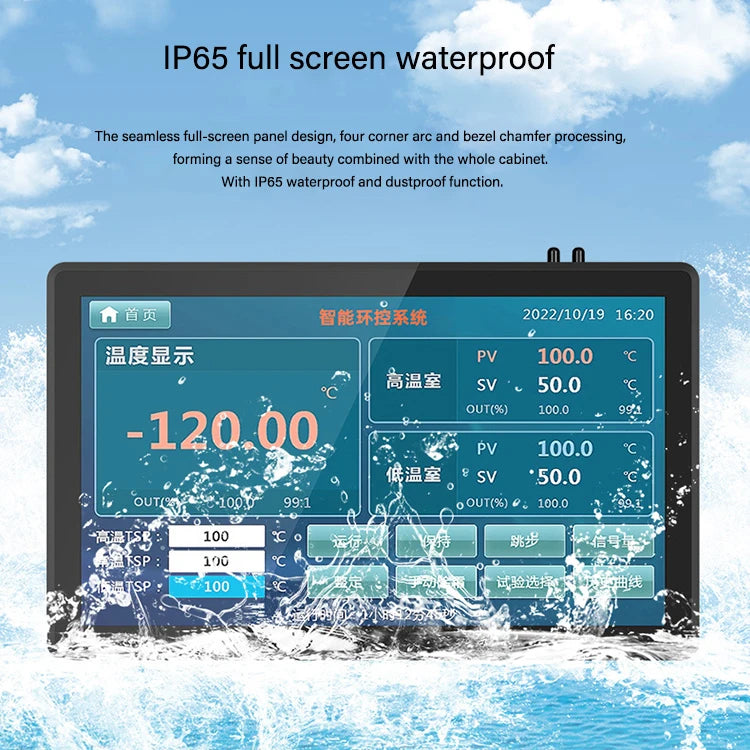

Ultra-thin, compact and fanless design, processors configured for different platforms, IP65 waterproof and dustproof protection on
the front panel, and rich IO interfaces can meet customers' field needs.

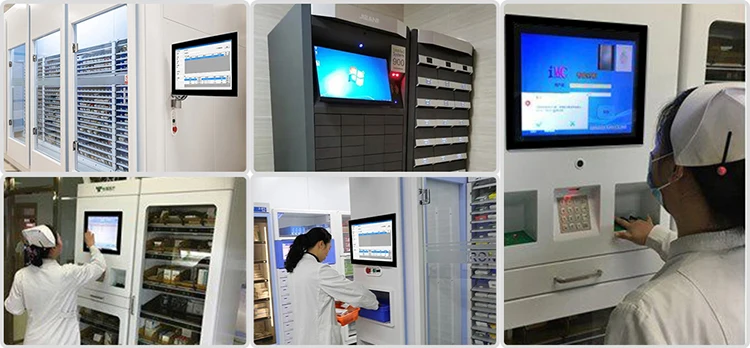

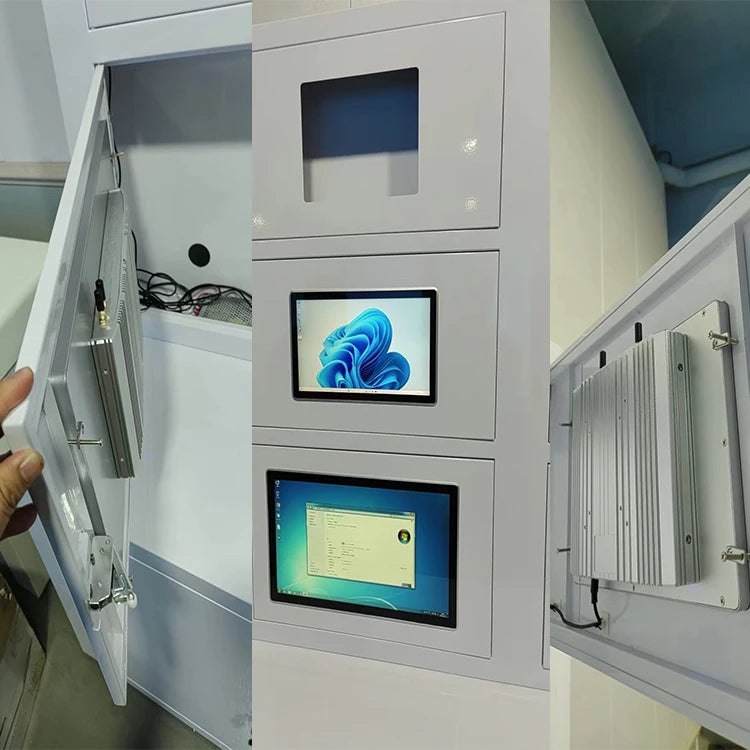

Application of industrial tablet computer in smart medicine cabinet

Now, with the wide application of industrial control equipment products in various industries. Industrial control equipment products are widely used in medical, transportation, industry, education and other industries. Through analysis and improvement, relying on the Internet of Things technology and intelligent medicine cabinet equipment, the intelligent medicine cabinet management system is developed. The application of intelligent medicine cabinet management system improves the efficiency of drug circulation and reduces the error rate of drug circulation. Smart medicine cabinet management: Improve the mode and method of drug management in the ward, enhance the work efficiency of nurses and pharmacists, and realize the fine management of drug expiry and warehouse.

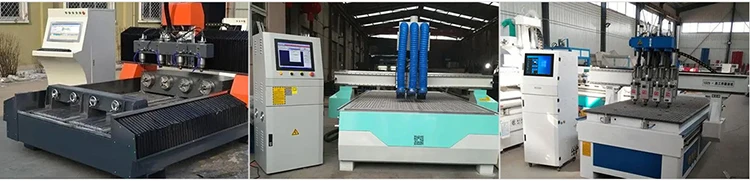

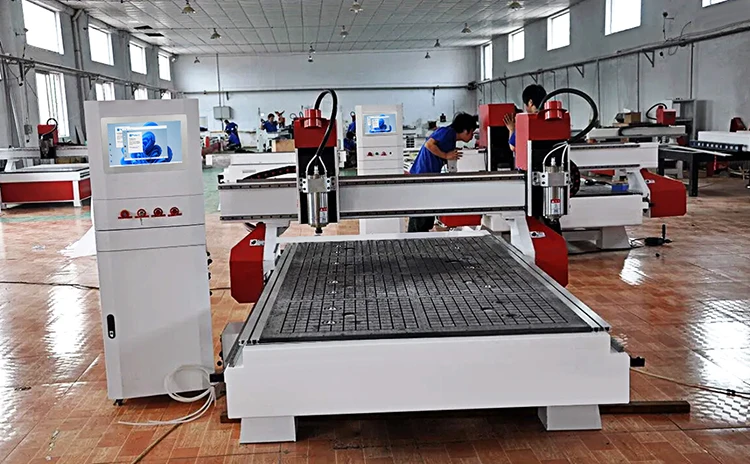

The application of industrial tablet computer in engraving machine equipment

Stone processing equipment needs to be equipped with a reliable industrial tablet computer to run visualization software and control processing tools, due to the wet and dusty working environment of the factory or machine shop, the tablet computer needs to be waterproof, resistant to various dust and other harmful substances, and the tablet computer is required to be easy to integrate, maintain and upgrade. In the production process, the on-site operator must wear latex gloves, the replacement of processing tools and the operation of stone processing equipment, so it is necessary to meet the operator wearing latex gloves operable equipment, the touch sensitive accuracy of the tablet computer has certain requirements, in addition, the tablet computer should be able to resist severe impact and vibration to ensure the stability of the operation when cutting stone.

The front panel of the industrial tablet computer is made of aluminum alloy precision machining, 5-wire resistance touch, IP66 protection grade, with excellent water and dust resistance. High performance, low power Intel Core 8th GEN series processors, well meet the harsh industrial environment applications, support 2 gigabit Ethernet/WIFI / 4G / 5G network, 2 RS232 / RS485 serial ports, on-board DDR4 memory support up to 64G, Support mSATA and M.2 storage, built in strict accordance with industrial standards, good electromagnetic compatibility, strong environmental adaptability; Fanless design, energy saving and environmental protection, meet the storage and 24 hours of continuous and reliable operation.

Application of industrial tablet computer in automatic control of tire rubber vulcanizer

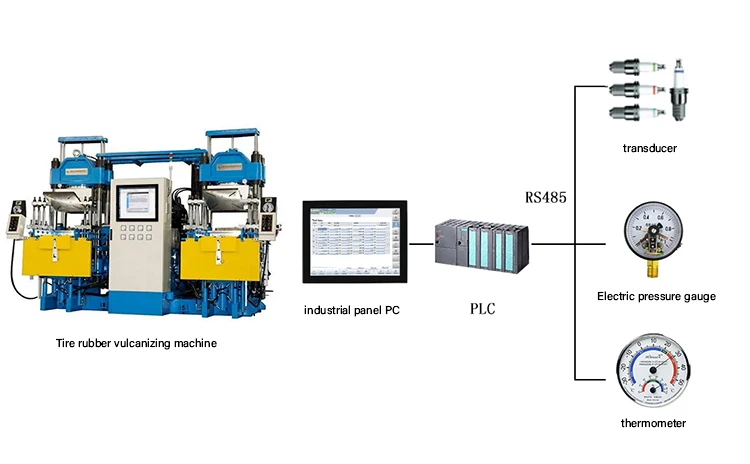

Vulcanization process is the last process in tire production, in order to strengthen the wear resistance and anti-rolling ability of the tire, it is necessary to vulcanize the tire to enhance the strength of the tire, and the effective control of the three elements of vulcanization is directly related to the quality of the final product. The traditional control system contains a large number of buttons, switches and signal lights, which need manual operation. The modern intelligent control system can automatically adjust the vulcanization process parameters, achieve the best vulcanization quality and improve production efficiency, and realize the automatic management of vulcanization operations. Application requirements: 1. The control host must have high performance and can process various data quickly and accurately 2. The site environment is harsh and requires a high level of protection. PPC series industrial tablet computer as the upper computer can complete all the control actions, monitor the vulcanization process and equipment status, receive the temperature, pressure and other data obtained by PLC, users use the configuration software to adjust the formula parameters, realize the intelligent management and control of tire vulcanization equipment, to achieve the purpose of automatic production.

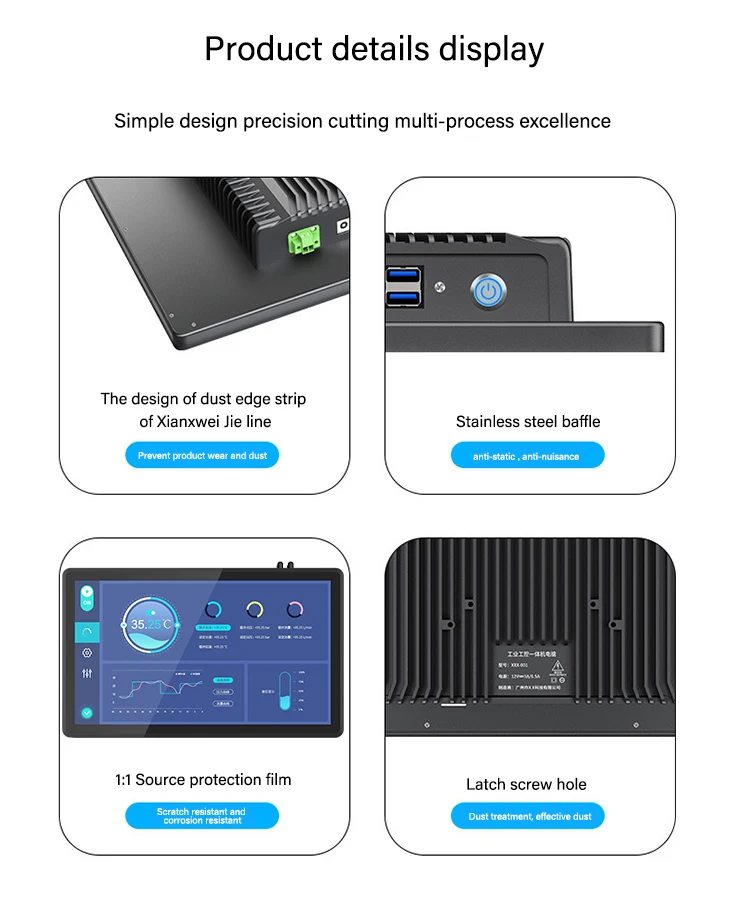

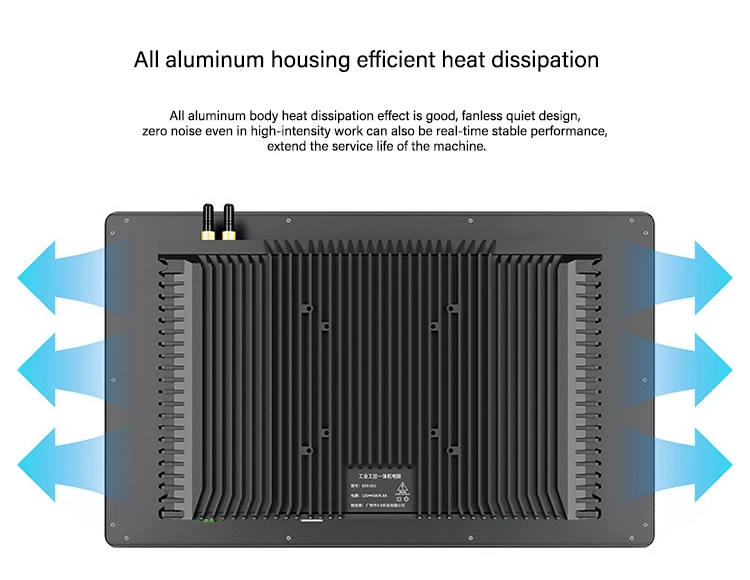

The back adopts fully enclosed strip heat sink design, durable work, adapt to a variety of environments, strong performance

Product packaging

FAQ

1.Q: What's the Minimum Order Quantity(MOQ)? A: Just 1 piece is OK. 2.Q: Are you a factory or a trading company? A: We are one of the professional computer manufacturers located in guangzhou, China. 3.Q: How about after-sales service? A: Two years warranty except man-made damage. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service. 4.Q: Can you provide DIY/OEM/ODM service? A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification. 5.Q: Can I have my logo printed on the computers? A: Sure, MOQ is 100 pieces, or surcharge is required for less quantity. 6.Q: What’s your OEM Service for my bulk order? A: 1). Put your brand on the device housing by laser printing 2). Put your own label below the device housing; 3). Supply Warranty Card in the package for free; 4). Make the booting interface with your company logo or brand for free. 7.Q: What Operating System is installed before delivery? A: Our computers support all kinds of main operating systems. Most buyers prefer Windows and Linux. Unactivated Windows 7 for testing is pre-installed. 8.Q: How long is the lead time? A: General speaking, 1-3 days for samples, 7 working days for bulk order. 9.Q: What's your payment term?

A: We offer EXW,FOB,CIF & CNF price and accept T/T, L/C,Western Union, Paypal & MoneyGram. For bulk order by T/T, Western Union and L/C, 30% deposit in advance and 70% balance before delivery. For OEM or ODM order, 50% deposit is required.

10.Q: Can you arrange the shipment? Since it's my first time to buy from China.

A: Yes, for small order, DHL/FedEx/TNT/UPS/EMS will be OK. Sea or air freight is also applicable for bulk order according to your requirement.
