SPECIFICATIONS

Chipset: Intel Q470 chipset

Display Interface: Support VGA+HDMI independent dual display

LAN interface: 7 standard RJ45 Gigabit Ethernet ports

Processor: Support IntelCometLake-SLGA1200 10th generation i9/i7/i5/i3 processors

Storage interfaces: SATA 3.0, SATA 2.0 and SATA 1.0 are supported

Structural Standards: 305mmX244mm (length x width)

System Memory: 4 dual-channel DIMM slots, supporting DDR42400/2666/2933MHZ

USB interface: 6 USB3.2 ports

application: Server/Workstation

brand name: Intel

chipset: Other

chipset manufacturer: Intel

cpu type: Intel

form factor: ATX

graphics card type: Integrated-need CPU support

hard drive interface: SATA

item condition: New

maximum ram capacity: 128 GB

memory bank: 2 DDR4 DIMM

memory channel: Double

memory type: DDR4

package: Yes

place of origin: Guangdong, China

ports: SATA,VGA ,PCI-Express X4,USB 2.0,M.2,USB 3.0,PCI-Express X1,HDMI

products status: New

socket type: Other

with cpu: Yes

Product Paramenters

Products Description

Processor:
Support IntelCometLake-SLGA1200 10th generation i9/i7/i5/i3 processors
Chipset: Intel Q470 chipset
TDP: 6W

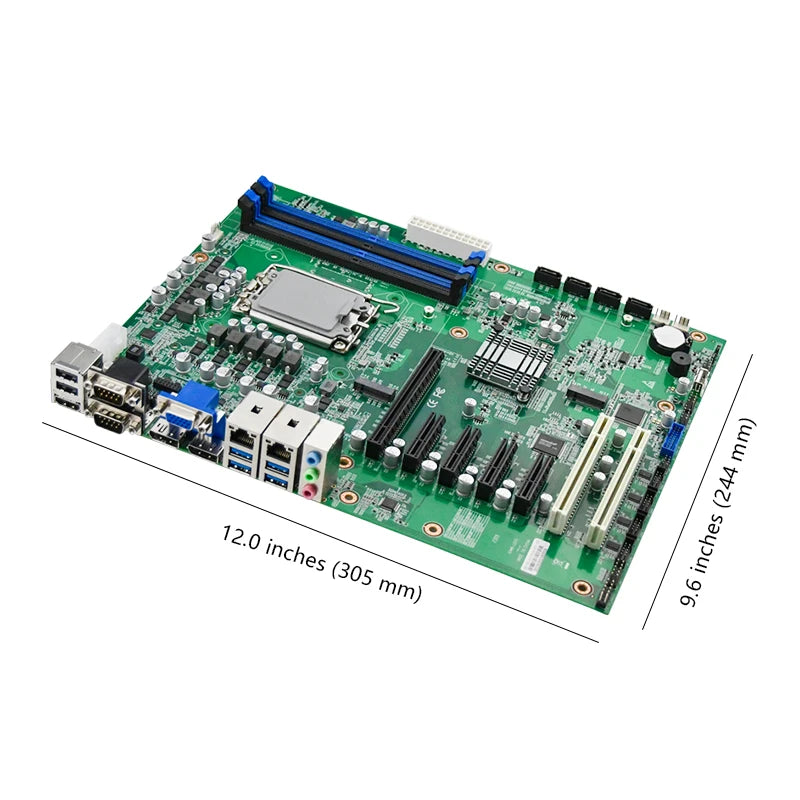

Structural Standards:
305mmX244mm (length x width)
System Memory:
4 dual-channel DIMM slots, supporting DDR42400/2666/2933MHZ
The capacity can be up to 128GB, and ECC is not supported
Display Interface:
VGA: Standard DB15 interface, the maximum resolution is 1920x1200@60Hz
HDMI: Standard HDMI interface, supporting a maximum resolution of 4096X2160@30Hz
Support VGA+HDMI independent dual display
LAN interface:
7 standard RJ45 Gigabit Ethernet ports
It uses 6 Inteli211 chips and 1 i219 network chip, and supports 10/100/1000Mbps
Support adaptive and WOL functions
Storage interfaces:
4 standard 7Pin SATA ports
SATA 3.0, SATA 2.0 and SATA 1.0 are supported
Supports AHCI, RAIDO, RAID1, RAID5, RAID10 modes
Optional version
USB interface:
6 USB3.2 ports (4 for rear IO panel interfaces, supporting USB3.2 Gen2x1 (10Gb/s)
1 x 2x10Pin pin, 2 x USB 3.2 for USB 3.2 support (5Gb/s)
7 USB 2.0 ports (2 rear IO panel ports, 2 x 2x5Pin 2.54mm pins, rotatable
Connects to 4 standard USB 2.0 ports, 1 with built-in standard USB 2.0 ports
