2026 Hot SellingAI Humanoid R obot As General-Purpose Training Tool for Technical Workshops and R obotics Seminars
H2
Sale price
$141,700.99
Regular price
$221,054.99
Skip to product information
2026 Hot SellingAI Humanoid R obot As General-Purpose Training Tool for Technical Workshops and R obotics Seminars
Sale price
$141,700.99
Regular price
$221,054.99
My friend, welcome to our store, if you need other models of this product, please contact me, I will send the product link for you to buy! WhatsApp: +86 17363884606 or email: 2474082089@qq.com ng fee. Due to the different quantity, size and delivery address of the goods, the specific shipping fee needs to be consulted by customer service on the day to ask for the logistics quotation. Thank you for your cooperation!
Product Description
Specification
|
Model
|
H2
|
H2-EDU
|
|
Height, Width and Thickness (Stand)
|
1820x456x218mm
|
1820x456x218mm
|
|
Weight (With Battery)
|
About 70kg
|
About 70kg
|
|

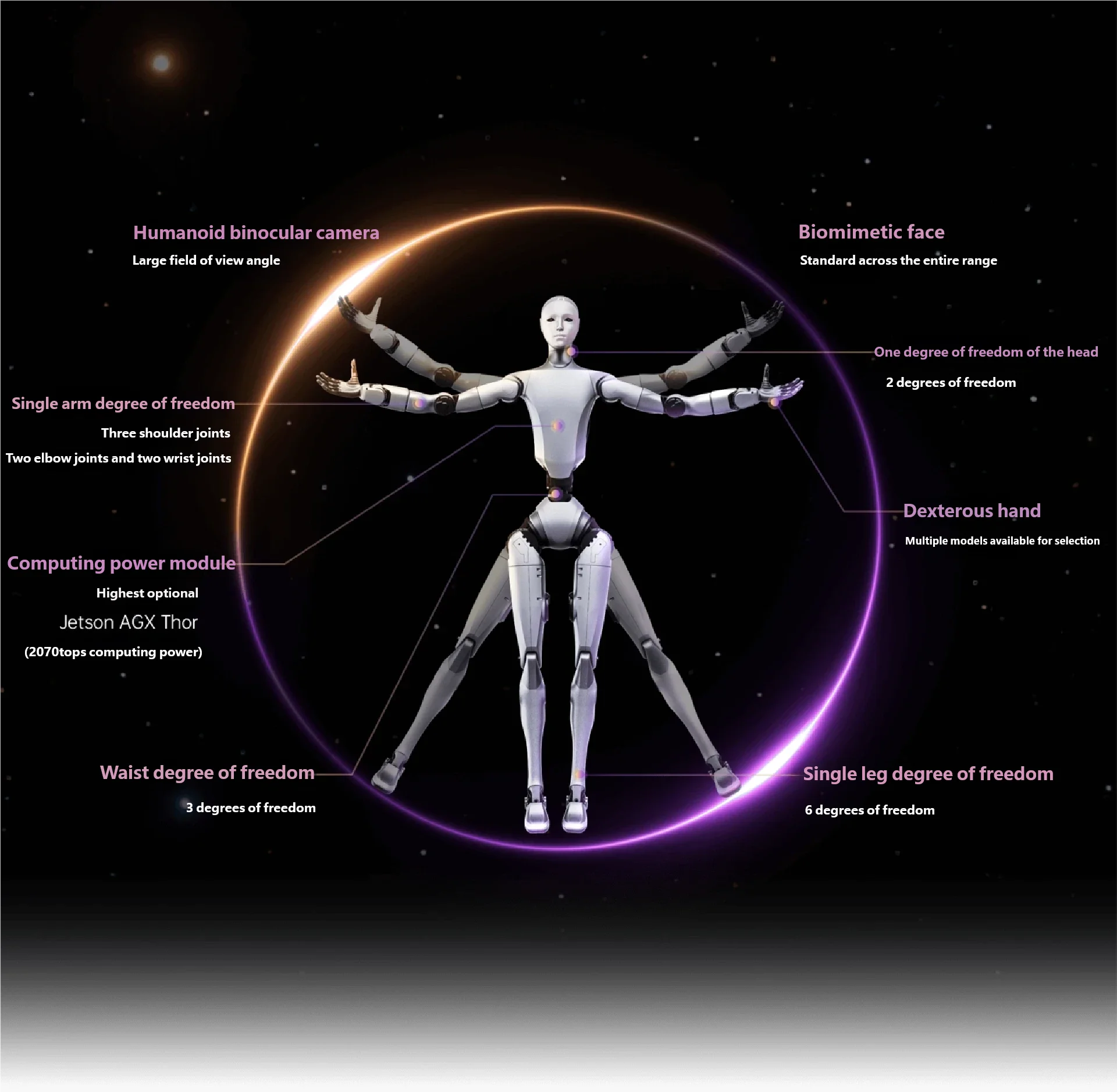

Total Degrees of Freedom (Joint Freedom）
|
31
|
31
|
|
Single Leg Degrees of Freedom
|
6
|
6
|
|
Waist Degrees of Freedom
|
3
|
3
|
|
Single Arm Degrees of Freedom
|
7
|
7
|
|
Hand Degrees of Freedom
|
2
|
2
|
|
Dexterous Hand
|
/
|
Dexterous Hand (Multiple Model Options)
|
|
Bionic Head with Facial Features
|
YES
|
YES
|
|
Joint output bearing
|
Industrial grade crossed roller bearings (high precision, high load capacity)
|
Industrial grade crossed roller bearings (high precision, high load capacity)
|
|
Joint motor
|
Low inertia high-speed internal rotor PMSM(permanent magnet synchronous motor,better response speed and heat dissipation)
|
Low inertia high-speed internal rotor PMSM(permanent magnet synchronous motor,better response speed and heat dissipation)
|
|
Maximum Torque of Arm Joint [1]
|
120N.m
|
120N.m
|
|
Maximum Torque of Leg Joint [1]
|
360N.m
|
360N.m
|
|
Arm Maximum Payload [1]
|
Peak: ~15 kg; Rated: ~7 kg
|
Peak: ~15 kg; Rated: ~7 kg
|
|
Calf + Thigh Length
|
1045mm
|
1045mm
|
|
Forearm + Upper Arm Length
|
690mm
|
690mm
|
|
Materials Used in Construction
|
Aircraft-Grade Aluminum + Titanium Alloy + High-Strength Engineering Plastics
|
Aircraft-Grade Aluminum + Titanium Alloy + High-Strength Engineering Plastics
|
|
Cooling System
|
Local air cooling
|
Local air cooling
|
|
Power Supply
|
Premium Lithium Battery with Low Internal Resistance
|
Premium Lithium Battery with Low Internal Resistance
|
|
Battery Capacity
|
15Ah(0.972kWh)
|
15Ah(0.972kWh)
|
|
Battery Voltage
|
Maximum Voltage: 75.6 V
|
Maximum Voltage: 75.6 V
|
|
Basic Computing Power
|
PC1: Intel Core i5 (Platform Capabilities)
|
PC1: Intel Core i5 (Platform Capabilities) PC2: Intel Core i7 (Custom Development)
|
|
Sensing Sensor
|
Humanoid Binocular Camera with Wide Field of View
|
Humanoid Binocular Camera with Wide Field of View
|
|
Voice Interaction
|
Array Microphone and High-Power Speaker for Voice Interaction
|
Array Microphone and High-Power Speaker for Voice Interaction
|
|
WiFi 6,Bluetooth 5.2
|
YES
|
YES
|
|
High-Power Computing Module
|
/
|
Compute Module Up to Jetson AGX Thor (2070 model)
|
|
Smart Battery (Quick Release)
|
YES
|
YES
|
|
Charger
|
YES
|
YES
|
|
Manual Controller
|
YES
|
YES
|
|
Battery Life
|
About 3h
|
About 3h
|
|
Upgraded Intelligent OTA
|
YES
|
YES
|
|
Secondary Development [2]
|
/
|
YES
|
|
Warranty Period [3]
|
8 Months
|
12 Months
|
