SPECIFICATIONS

25A 30A 35A: sine wave control

36V 48V 60V 64V: 350W/500W/1000W/1500W

Brand Name: NONE

Choice: yes

High-concerned chemical: None

Maximum Wattage: 1500W

Origin: Mainland China

Used for: electric bicycles, motorcycles, scooters, and tricycles.

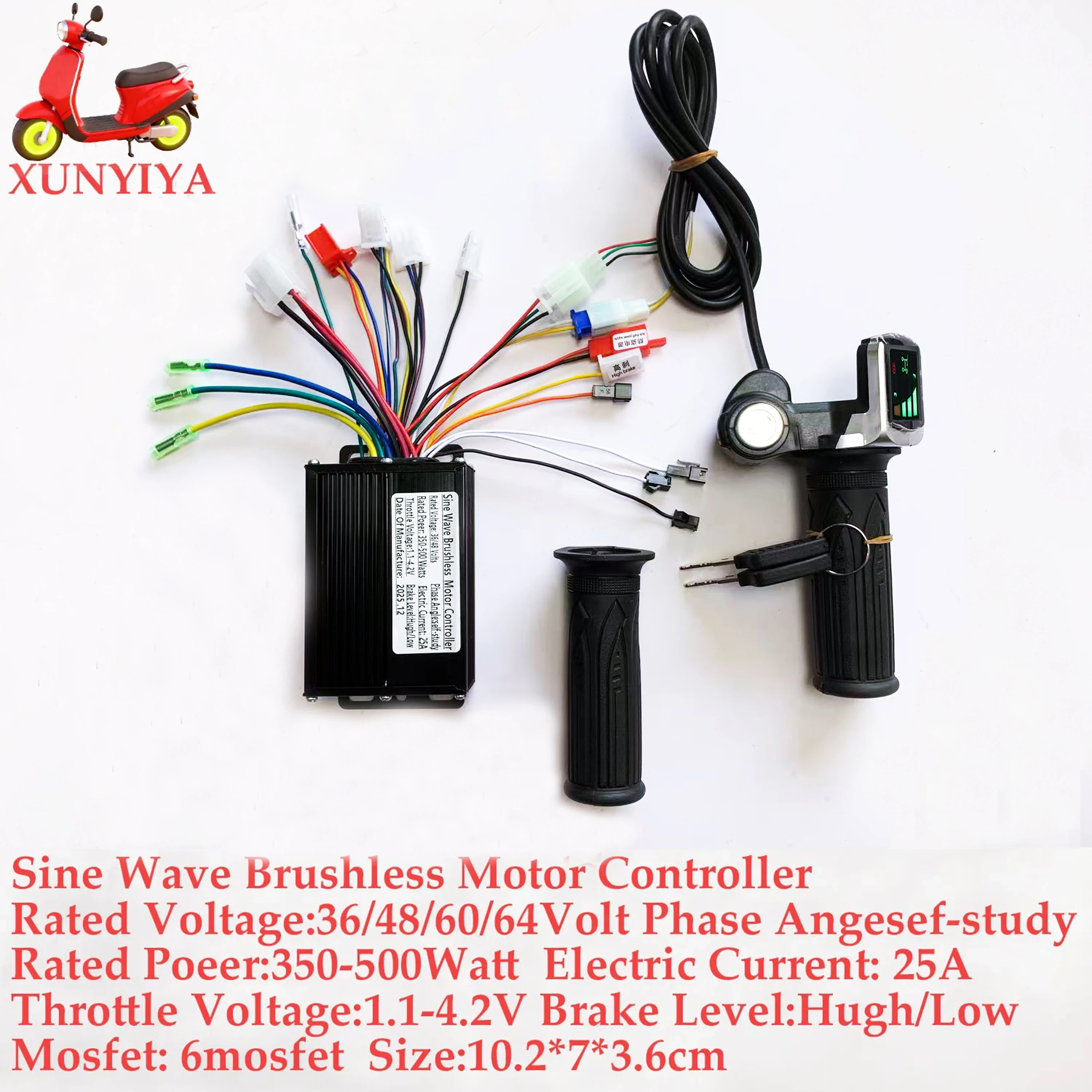

The product list includes a controller and A LCD throttle

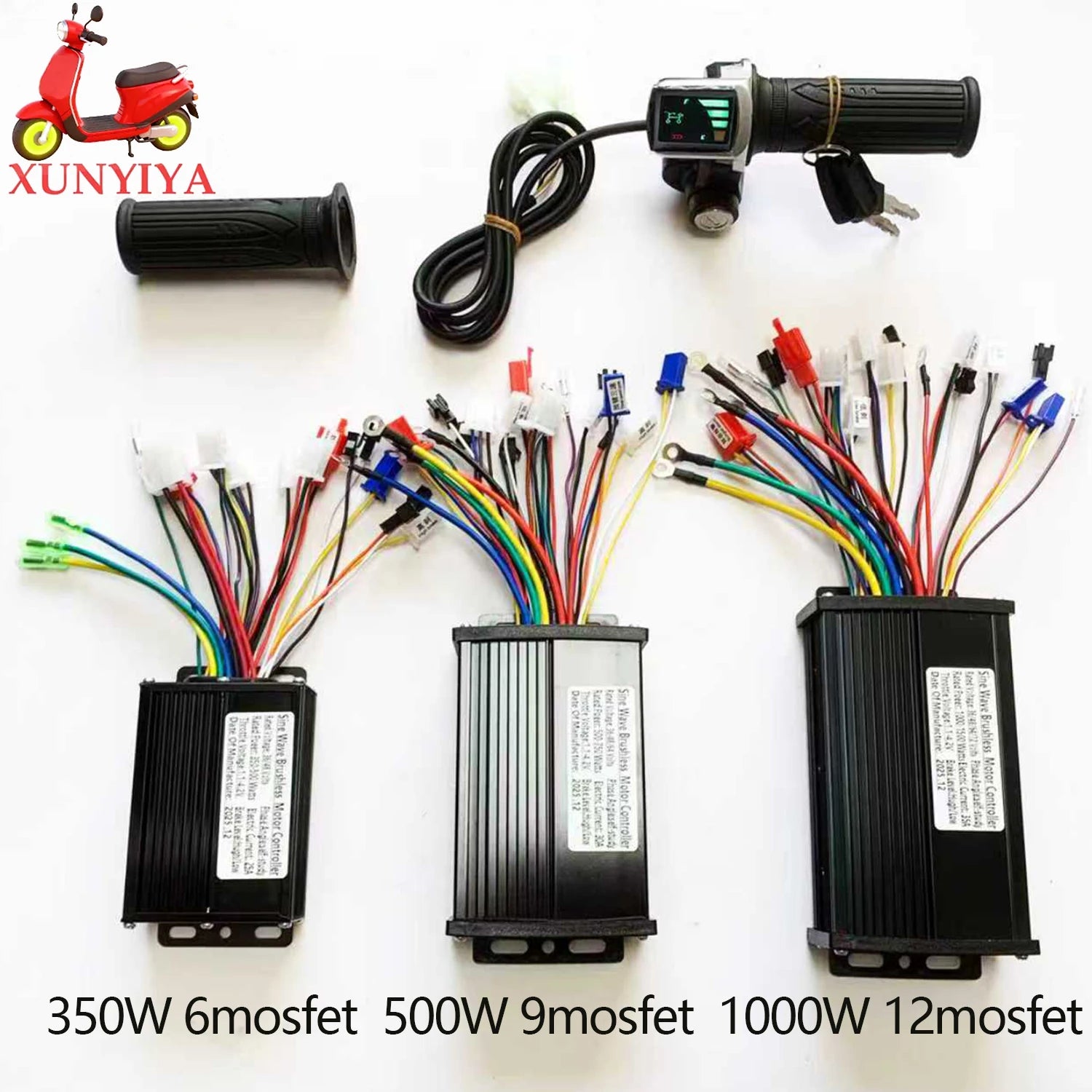

350W 36V-64V 6mos

36V-48V 350W/500W Electric Bicycle Black Gold Triple Sine Wave Silent Brushless Motor Controller, suitable for electric bicycles, lithium-ion scooters, electric skateboards, balance bikes, etc.

Specifications: Sine wave 6-tube 350W/500W 36V/48V/64V

Material: Black gold aluminum alloy

Operating Voltage: 36V-48V-64V

Rated Power: 350W-500W

Current: 25A

Dimensions: 10cm*6.5cm*3.3cm

MOSFET: HY3208

Functions: Three-speed shifting, anti-theft alarm, intelligent cruise control, analog instrument panel, high battery brake, low battery brake, Hall effect start-up, learning cable, LCD instrument panel

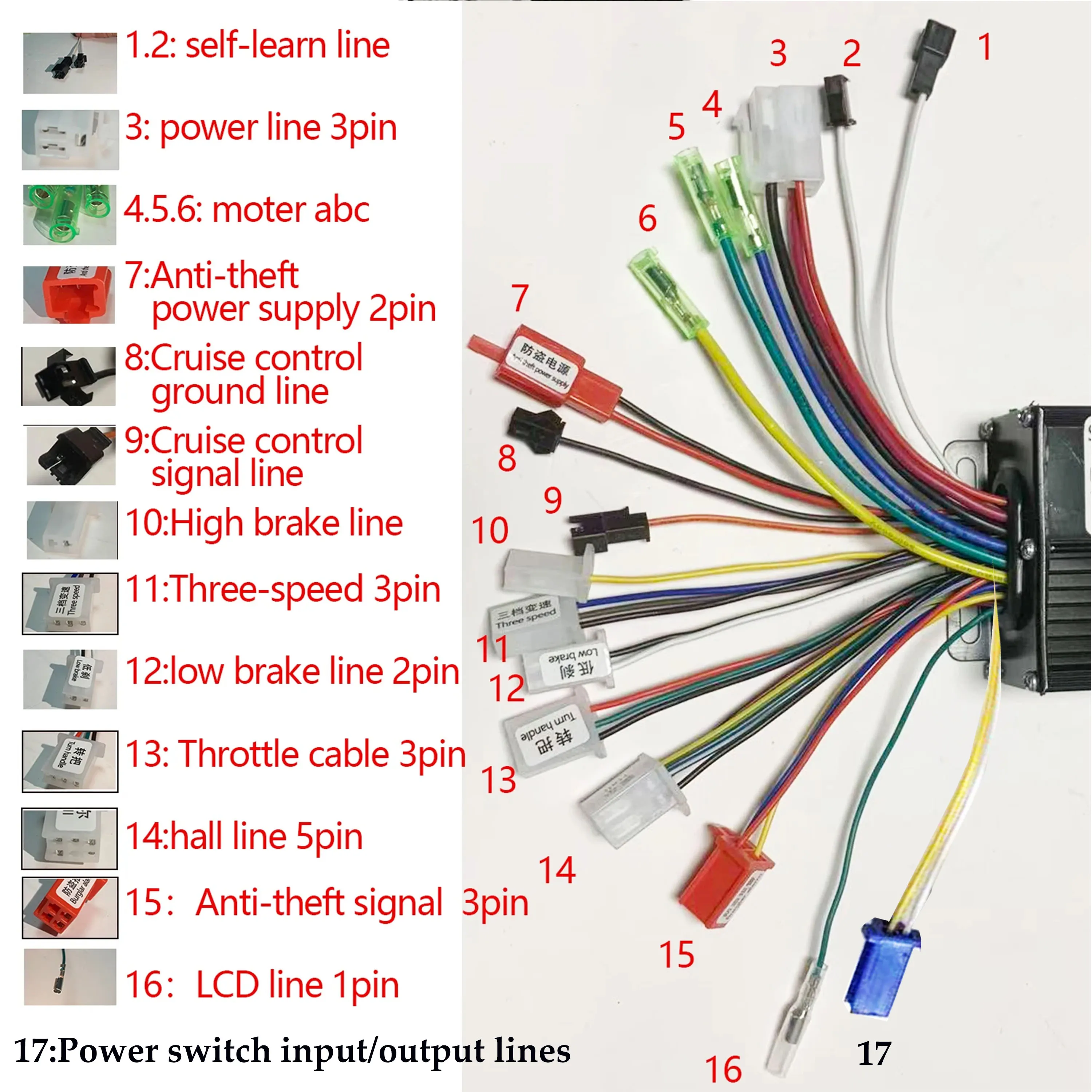

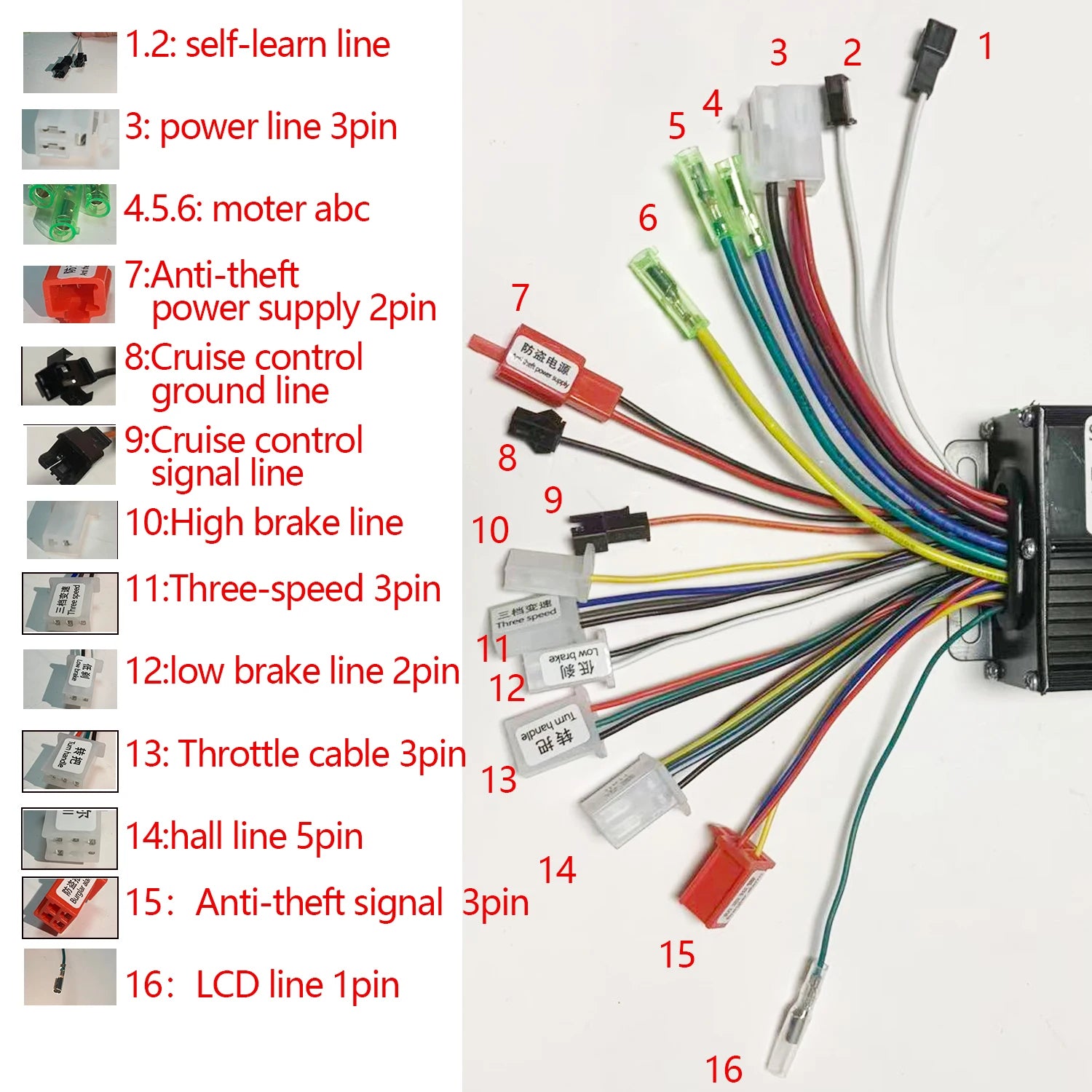

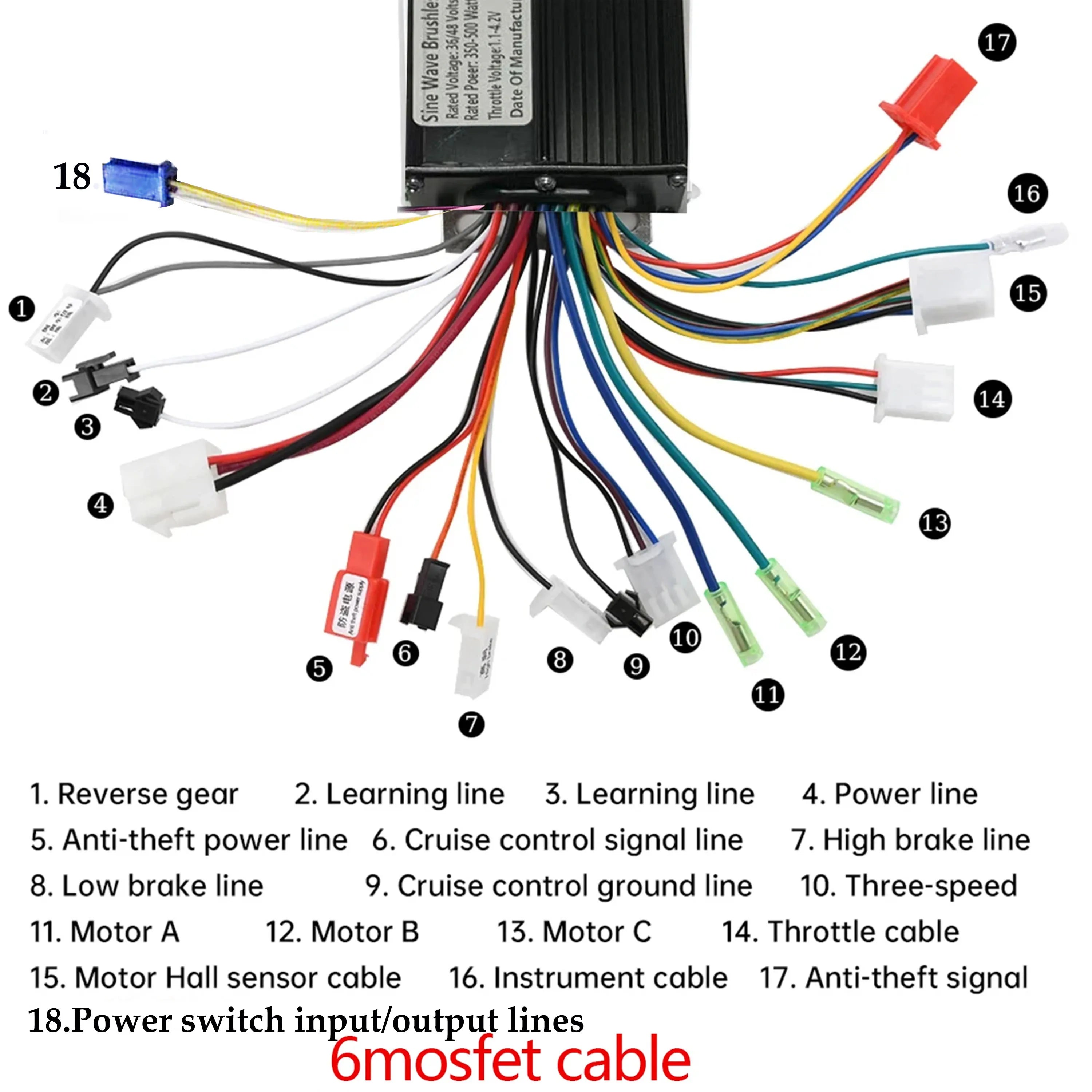

1.2: self-learn line
3: power line 3pin

4.5.6: moter abc
7:Anti-theft power supply 2pin

8:Cruise control  ground line
9:Cruise control  signal line

10:High brake line
11:Three-speed 3pin

12:low brake line 2pin

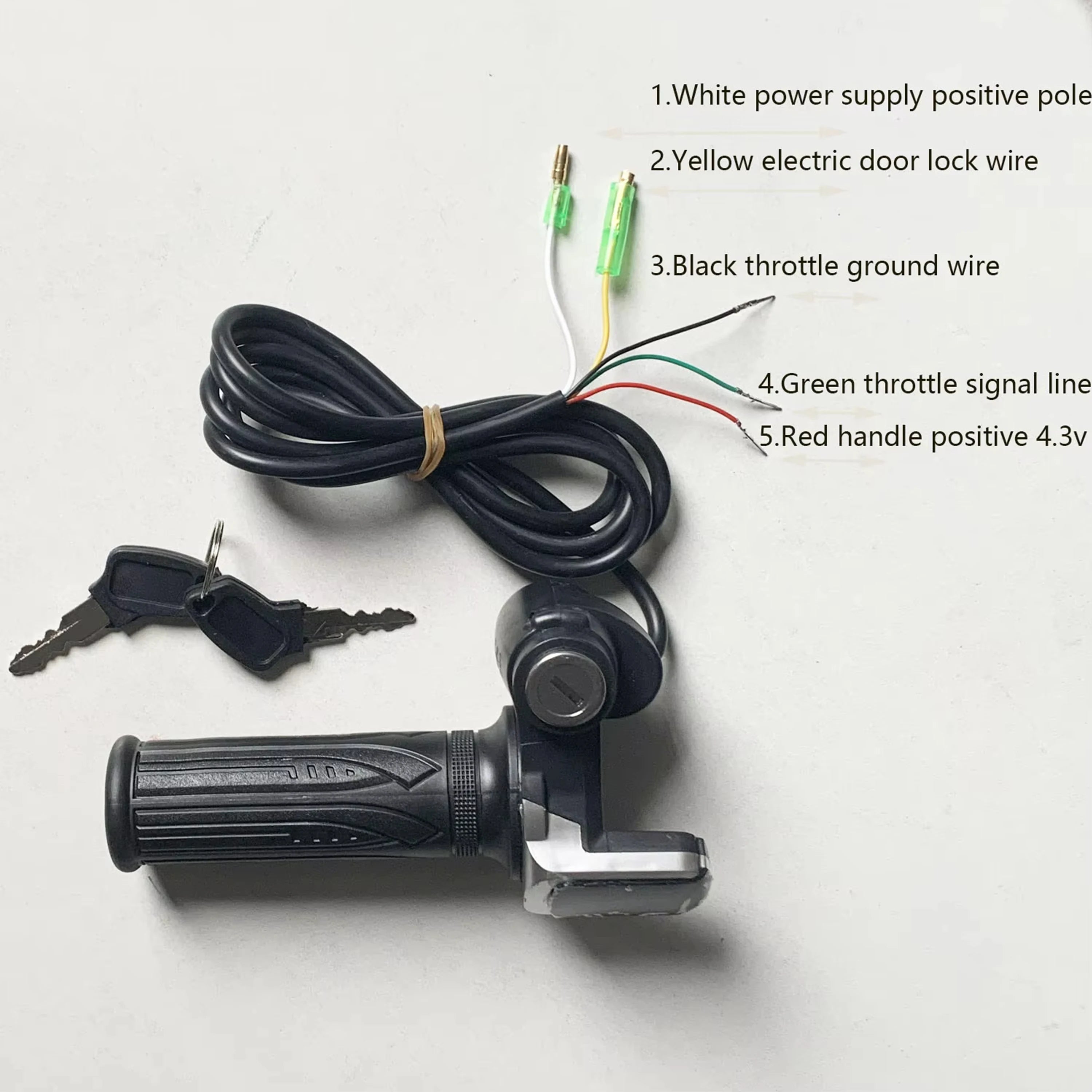

13: Throttle cable 3pin

14:hall line 5pin
15：Anti-theft signal  3pin
16：LCD line 1pin

17：Power switch input/output lines 2pin

500W 36V-64V 9mos

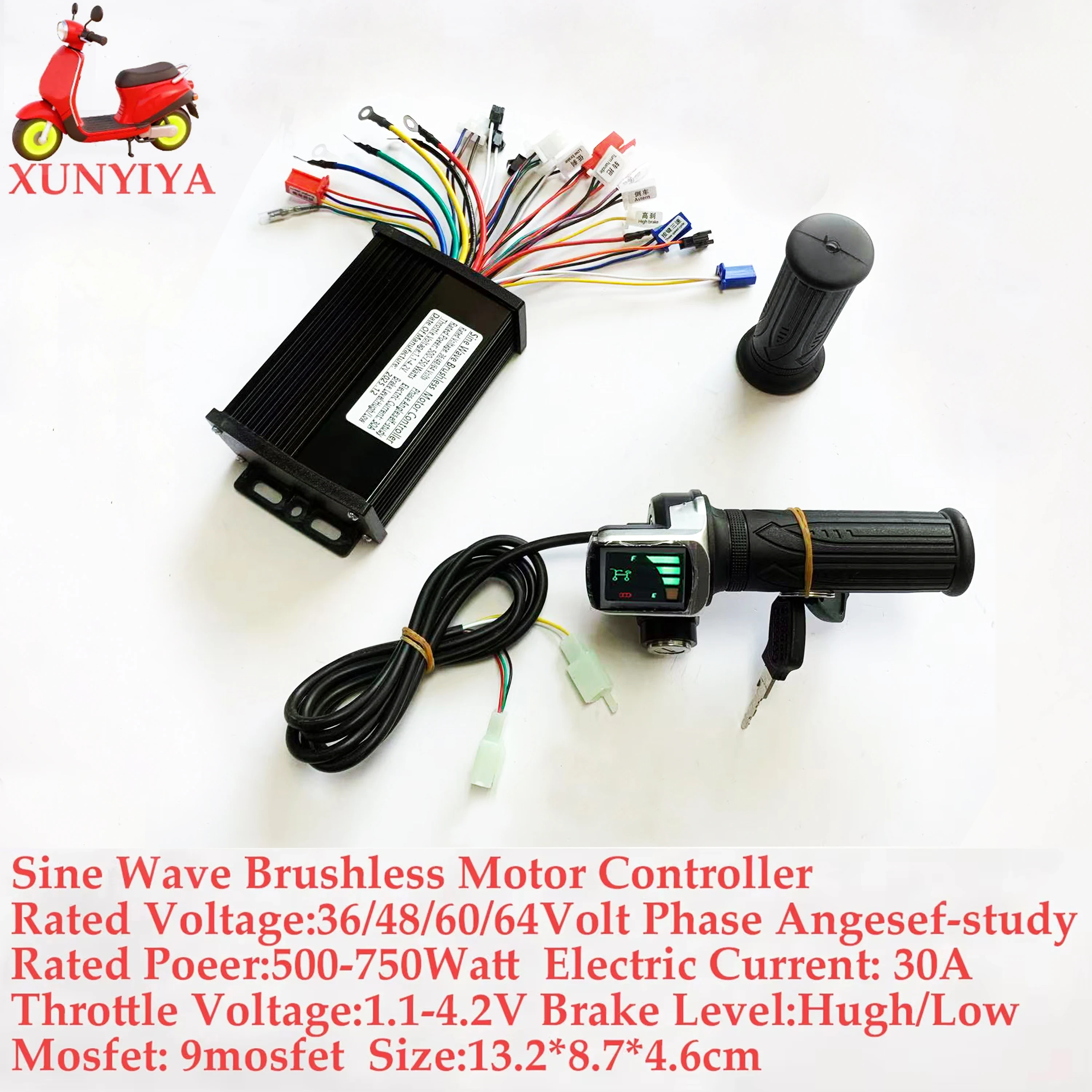

36V/48V/60V/64V 500W/750W Electric Bicycle Tri-Mode Sine Wave Silent Brushless Motor Controller, suitable for electric motorcycles, electric bicycles, lithium-ion scooters, electric skateboards, balance bikes, etc.

Specifications: Sine wave 9-tube 500/750W 36V 48V 60V 64V

Material: Black aluminum alloy

Operating Voltage: 36V-64V universal

Rated Power: 500W/750W

Current: 30A

Dimensions: 13*8.7*4.6cm 1000W 36V-64V 12mos

MOSFET: HY3208

Functions: Three-speed shifting, anti-theft alarm, reverse, intelligent cruise control, analog instrument panel, LCD instrument panel, high battery brake, low battery brake, Hall effect start-up, learning cable

1000W 36V-64V 12mos:

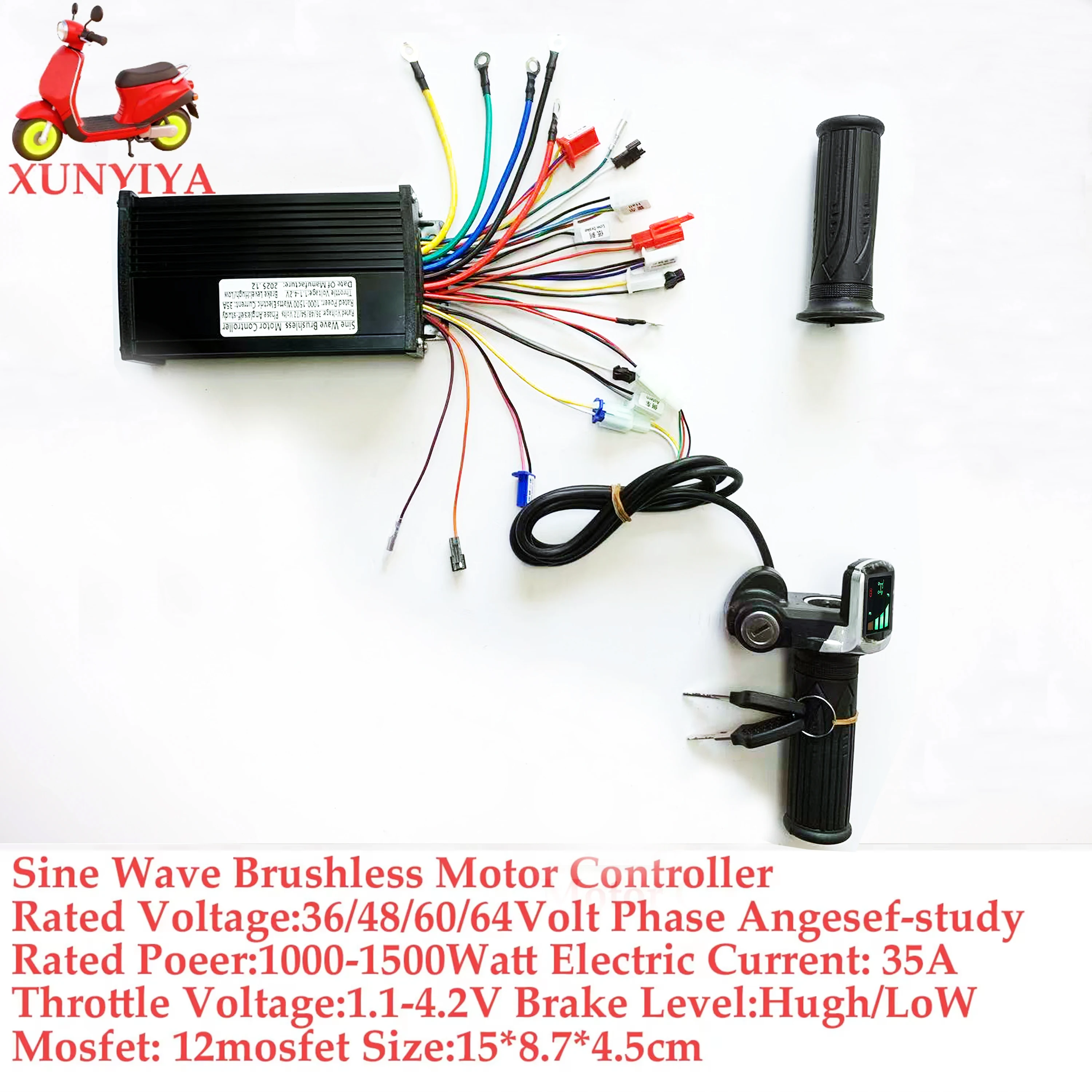

Sine wave 1000W/1500W 36V/48V/60V/72V black gold tri-mode silent brushless motor controller for electric bicycles, suitable for electric bicycles, lithium battery scooters, skateboards, balance bikes, modified vehicles, electric motorcycles, etc.

Specifications: Sine wave 1000W/1500W 48V/60V/64V/72V

Material: Black aluminum alloy

Operating voltage: 36V-72V peak

Undervoltage: 32V

Rated power: 1000W-1500W

Current: 35A

Housing dimensions: 15*8.7*4CM

MOSFET: HY3410

Functions: Three-speed manual shifting, three-speed automatic shifting, reverse, anti-theft alarm, intelligent cruise control, analog instrument panel, LCD instrument panel, high battery brake, low battery brake, Hall effect start-up, learning cable

（500W 36V-64V 9mos 1000W 36V-64V 12mos）Line Diagram

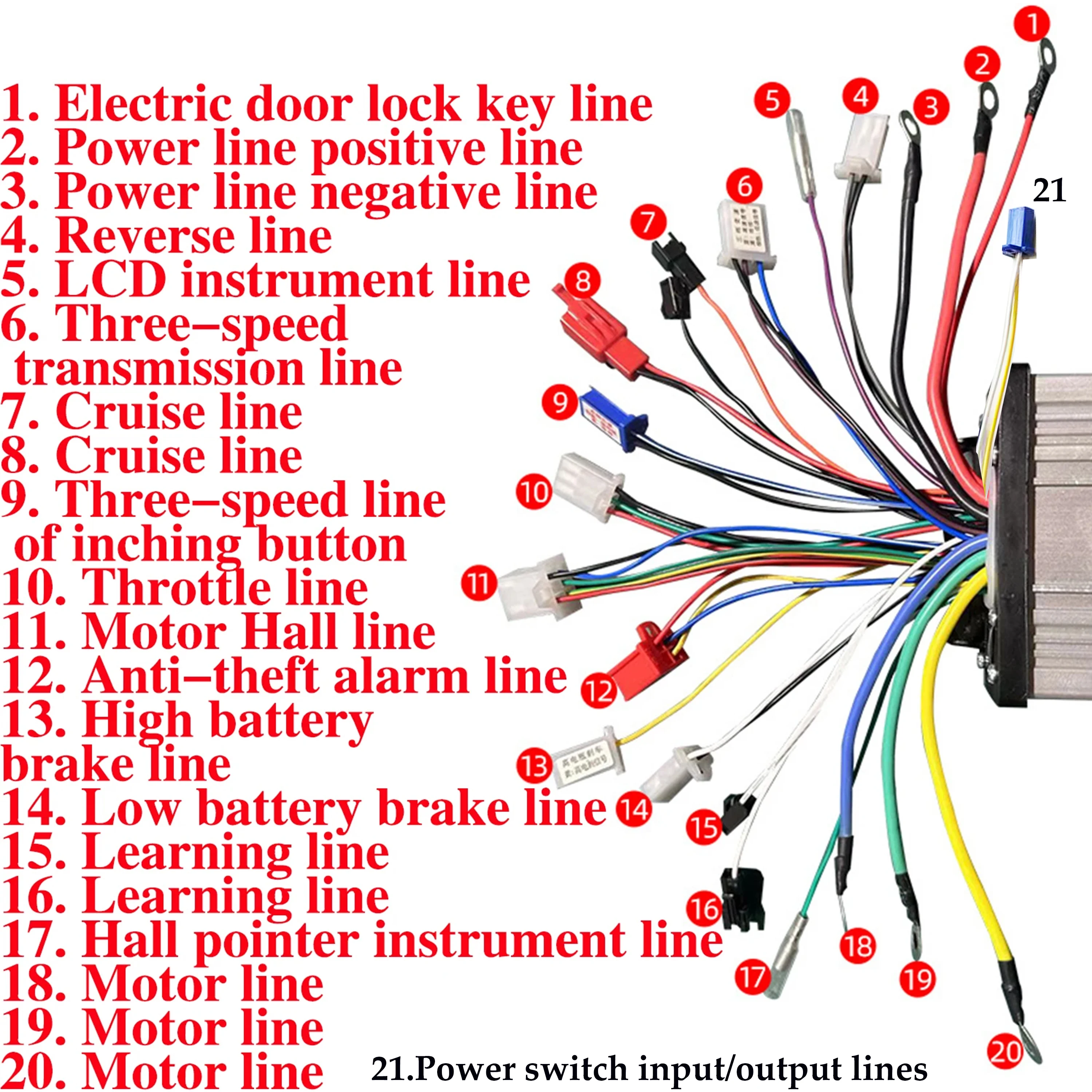

1. Electric door lock key line

2. Power line positive line

3. Power line negative line

4. Reverse line

5. LCD instrument line

6. Three-speed transmission line

7. Cruise line

8. Cruise line

9. Three-speed line of inching button

10. Throttle line

11. Motor Hall line

12. Anti-theft alarm line

13. High battery brake line

14. Low battery brake line

15. Learning line

16. Learning line

17. Hall pointer instrument line

18. Motor line

19. Motor line

20. Motor line

21.Power switch input/output lines

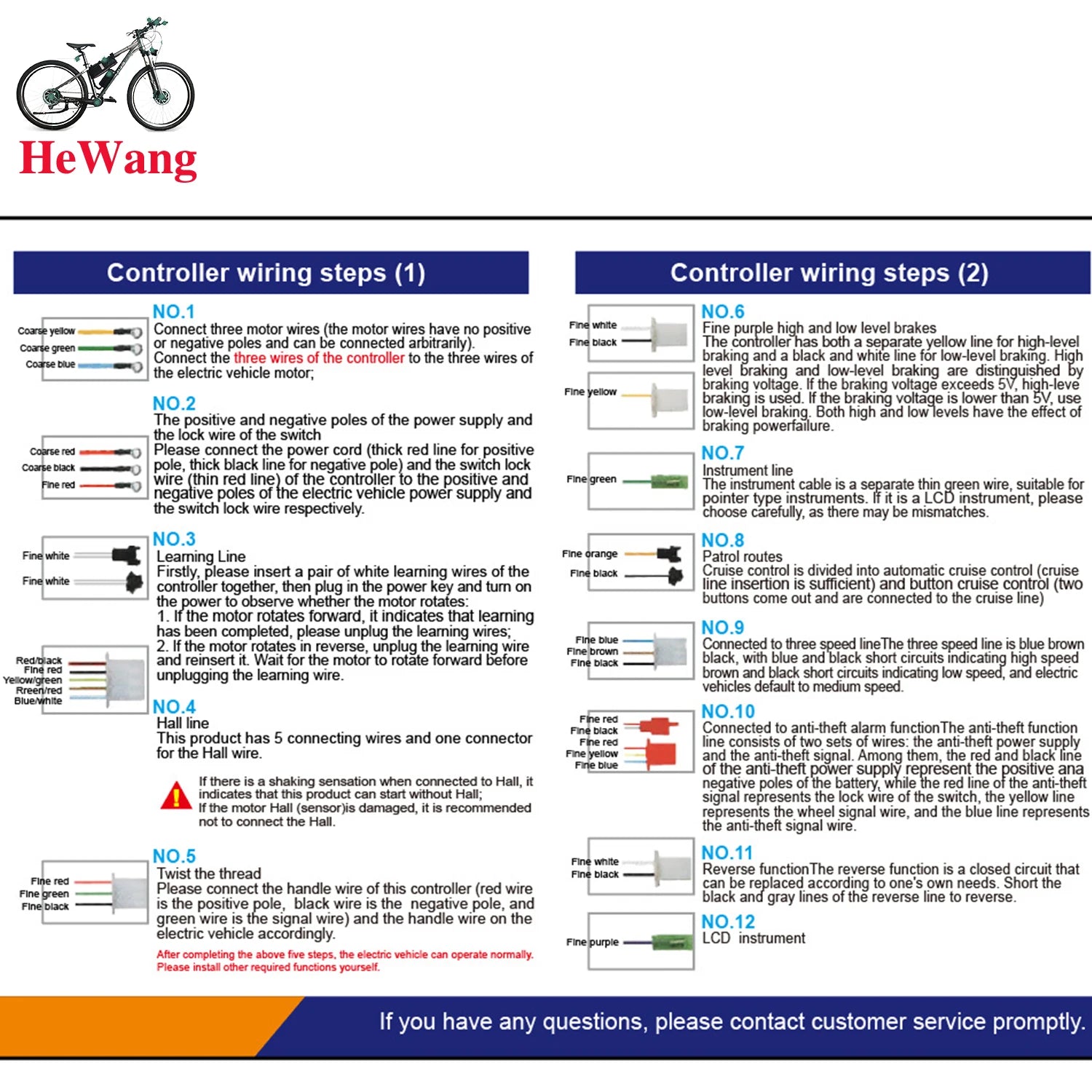

NO.1

Connect three motor wires.(the motor wires have no positive or negative poles and can be connected arbitrarily).Connect the three wires of the controller to the three wires of the electric vehicle motor,

NO.2

 The positive and negative poles of the power supply and the lock wire of the switch Please connect the power cord (thick red line for positive pole, thick black line for negative pole) and the switch lock wire (thin red line) of the controller to the positive and negative poles of the electric vehicle power supply and the switch lock wire respectively.

NO.3

Learning Line Firstly, please insert a pair of white learning wires of the controller together, then plug in the power key and turn on the power to observe whether the motor rotates:1. if the motor rotates forward, it indicates that learning has been completed, please unplug the learning wires,2. if the motor rotates in reverse, unplug the learning wire and reinsert it. Wait for the motor to rotate forward before unplugging the learning wire.

NO.4

Hall line This product has 5 connecting wires and one connector for the Hall wire.

If there is a shaking sensation when connected to Hall, it indicates that this product can start without Hall;If the motor Hall (sensor)is damaged, it is recommended not to connect the Hall.

NO.5

Twist the thread Please connect the handle wire of this controller (red wire is the positive pole, black wire is the negative pole, and green wire is the signal wire) and the handle wire on the electric vehicle accordingly.

After completing the above five steps, the electric vehicle can operate normally.

Please install other required functions yourself.

NO.6

Fine purple high and low level brakes The controller has both a separate yellow line for high-level braking and a black and white line for low-level braking. High level braking and low-eve braking are distinguished by braking voltage. if the braking voltage exceeds 5v high-level braking is used. if the braking voltage is lower than 5v. use low-level braking. Both high and low levels have the effect of braking power failure.

NO.7

Instrument line The instrument cable is a separate thin green wire, suitable for pointer type instruments. if it is a LCD instrument. please choose carefully, as there may be mismatches.

NO.8

Patrol routes Cruise control is divided into automatic cruise control (cruise line insertion is sufficient) and button cruise controller (two buttons come out and are connected to the cruise line)

NO.9

Connected to three speed line The three speed line is blue brown black, with blue and black short circuits indicating high speed brown and black short circuits indicating low speed, and electric vehicles default to medium speed.

NO.10

Connected to anti-theft alarm function The anti-theft function line consists of two sets of wires: the anti-theft power supply and the anti-theft siqnal . Among them, the red and black line of the anti-theft power supply represent the positive ananegative poles of the battery, while the red line of the anti-the fsignal represents the lock wire of the switch, the yellow liner represents the wheel signal wire, and the blue line represents the anti-theft signal wire.

NO.11

Reverse function The reverse function is a closed circuit that can be replaced according to one's own needs. Short the r Windows black and gray lines of the reverse line to reverse

NO.12

LCD instrument
