36V 10S4P 20Ah 18650 Battery Pack 250-750W 30A BMS 36v Lithium Li-ion Battery Electric Scooter 42v Electric Scooter Battery
XT60
Sale price
$90.99
Regular price
$93.99
Skip to product information
36V 10S4P 20Ah 18650 Battery Pack 250-750W 30A BMS 36v Lithium Li-ion Battery Electric Scooter 42v Electric Scooter Battery
Sale price
$90.99
Regular price
$93.99
SPECIFICATIONS
Application: Electric Bicycle,E-scooter,EV,RV,Trolling Motor,Home Energy
Brand Name: DAWEIKALA
Certification: CE,RoHS,KC
Connection: Others
High-concerned chemical: None
Model Number: 36V20Ah
Nominal Capacity: 20000mAh
Origin: Mainland China
Rated Voltage: 36V
Size: 380mm*70mm*40mm
Type: Li-Ion
Voltage: 36V
Weight: 2kg
Specifications:
-

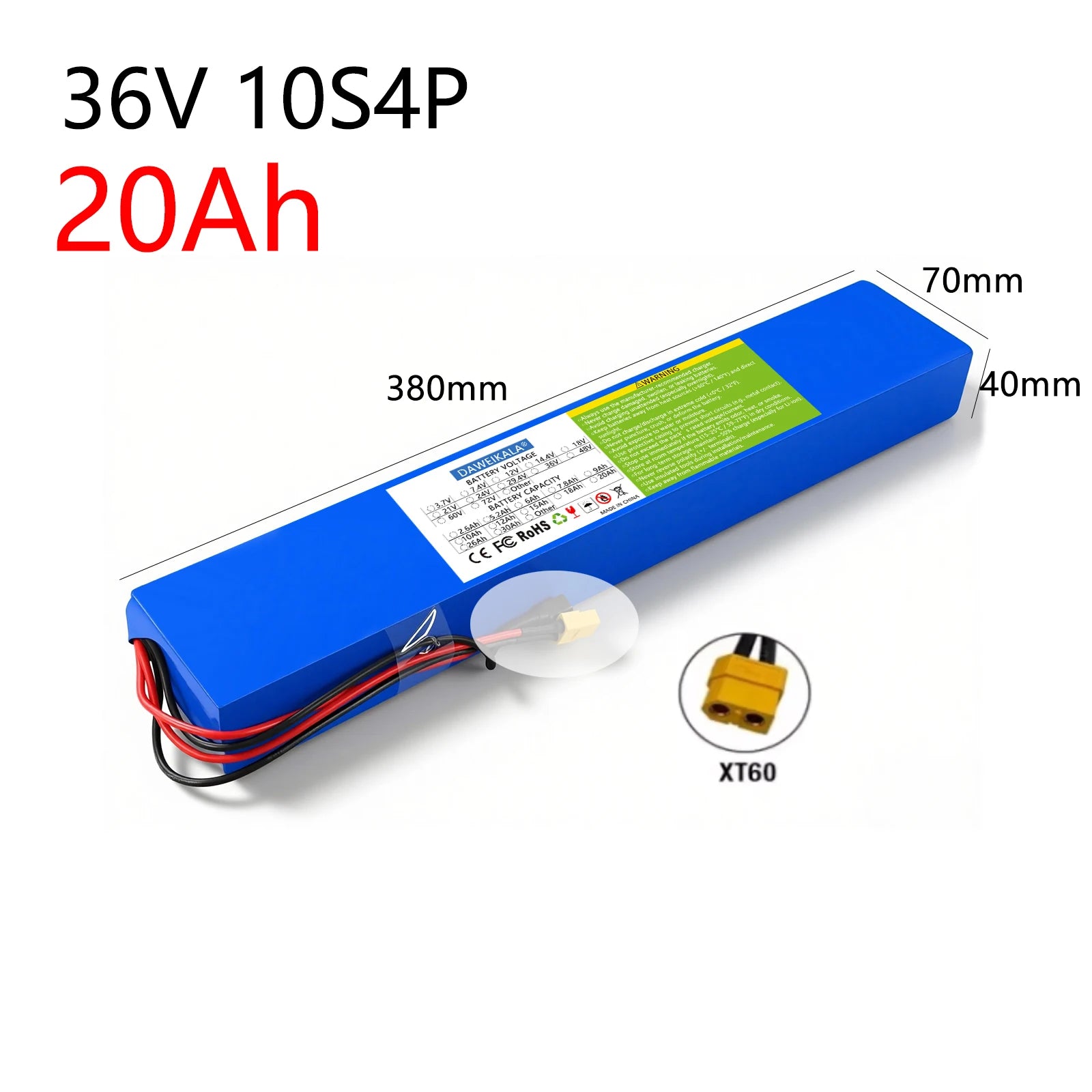

Model: 18650-10S4P
-
Cell count: 40 pieces(10S4P)
-
Nominal voltage: 36V
-
Charge voltage: 42V
-
Typical capacity: 20Ah
-
Rated power: 1000W
-
BMS function:Overcharge, overdischarge, overcurrent, short circuit protection.
-

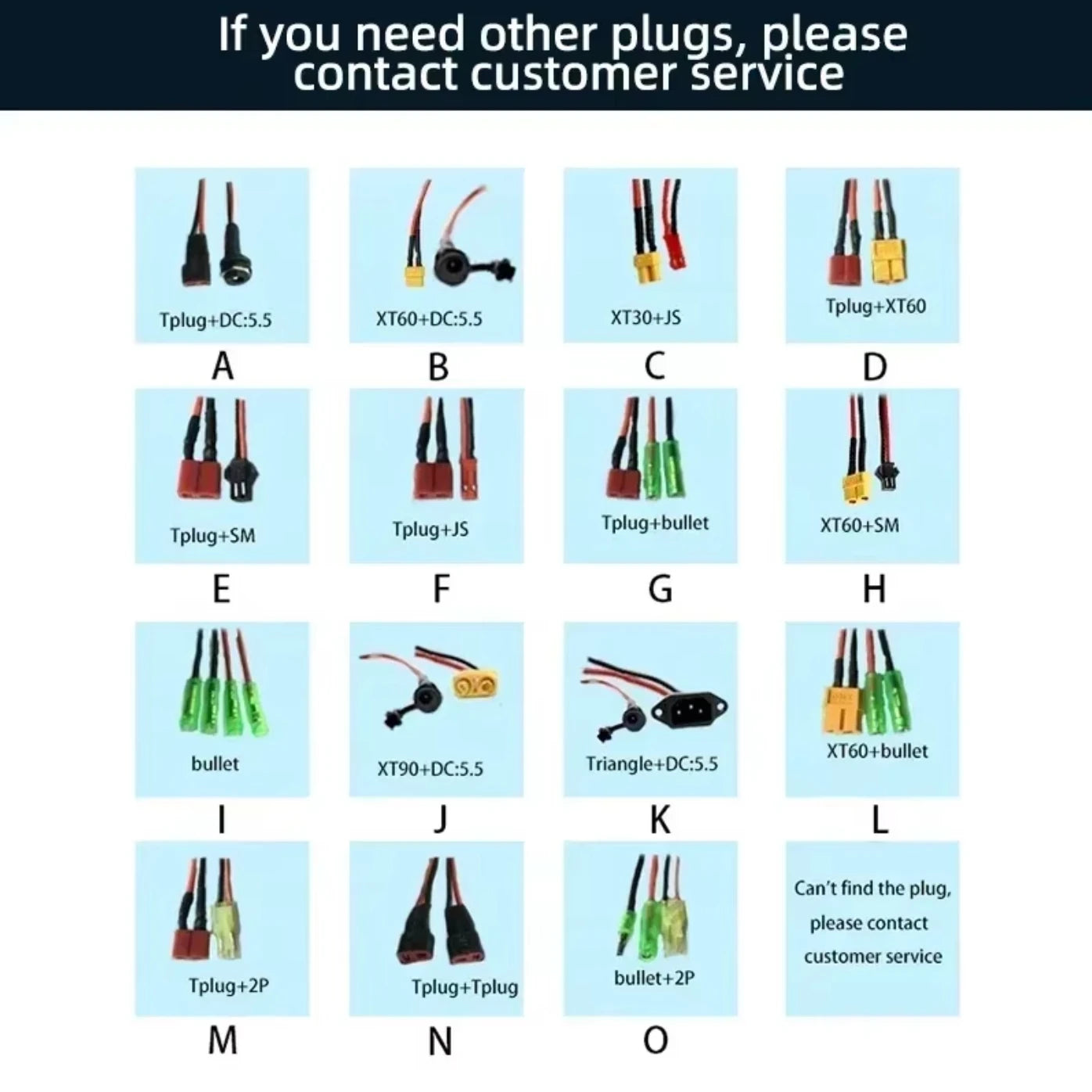

Connector: T plug for discharge and DC5.5*2.1 for charge
-
Package: heat shrinkable PVC, random color
-
Output voltage range: 28V-42V
-
Discharge cut-off voltage: 28V
-
Charge cut-off voltage: 42V
-
Charge method: CC-CV
-
Max. Charge current: 5A
-
Charge temperature: 0-45 ° C
-
Discharge temperature: -10-60 ℃
-
Storage temperature: -20-45 ° C (3 months)
-
Cycle life: 80% DOD after 1000 cycles
-

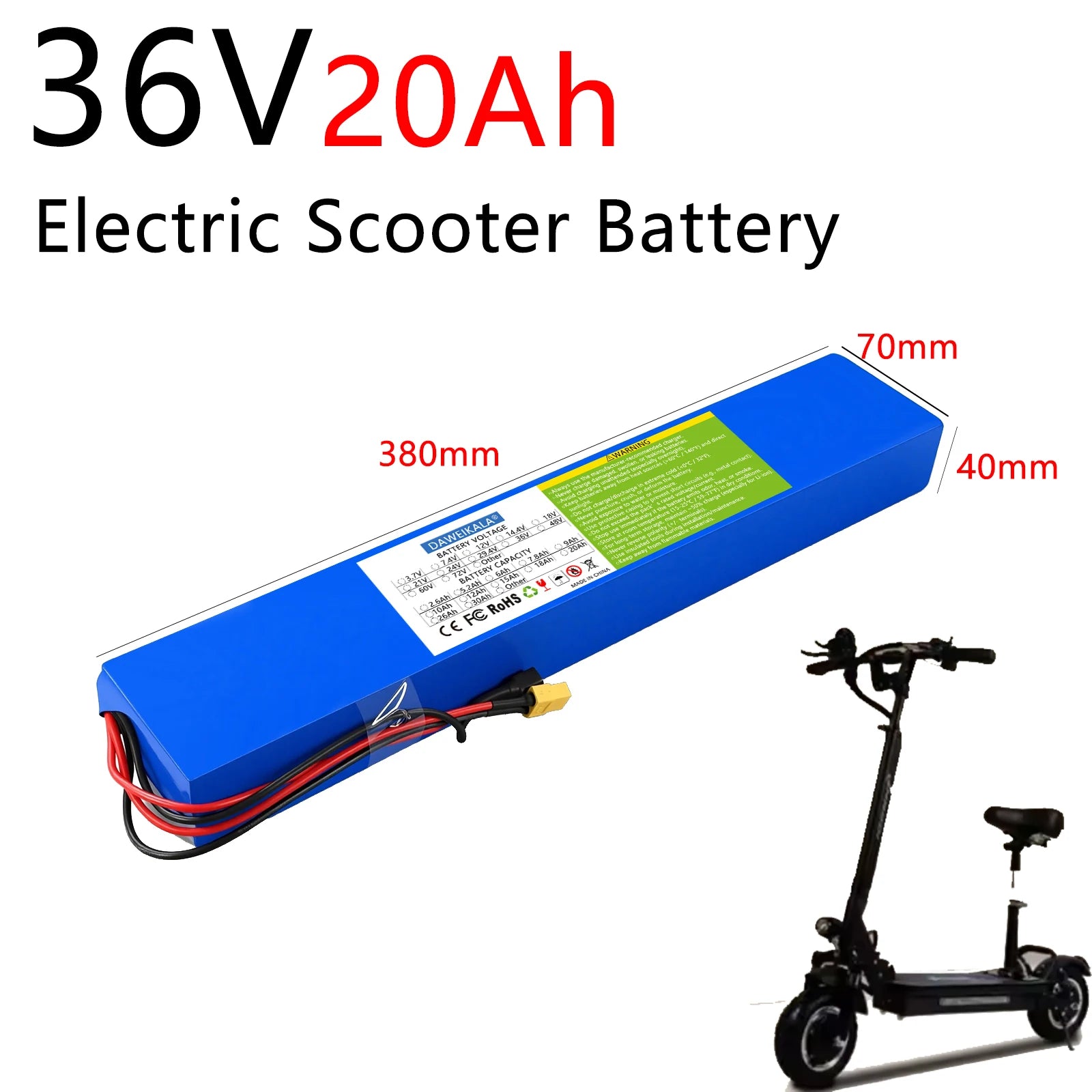

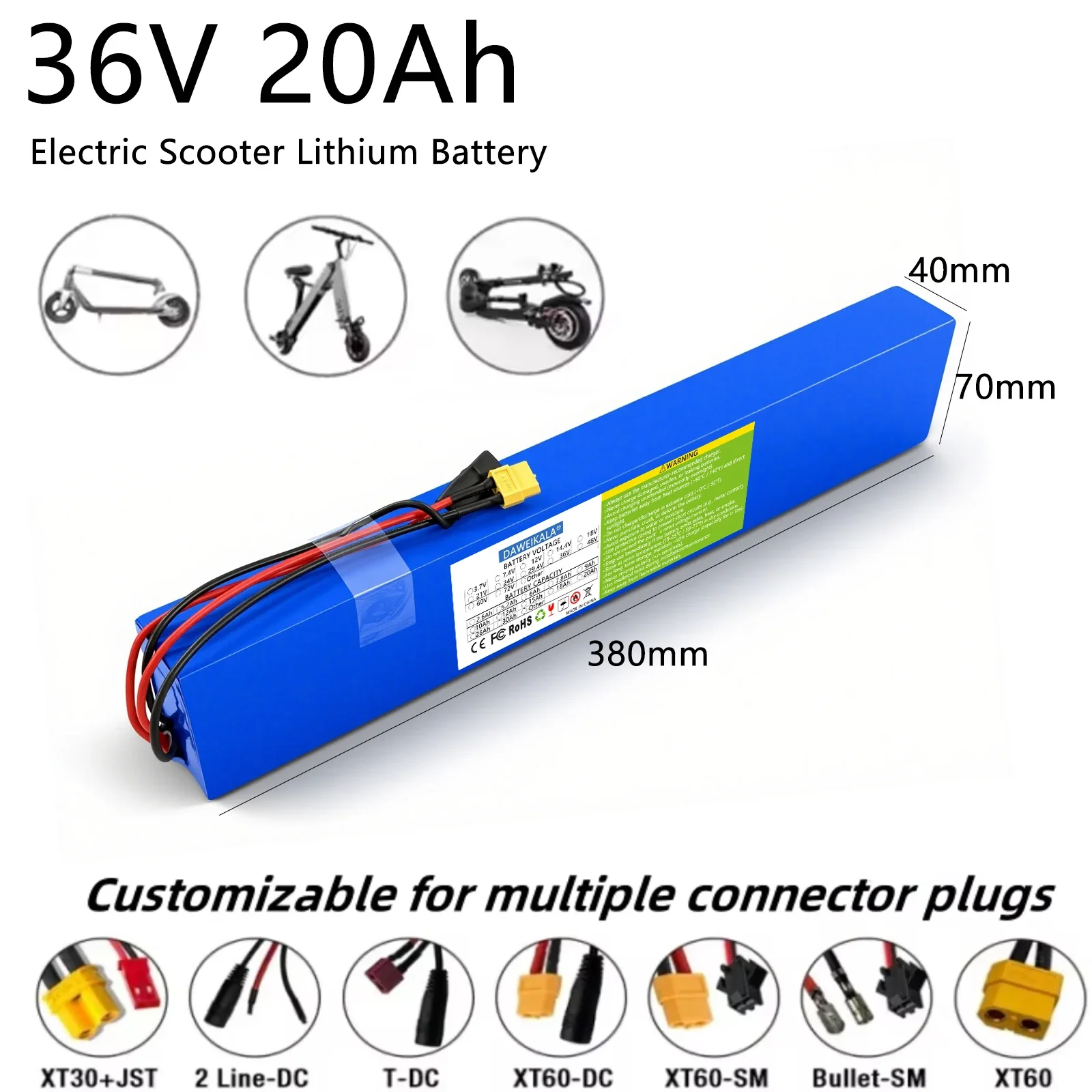

Size: 380 * 70 * 40 mm(±3mm)
