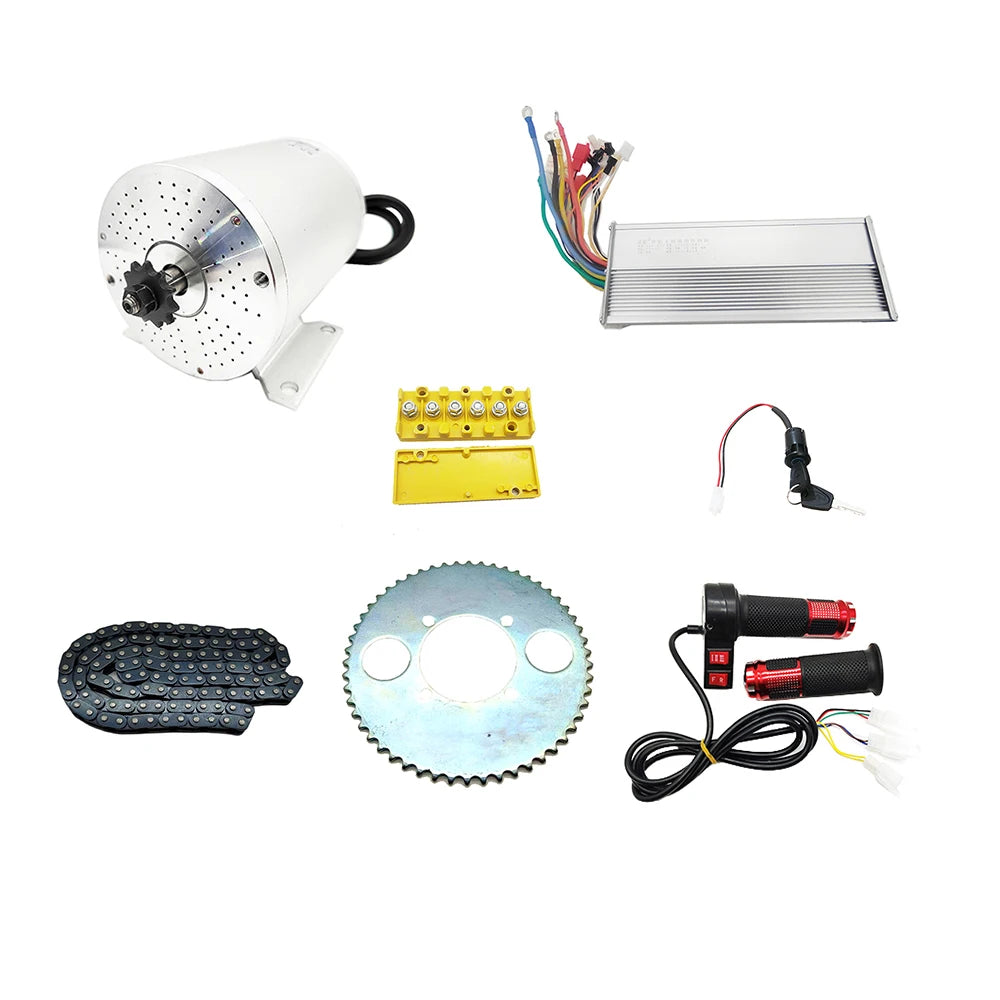

SPECIFICATIONS

Brand Name: NONE

Design: Brushless

Origin: Mainland China

Rated power: 2000W

Voltage: 48V,48V/60V

Wattage: > 400w

brushless motor: YES

about motor：

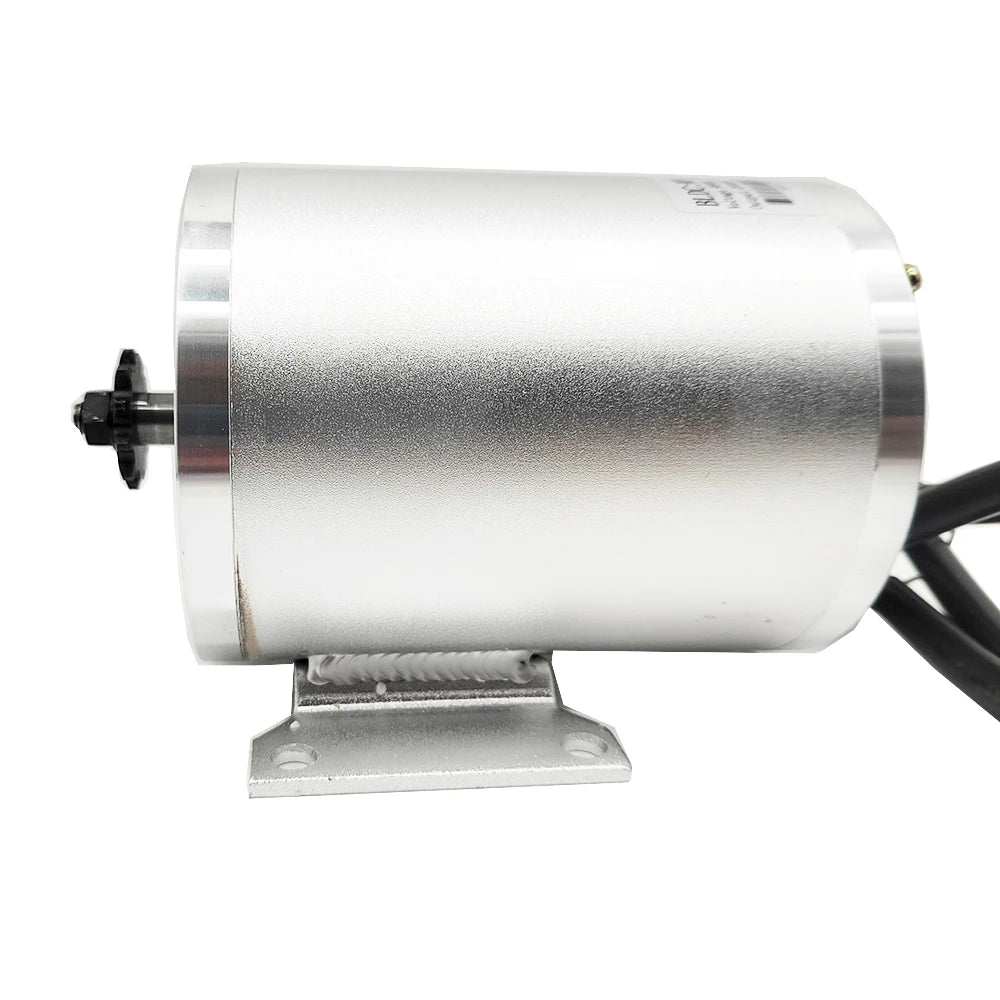

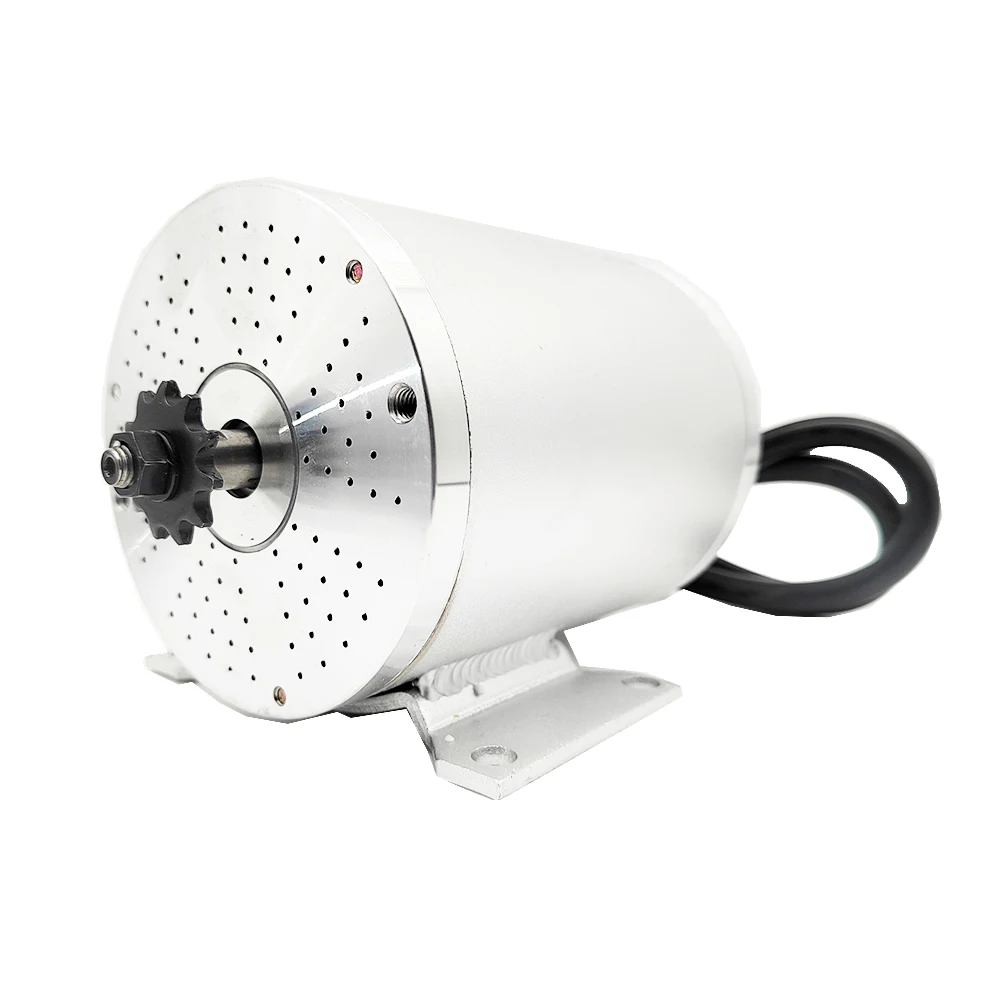

1.Model:MOTOR MY1020

2.Motor Type: High-Speed BLDC brushless Motor

4.Out put /W: 2000W.

5.Rated Speed:(48V 4300RPM/MIN) (60V 4500RMB/MIN)

6.Weight:about 4.58KGS

7.Shaft diameter:12mm

8.Rated Torque/N.m:4 N.m

9.Applicable: Electric Scooter,Ebike,Folding Bike,Small E-Moto,machine,MIni Electric Car ,DIY

10.Installation: Center,MID DRIVE SYETEM.

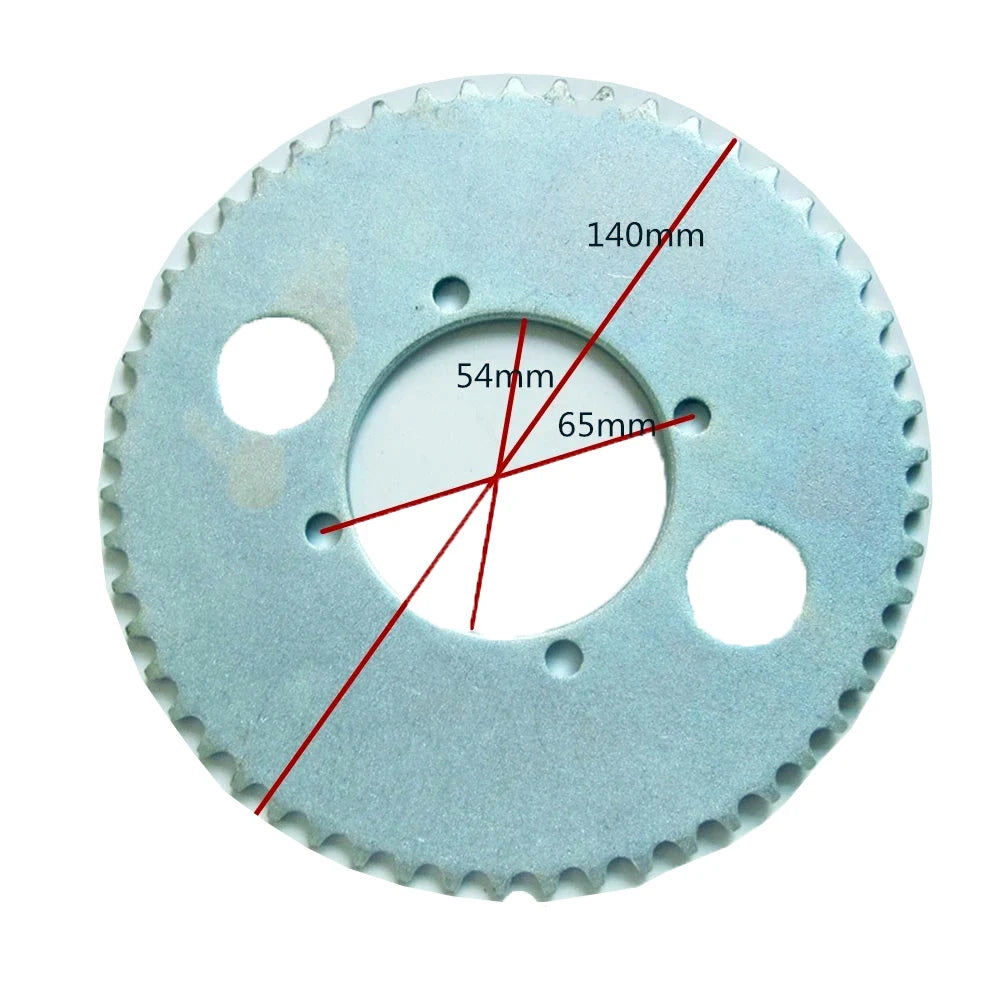

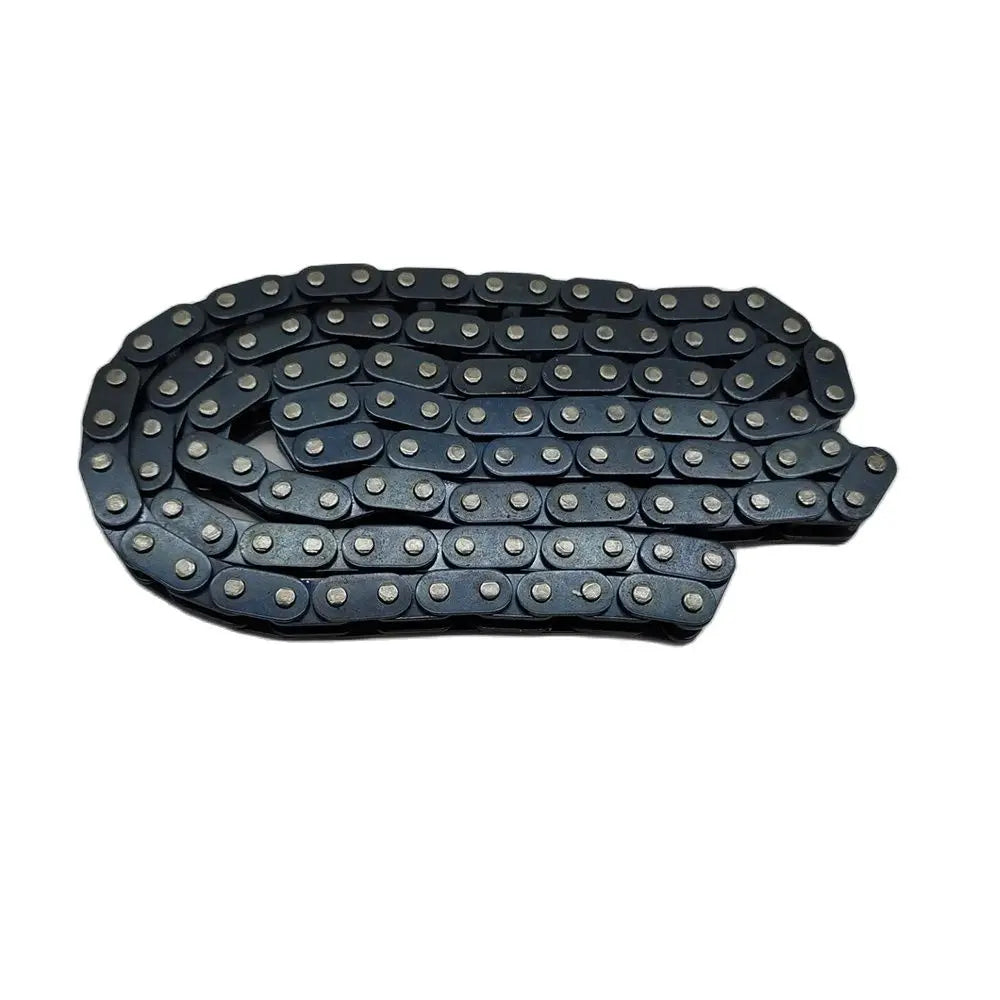

11.Sprocket/Chain: T8F Sprockt /Chain.

12.Speed:about 45-60km/h

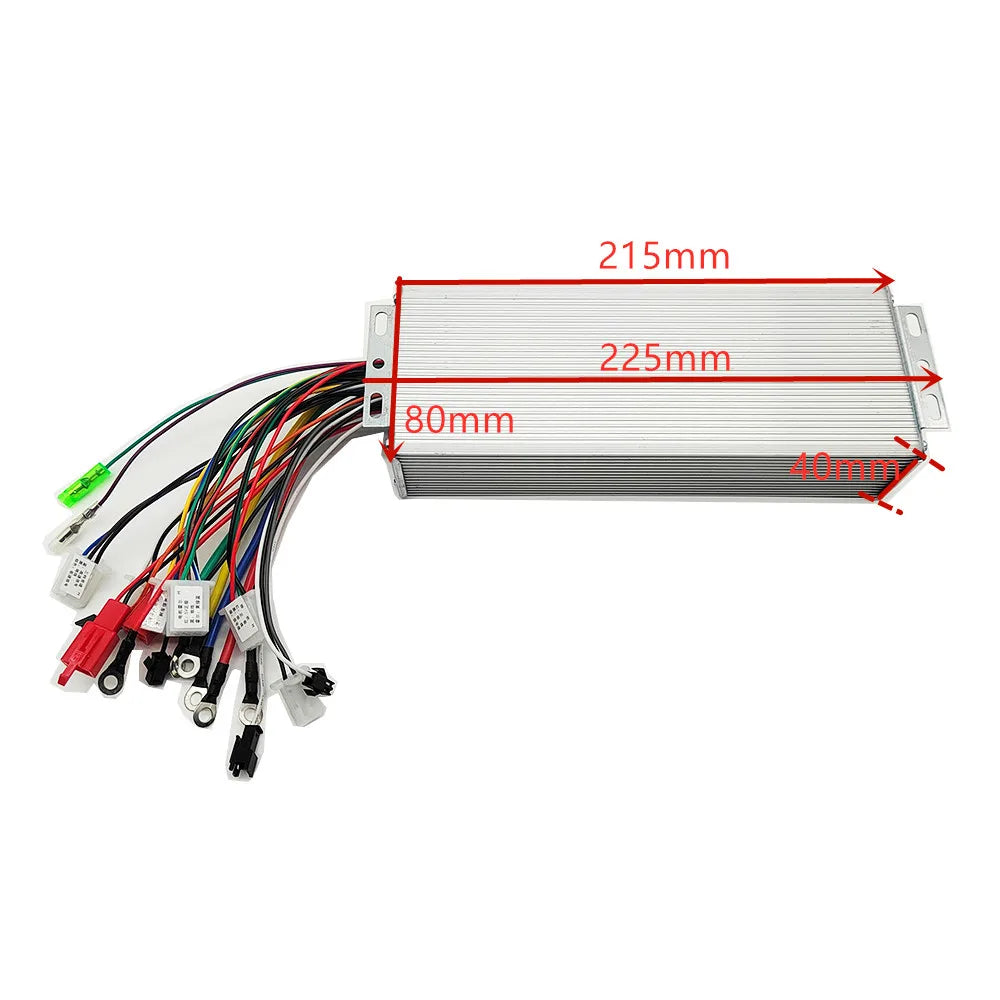

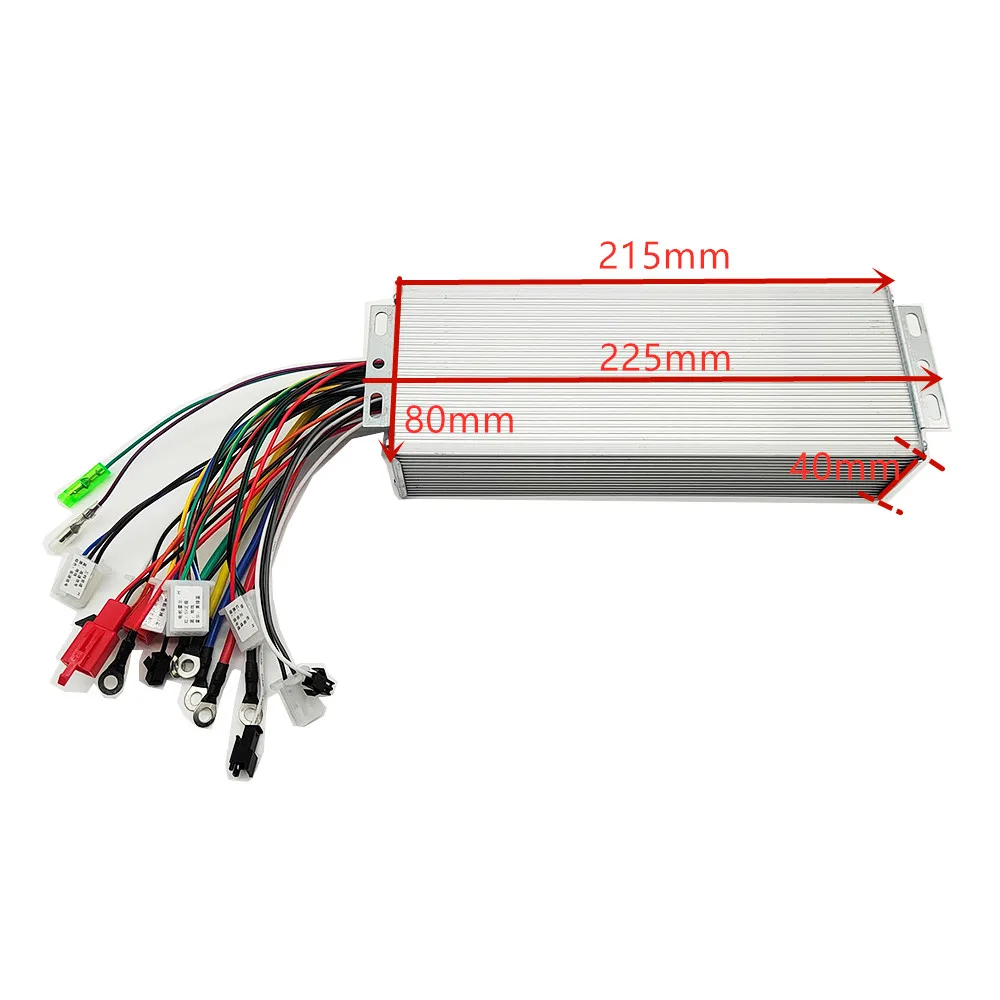

48-64V 2000W controller can work with hall connect sensor or not connect hall sensor

Rated Voltage: 48V-64V

Low Voltage : 42V±0.5V

Rated Power: 2000W

Limit Current:45A

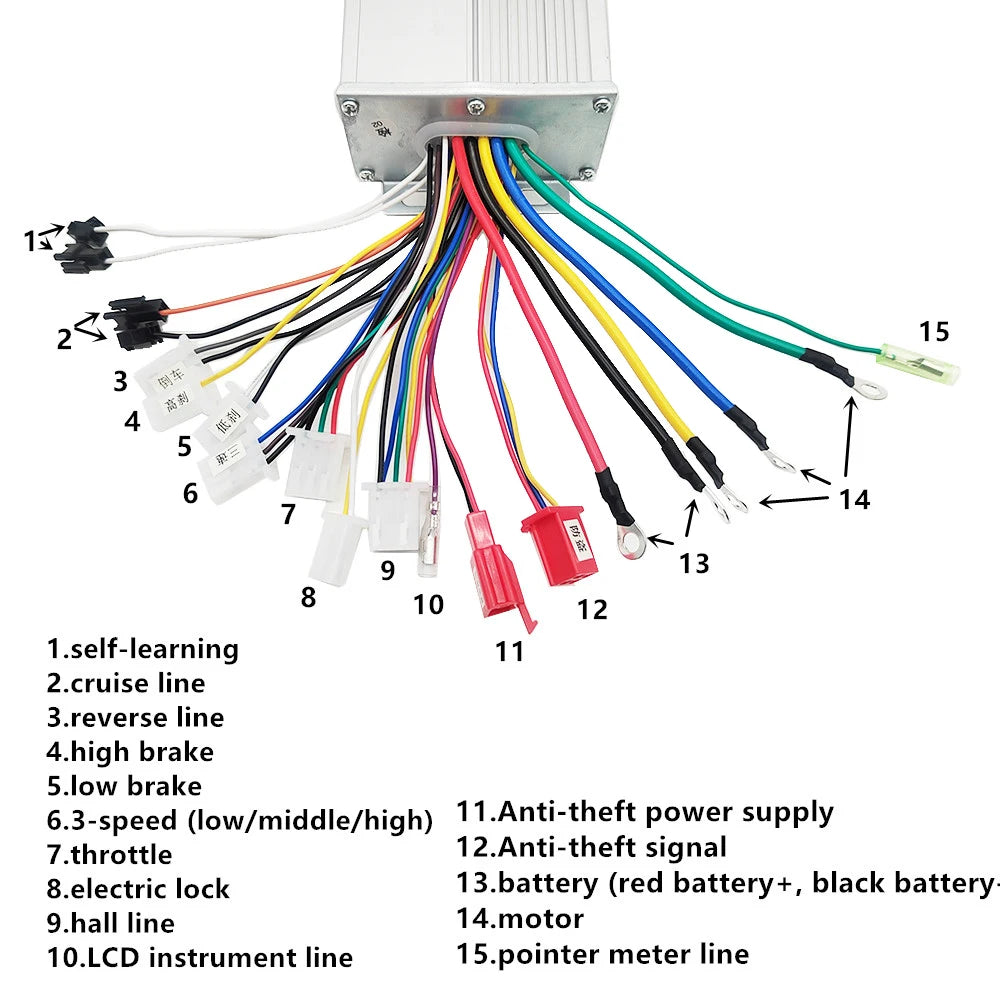

1.self-learning

2.cruise line

3.reverse line

4.high brake

5.low brake

6.3-speed (low/middle/high)

7.throttle

8.electric lock

9.hall line

10.LCD instrument line

11.Anti-theft power supply

12.Anti-theft signal

13.battery (red battery+, black battery-)

14.motor

15.pointer meter line

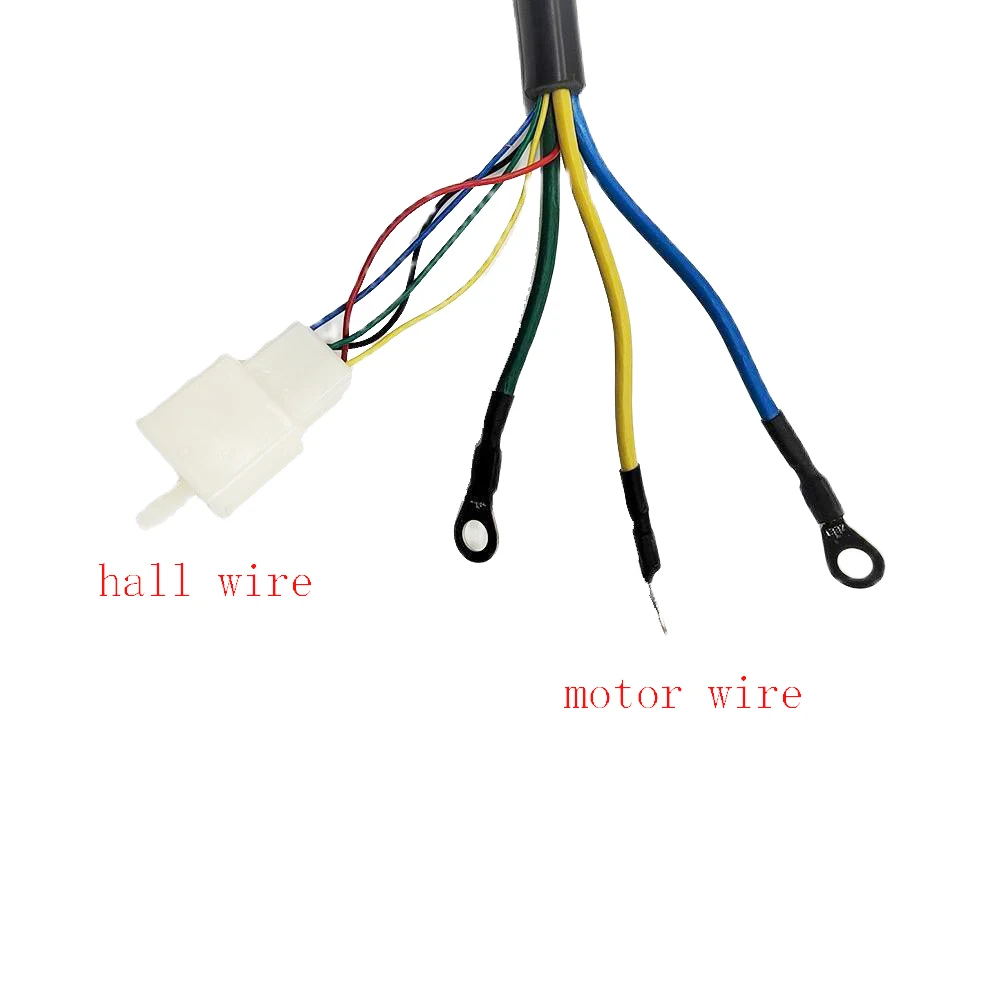

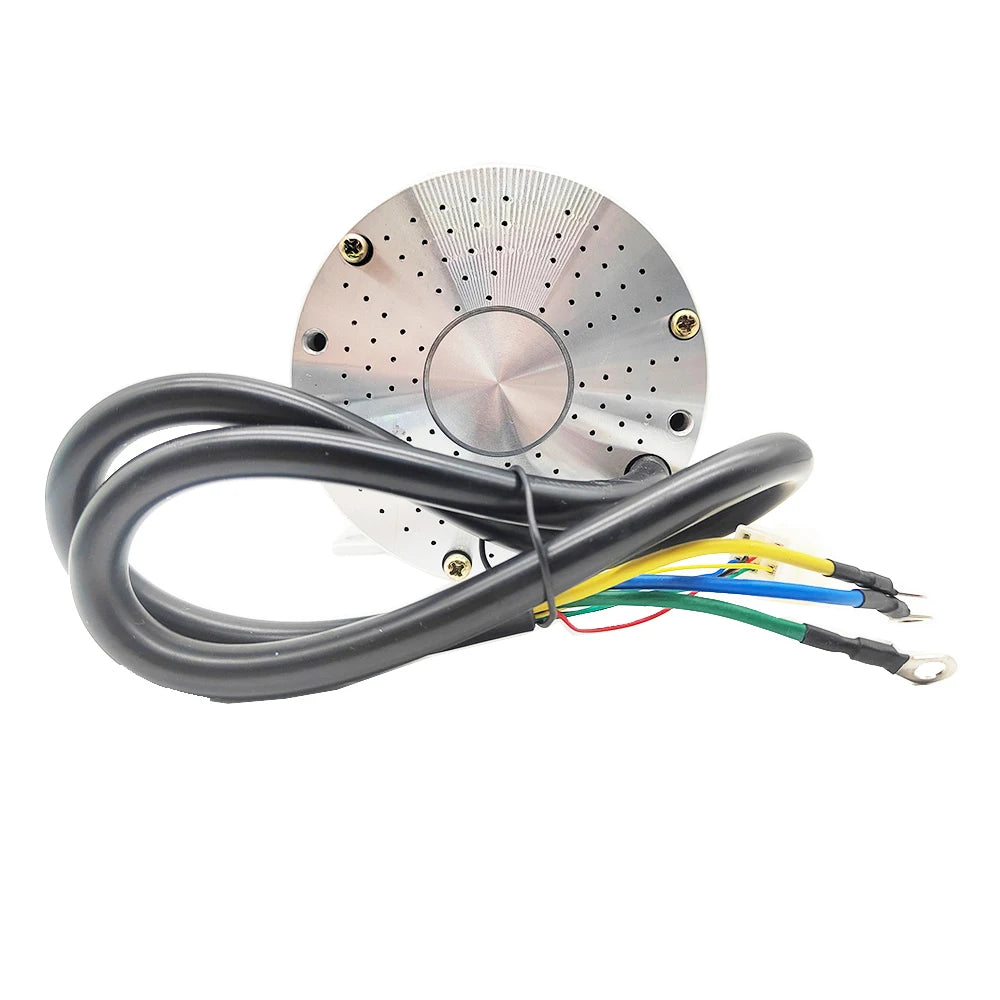

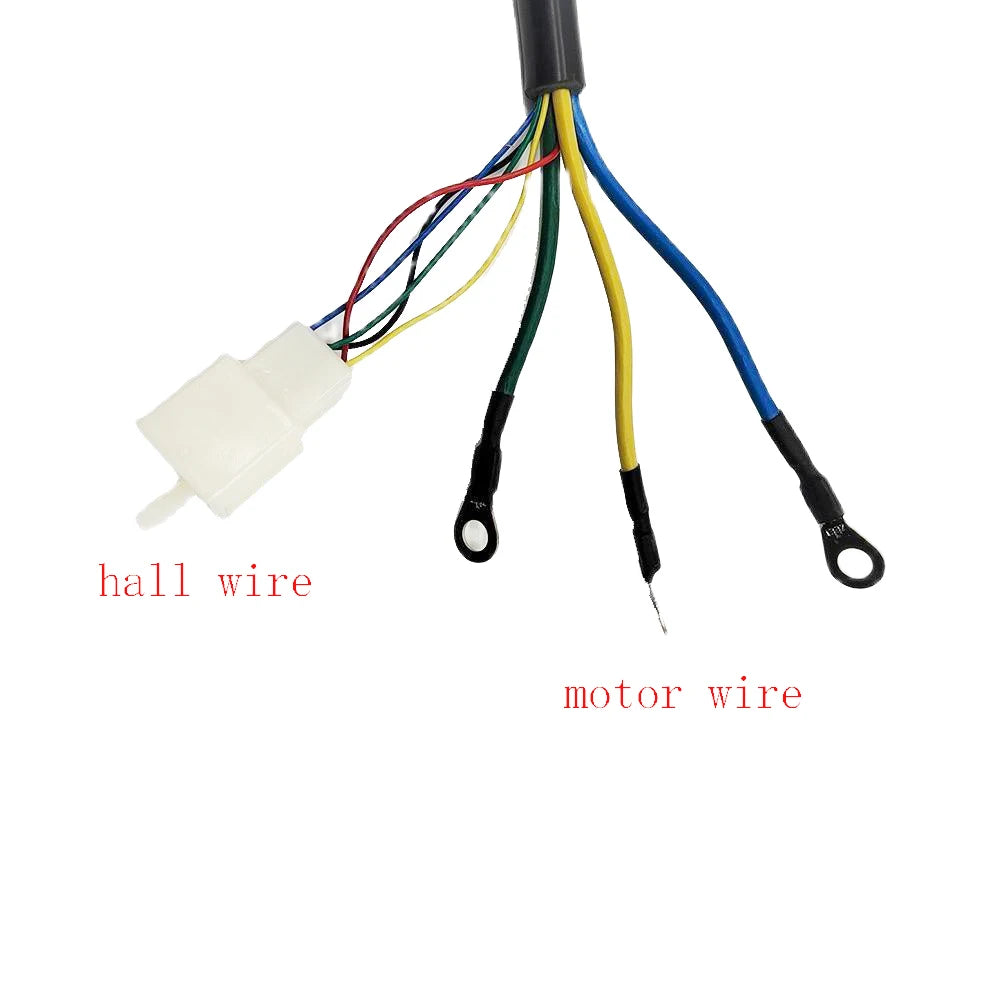

1.connect the motor line (color to color，if motor without hall line, don't need connect hall line）

2. connect the battery line(red:battery + , black:battery-)

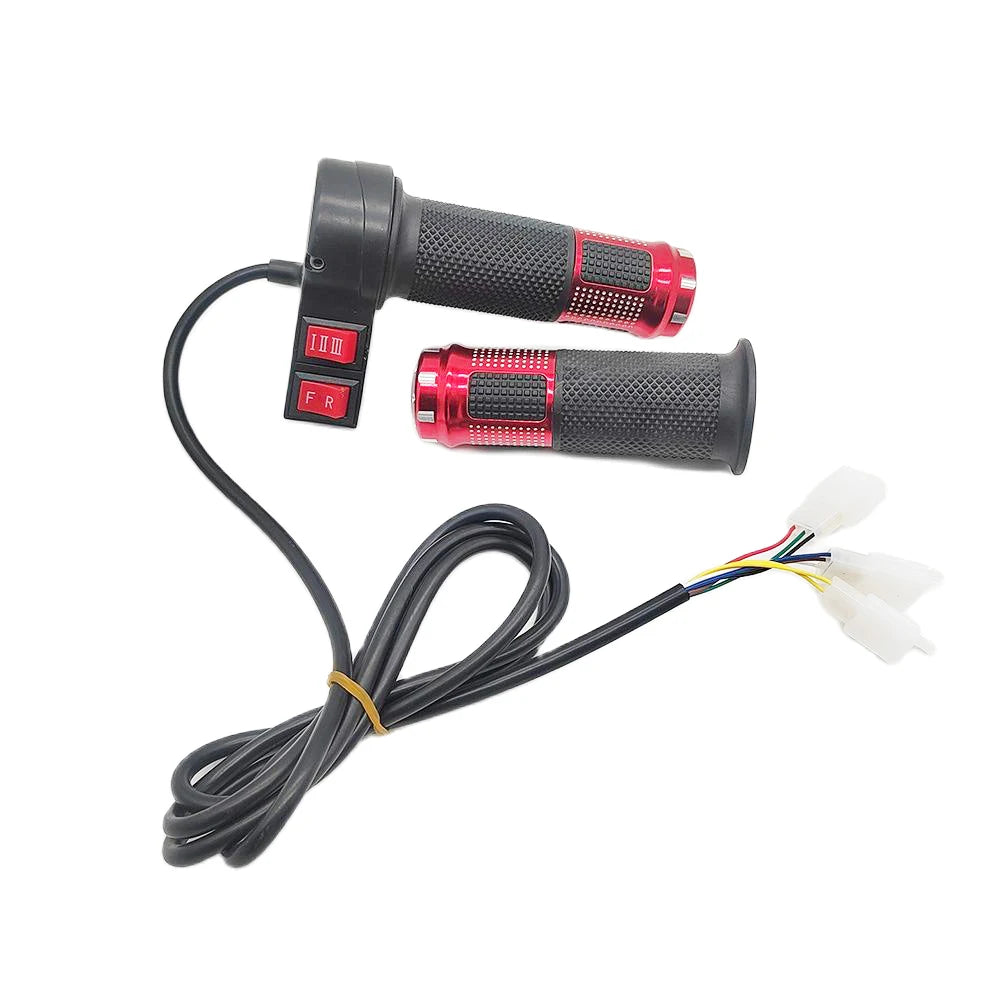

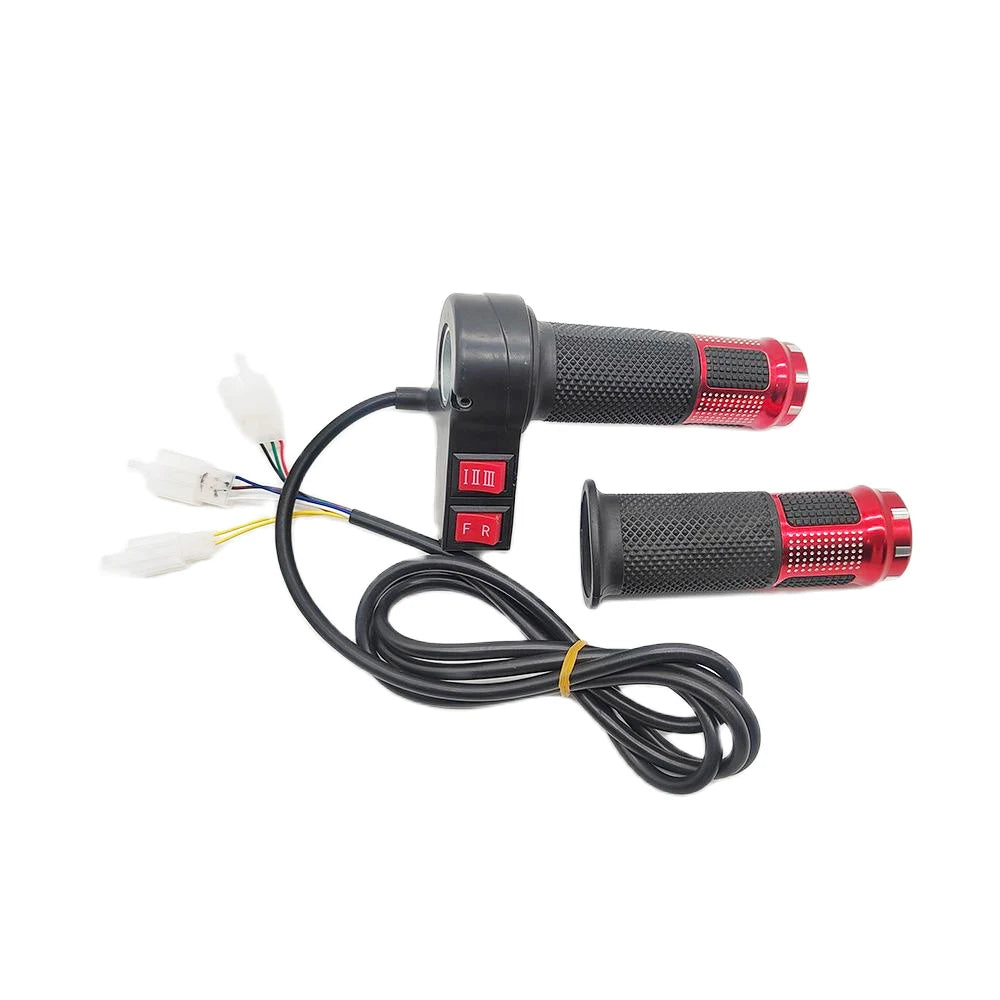

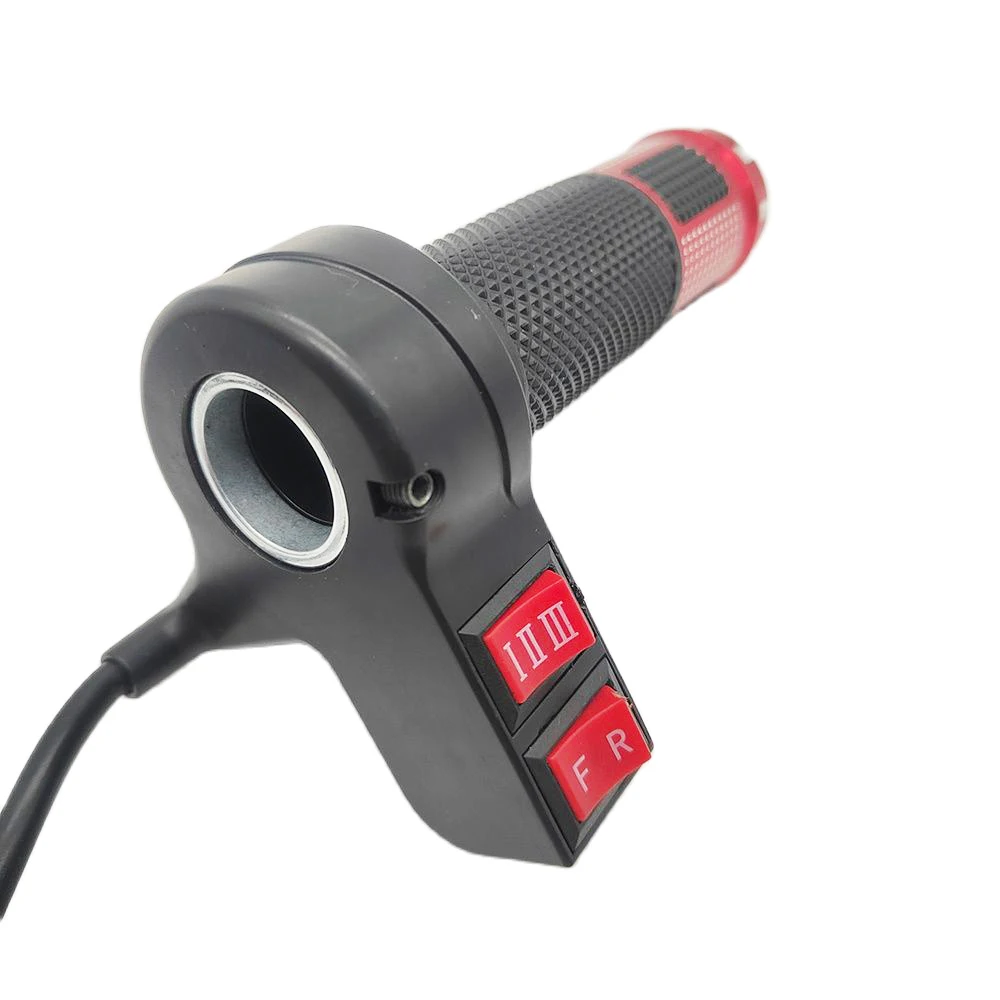

3. connect the controller throttle line to throttle, controller electric lock connect to throttle electric lock

（if throttle not have electric lock,the electric lock 2 wires of the controller can be docked together）

4.docking the two self-learning lines, the wheel will forward or reverse.

(1.if wheel forward ,Separate the self-learning line.

2.if wheel reverse, Separate the self-learning line. Docking the self-learning line again，

if wheel forward ,Separate the self-learning line.) Self-learning is to adapt to the supply voltage

5.other functions can be connected as needed.
