General information

Type

CPU / Microprocessor

Market segment

Mobile

Family

AMD A10-Series for Notebooks

Model number  ?

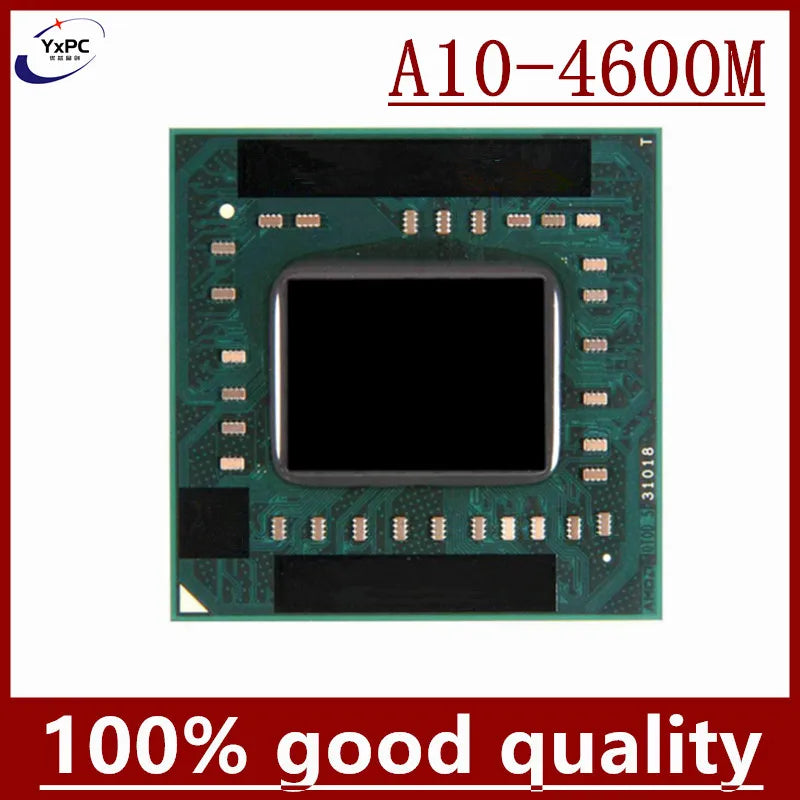

A10-4600M

CPU part number

• AM4600DEC44HJ is an OEM/tray microprocessor

Frequency ?

2300 MHz

Maximum turbo frequency

3200 MHz

Boosted P states [1]

#1: 3200 MHz, 0.975V
#2: 2700 MHz, 0.75V

Package

722-pin organic lidless micro Pin Grid Array (UOL722)

Socket

Socket FS1 (FS1r2)

Size

1.38" x 1.38" / 3.5cm x 3.5cm

Weight

0.2oz / 6g

Introduction date

May 15, 2012

Architecture / Microarchitecture

Microarchitecture

Piledriver

Platform

Comal

Processor core  ?

Trinity

Core stepping  ?

TN-A1

CPUID

610F01

Manufacturing process

0.032 micron
1303 million transistors

Die

246mm2

Data width

64 bit

The number of CPU cores

4

The number of threads

4

Floating Point Unit

Integrated (shared between two cores in each module)

Level 1 cache size  ?

2 x 64 KB 2-way set associative shared instruction caches
4 x 16 KB 4-way set associative data caches

Level 2 cache size ?

2 x 2 MB 16-way set associative shared exclusive caches

Level 3 cache size

None

Cache latency

3 (L1 cache)

Multiprocessing

Uniprocessor

Extensions and Technologies

• MMX instructions

• Extensions to MMX

• SSE / Streaming SIMD Extensions

• SSE2 / Streaming SIMD Extensions 2

• SSE3 / Streaming SIMD Extensions 3

• SSSE3 / Supplemental Streaming SIMD Extensions 3

• SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4  ?

• SSE4a  ?

• AES / Advanced Encryption Standard instructions

• AVX / Advanced Vector Extensions

• BMI1 / Bit Manipulation instructions 1

• F16C / 16-bit Floating-Point conversion instructions

• FMA3 / 3-operand Fused Multiply-Add instructions

• FMA4 / 4-operand Fused Multiply-Add instructions

• TBM / Trailing Bit Manipulation instructions

• XOP / eXtended Operations instructions

• AMD64 / AMD 64-bit technology  ?

• AMD-V / AMD Virtualization technology

• EVP / Enhanced Virus Protection  ?

• Turbo Core 3.0 technology

Low power features

• Core C1, C1E, C6 and CC6 states

• Package S3, S4 and S5 states

• PowerNow!

Low power P states [1]

#1: 2000 MHz, 0.425V
#2: 1800 MHz, 0.325V
#3: 1600 MHz, 0.275V
#4: 1400 MHz, 0.225V
#5: 900 MHz, 0.225V

Integrated peripherals / components

Integrated graphics

GPU Type: Radeon HD 7660G
Shader cores: 384
Base frequency (MHz): 496
Maximum frequency (MHz): 685

Memory controller

The number of controllers: 1
Memory channels: 2
Supported memory: DDR3-1600, DDR3L-1600, DDR3U-1333
Maximum memory bandwidth (GB/s): 25.6

Other peripherals

• PCI Express 2.0

• Unified Video Decoder 3.2  ?

• DVI / DisplayPort / HDMI / VGA display controllers

Electrical / Thermal parameters

V core  ?

0.8125V - 1.3V

Maximum operating temperature  ?

100°C

Thermal Design Power ?

35 Watt
