SPECIFICATIONS

Application: Tuya / Smart Life

Audio: Two-way Audio

Battery: 2pcs 18650 Rechargable Batteries Defualt 2600mAh

Brand Name: OEM

Card Storage: Support up to 128G

Feature: Alexa and Google Home Optional

Model Number: SDB-1

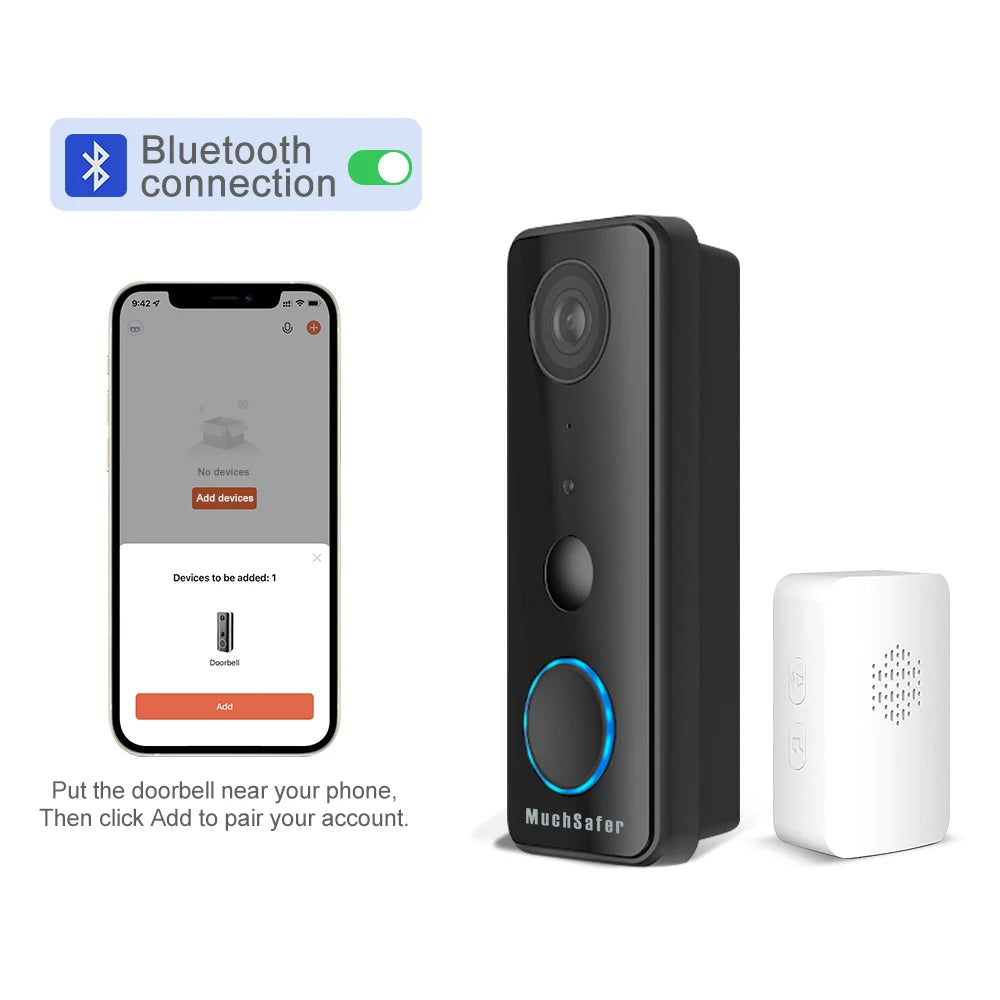

Network: wifi+bluetooth

Place of Origin: Shenzhen

Product Name: Tuya Smart Video Doorbell

Resolution: 1080P,1080P

Type: Video Door Phone

Product Description

Product model	Product model	SDB-1
Scheme	Master chip	1080p: Ingenic T31ZL/2K: Ingenic T31ZX (Note: The chip will be replaced due to product upgrades without notice)
		Image sensor	SC2335/SC233A (Note: Sensor will be replaced due to product upgrades without notice)
Audio video	Pixel	200W 1080P resolution
		Video encoder	Main stream (HD) : H.265; Substream (SD) : H.264
		Video bitrate	Main stream (HD) : 1Mbps; Substream (SD) : 384Kbps
		Video frame rate	Main stream (HD) : 1080P@15fps; Substream (SD) : VGA@20fps
		Lens	Focal length: 3mm; Aperture: F2.0
		Vision Angle	Diagonal 160 °
		Video codec standard	H.265/H.264
		Voice intercom	Supports bidirectional voice intercom and echo cancellation
		Audio input / output	Number 1 Mic / Number 1 Speaker
		Indicator light	Green/white dual-color indicator. White is the device status indicator, and green is the charging indicator
		Infrared lamp	Six 850nm infrared lamps

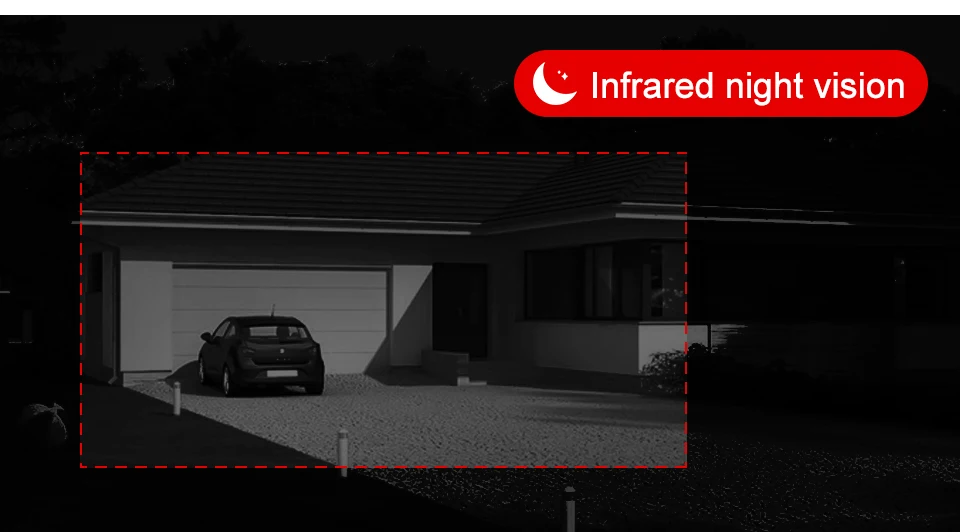

		Night vision mode / distance	IR-CUT automatically switch / Maximum night vision distance 5m
		Wireless connection	2.4 GHz Wi-Fi IEEE 802.11 b/g/n

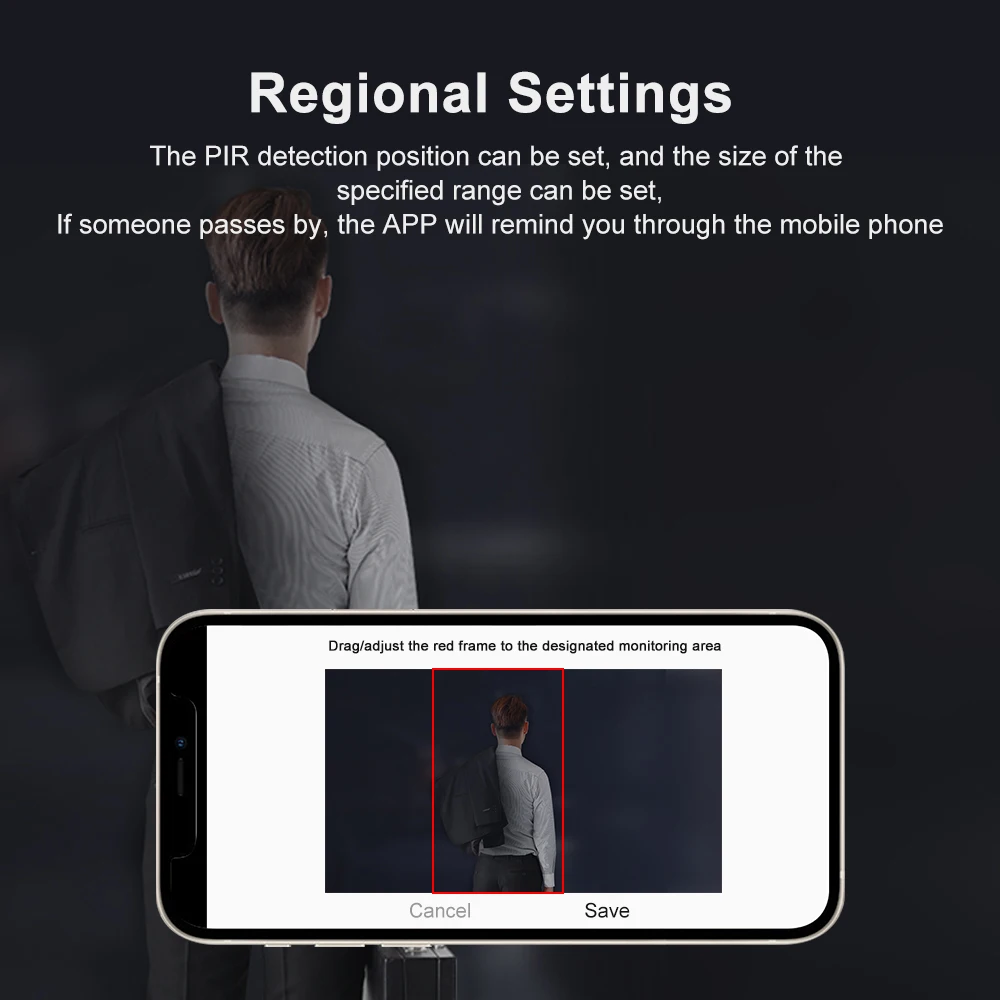

		Motion detecting	Supports PIR body movement detection

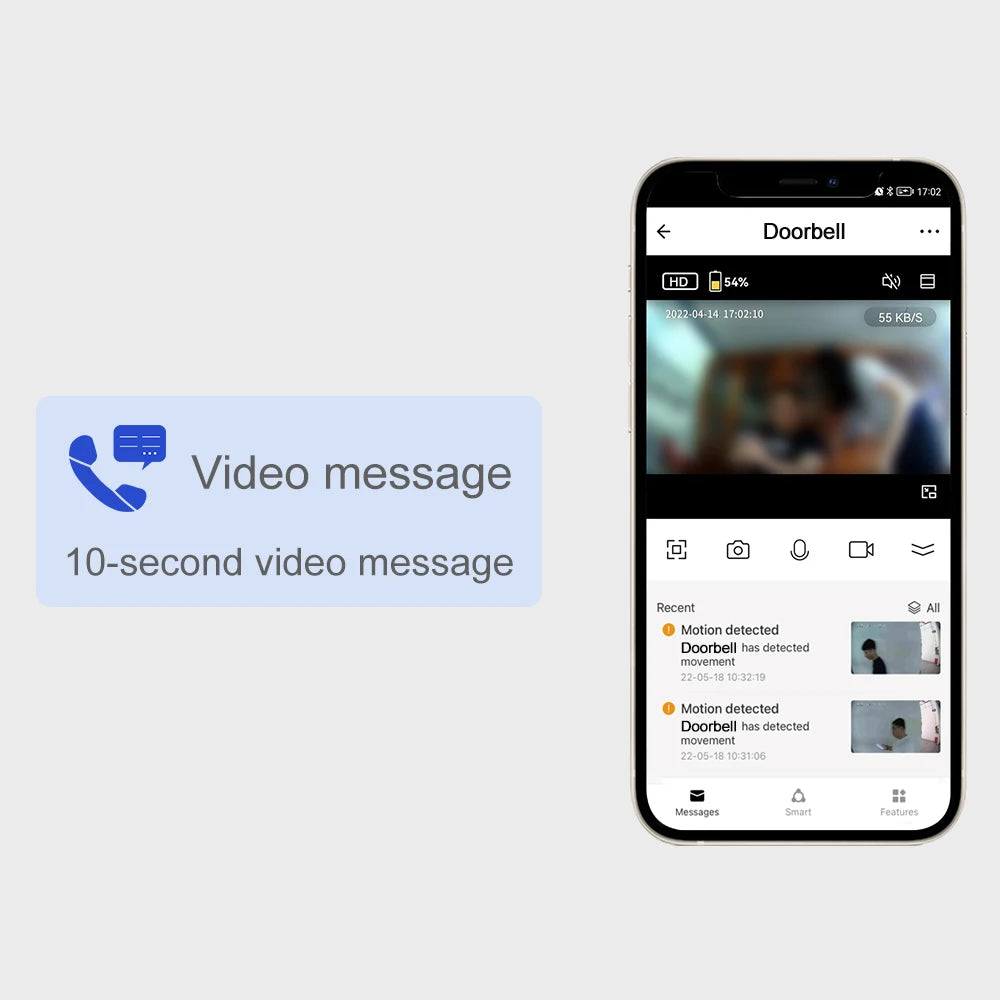

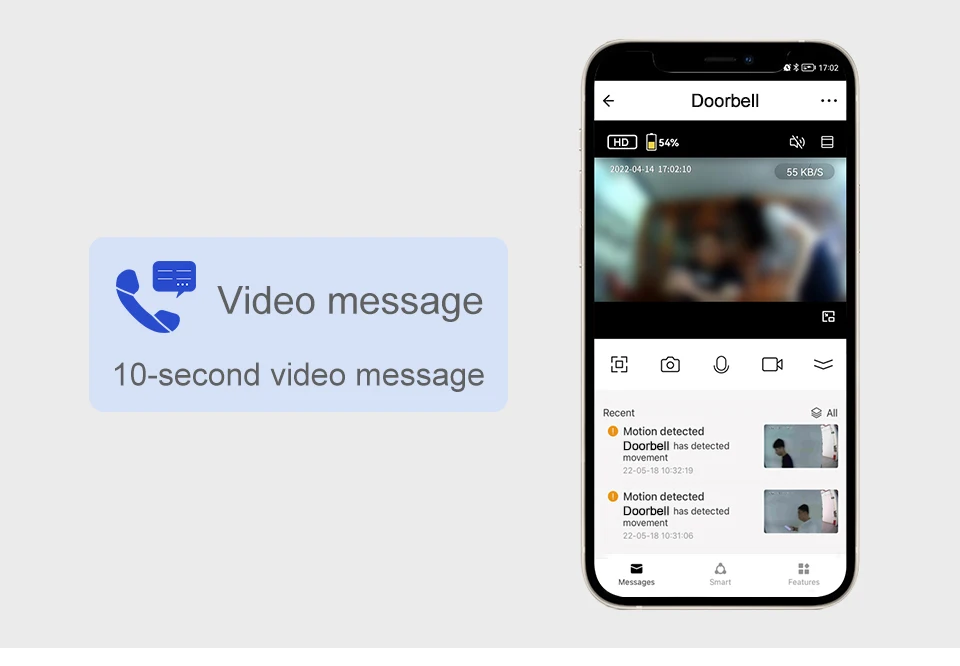

		Message function	Supports message leaving function
Ticktok	Supports indoor Ticktok	RF 433MHz
Gateway	Gateway	Supported
Value-added function	Tuya cloud storage	Supports event video
		Amazon Alexa	Supported
		Google assistant	Supported
Power supply	Power supply	DC 5V1A
Certification	Certification	CE/FCC/RoHS
Battery	Type	Rechargeable battery, non-removable, charge protected
		Capacity	5200mAh
		Battery duration	4~6 months (10 times a day) (related to the use environment and scene, subject to actual test)
Environment	Temperature	-0°C ~ 45°
		Humidity	10 ~ 95% without condensation

Product Details

Product Details

Highlights

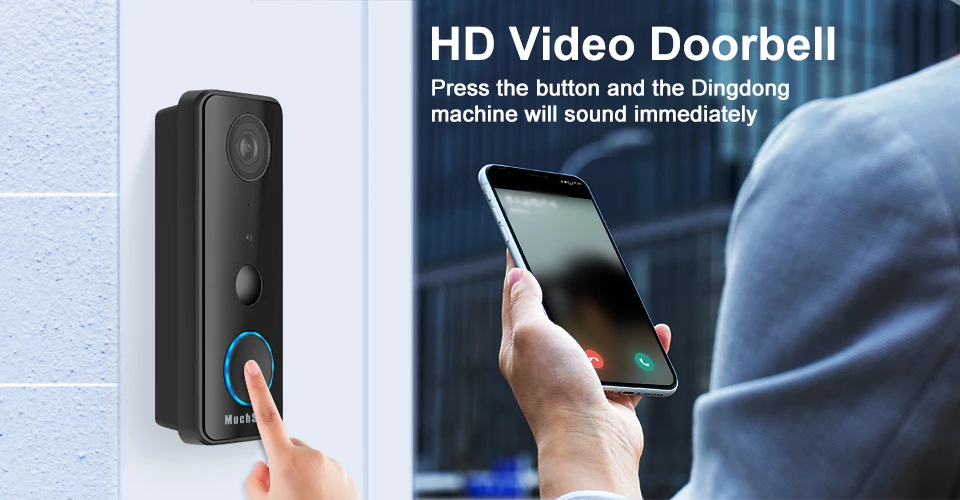

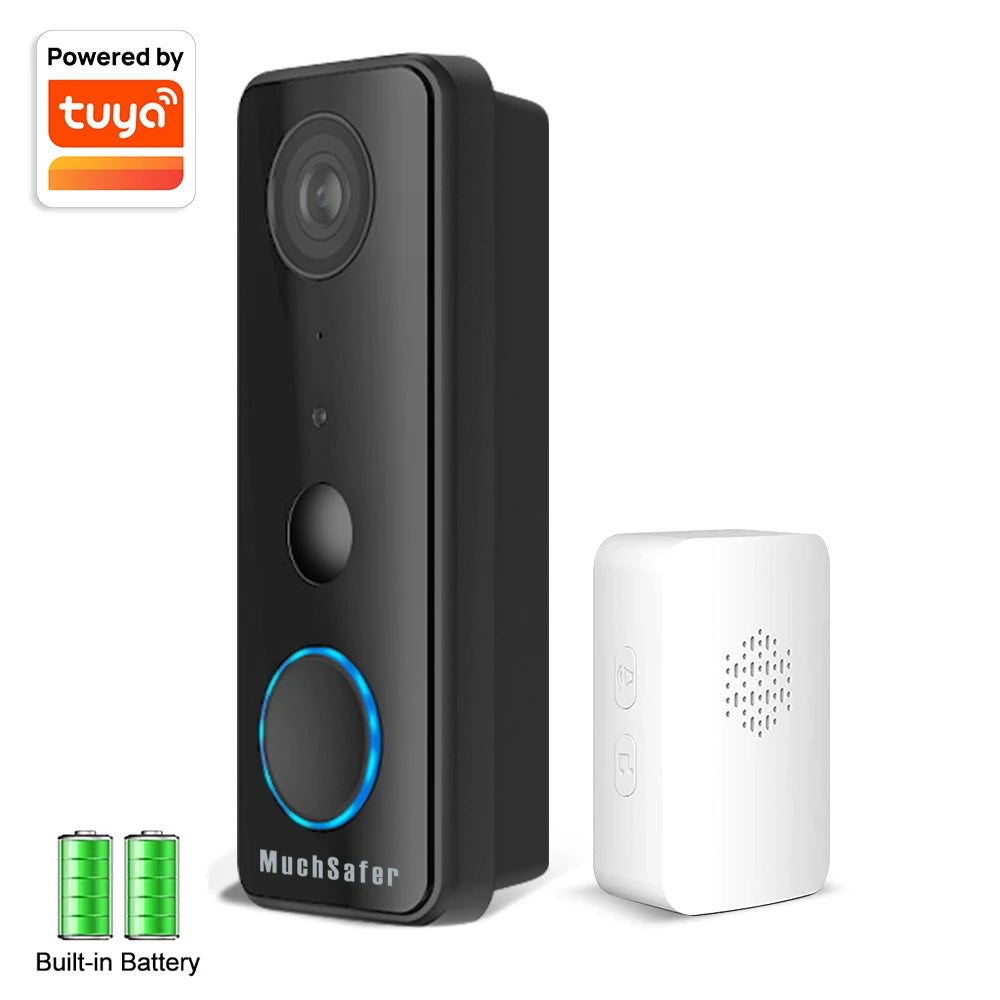

(1) Tuya Wifi Bluetooth 1080P Video Doorbell with Wireless chime

(2) IP54 Waterproof

(3) Support Alexa and Google Home function

(4) Alarm Call Notification

(5) Support US/EU/AU/UK wireless chime

(6) Support OEM service even for small order
