SPECIFICATIONS

Application: Desktop

Audio Channels: 7.1

Back I/O Ports: 1x RJ45,HDMI 1.0,Disply Port,4 x USB 2.0,USB 3.2 Gen2 X2

Brand Name: Colorful

Chipset: AMD B650

Chipset Manufacturer: AMD

Crossfire: crossfire,AMD Dual Graphics

High-concerned chemical: None

Maximum Ram Capacity: 192GB

Memory channel: Double

Number Of Memory Slots: 4

Number of M.2: 2

Number of PCI: 0

Number of PCIe x 16: 2

Number of SATA Ports: 4

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 5.0

Package: Yes

Processor compatibility: AMD Ryzen 7000 Series-R3

RAID Supported: Yes

SATA RAID: 0,1,5,10

Socket Type: Socket AM5

Special Features: Cooling Armor,Support for Overclocking

Storage Interface Type: SATA 3,M.2 (NVMe)

Support Memory Type: DDR5

Usage Scenario: Enthusiast & Overclocking,Gaming,Audio & Video,Household,Office,Design,Video Production

With CPU: No

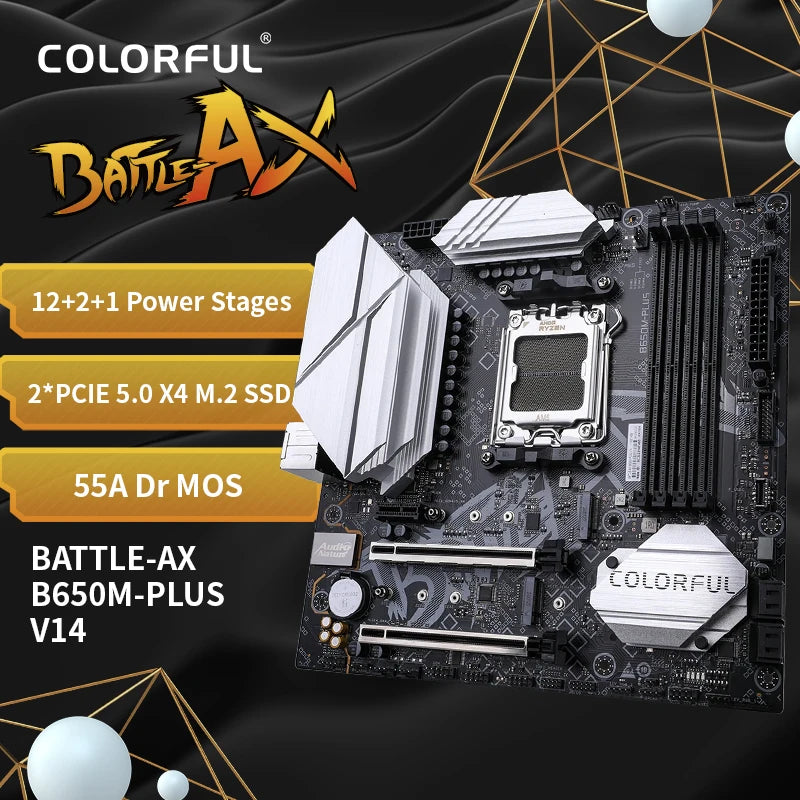

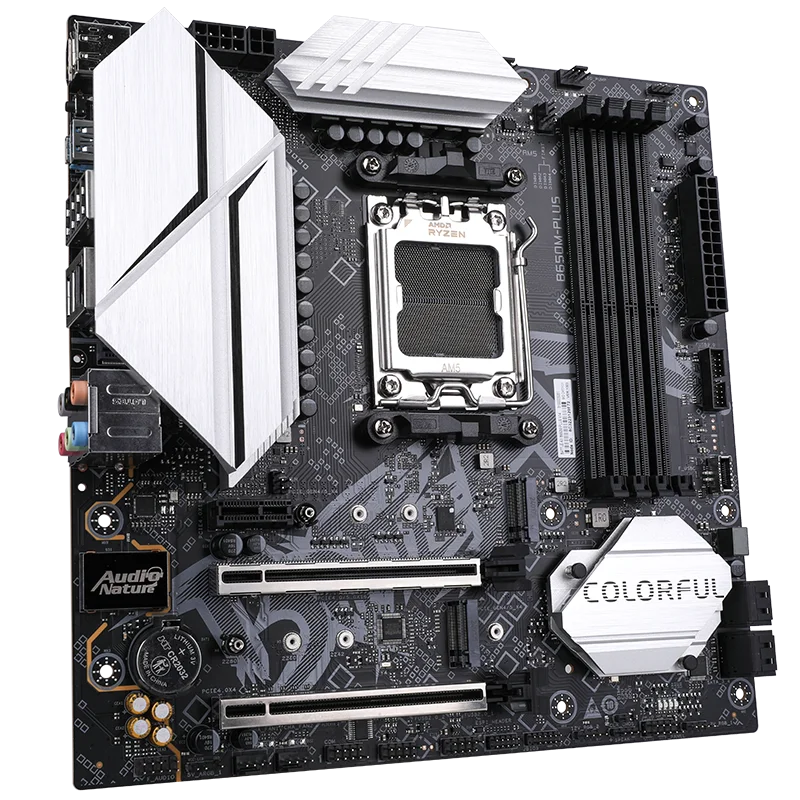

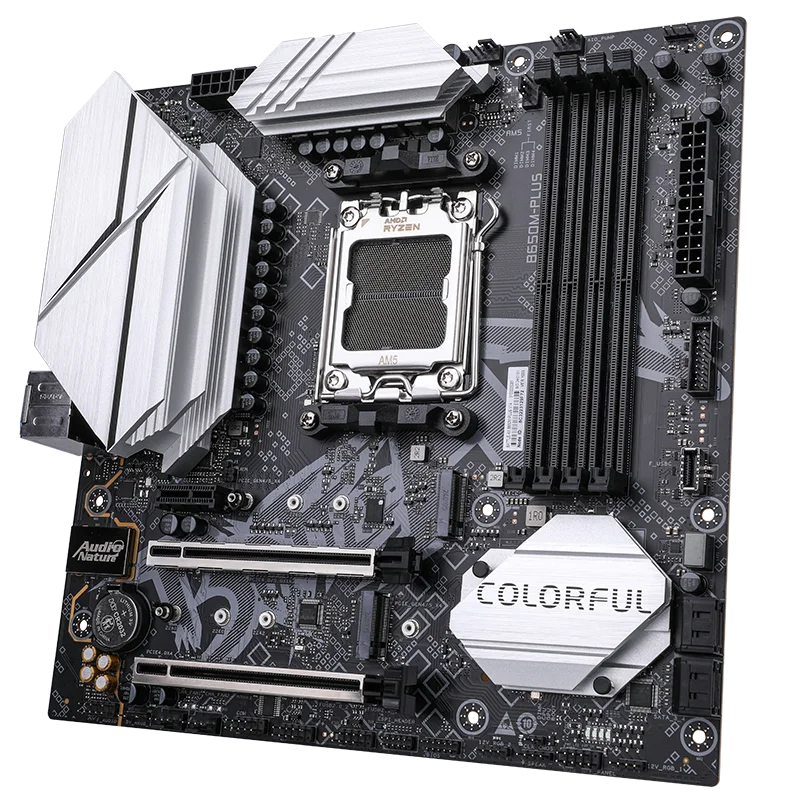

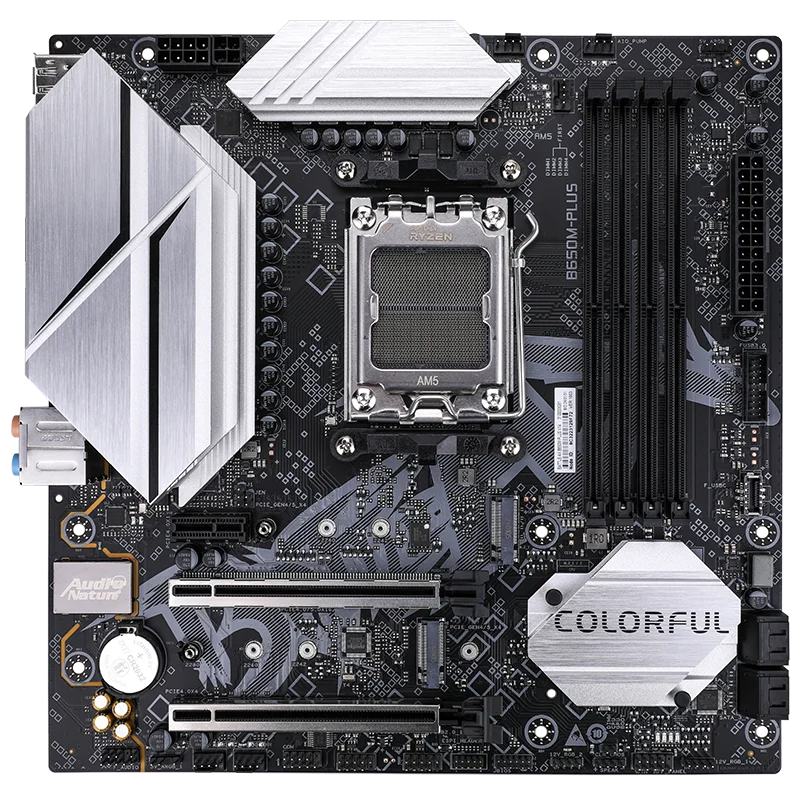

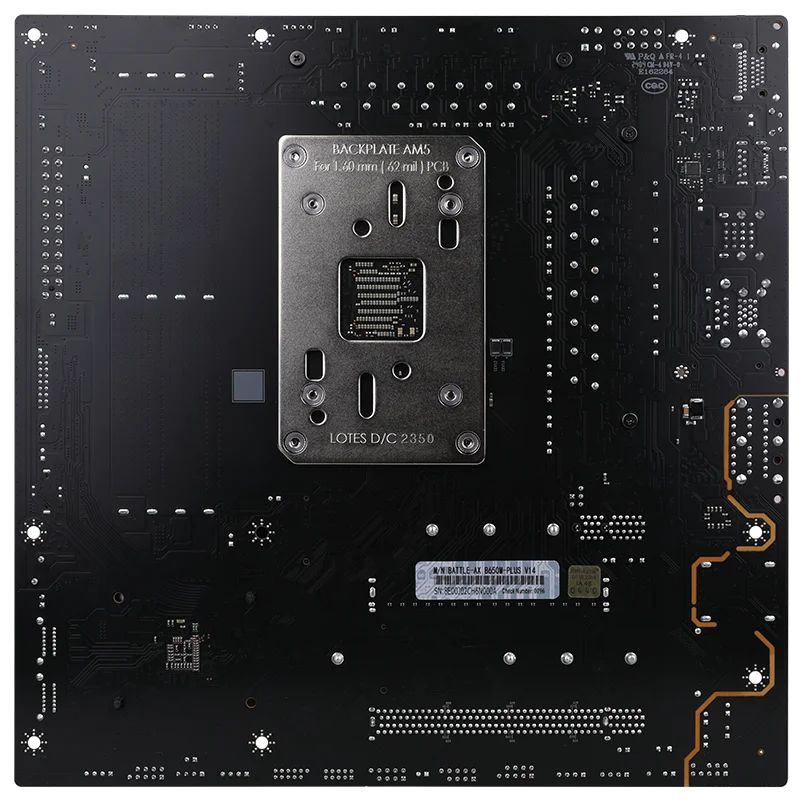

Product model BATTLE-AX B650M-PLUS V14

Product Series Battle Axe Series

Chipset AMD B650

CPU supports Ryzen 7000 series and 8000 series processors that are compatible with motherboard AM5 slots

(* Please visit the official website of Seven Rainbows www.colorful.cn to check the latest processor support list)

Memory support provides 4 DDR5 memory slots, which can support up to 192 GB of memory capacity (a single slot can support up to 48 GB of capacity)

-Supports DDR5-7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory

-Supports Extreme Memory Profile (XMP) memory technology

-Support for Extended profiles for Overclocking (EXPO) memory technology

-Supports dual channel memory technology

(* Please visit the official website of Seven Rainbows www.colorful.cn to check the latest memory compatibility list)

The storage interface supports a total of 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, supporting the creation of RAID 0 using SATA or M.2 NVMe hard disk devices, RAID 1, RAID 10 disk array

-M. Slot 2: Supports 2242/2260/2280 specifications M.2 SSD (PCIe 5.0/4.0 x4, CPU channel)

-M. Slot 2: Supports 2242/2260/2280 specifications M.2 SSD (PCIe 5.0/4.0 x4, CPU channel)

(Does it support PCIe 5.0 and the CPU used with the motherboard?)

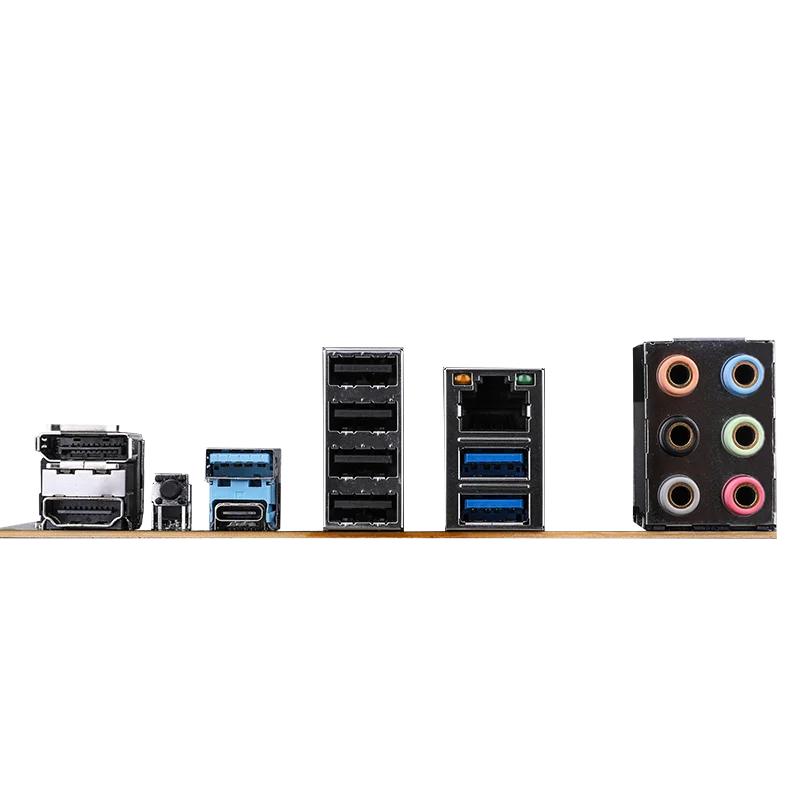

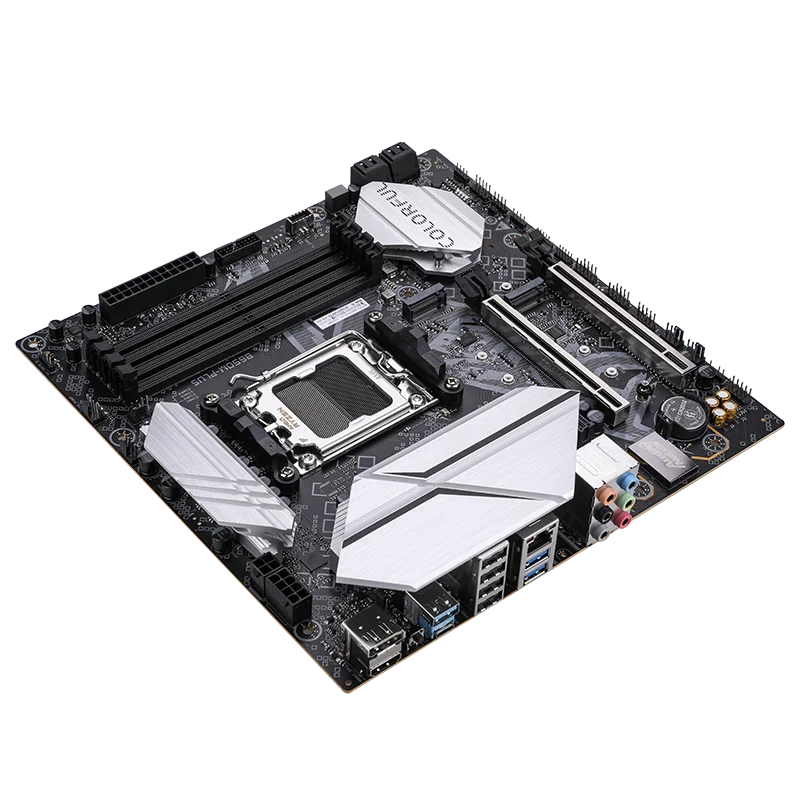

Expansion interface post I/O interface:

-4 USB 2.0 interfaces

-2 USB 3.2 Gen 1 Type-A interfaces

-1 USB 3.2 Gen 2 Type-A interface

-1 USB 3.2 Gen 2 Type-C interface

-1 DP 1.2 interface, supporting up to 4K 60Hz resolution

-1 HDMI 1.4 interface, supporting up to 4K 30Hz resolution

-1 2.5G network interface

-1 BIOS update button

-6 audio interfaces (audio input/audio output/microphone)

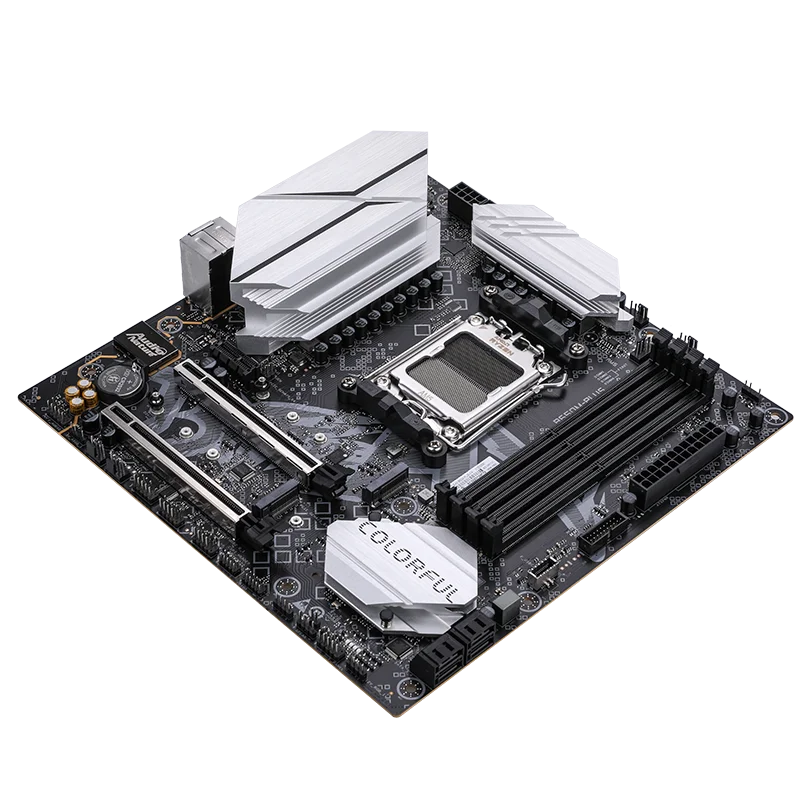

On board device interface:

-1 CPU fan pin

-3 system fan pins

-1 water-cooled pump pin

-2 USB 2.0 pins expandable, 4 USB 2.0 Type-A interfaces

-1 USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces

-1 USB 3.2 Gen 1 Type-C slot expandable 1 USB 3.2 Gen 1 Type-C interface

-2 5V 3-pin ARGB pins

-2 12V 4-pin RGB pins

-1 front audio pin

-1 front panel pin

-1 horn pin

-1 serial port pin

-1 clear CMOS jumper

-1 BIOS burner pin

-1 diagnostic card pin

Expansion slot 1 PCIe 5.0 x16 slot

1 PCIe x16 slot (supports PCIe 4.0 x4 specifications)

1 PCIe 4.0 x1 slot

System BIOS 128M UEFI, supports multiple languages

Power management supports S3 S4， Network S5 wake-up, supports timed power on and incoming power on

The hardware monitoring CPU fan speed is controllable, and the system fan speed is controllable, CPU temperature monitoring, System temperature monitoring and voltage monitoring for each group

Onboard network card RTL8125BG 2.5Gbit network card

On board sound card Realtek ALC897 high fidelity decoding chip, supporting 7.1 channels

Main board specifications M-ATX board type

245mm x 245mm
