Digital Colposcope with Screen, High Definition Color Imaging, Gynecology Examination Equipment for Clinic
LCD Screen
Sale price
$997.99
Regular price
$1,037.99
Skip to product information
Digital Colposcope with Screen, High Definition Color Imaging, Gynecology Examination Equipment for Clinic
Sale price
$997.99
Regular price
$1,037.99
SPECIFICATIONS
Application: Palm
Brand Name: HealthMedE
Commodity Quality Certification: 3C
High-concerned chemical: None
Is Batteries Included: No
Item Type: Household Health Monitors Accessories
Material: ABS
Model Number: double screen
Number of Pieces: One Unit
Origin: Mainland China
Size: with software
Built-in timing function for acetic acid and iodine reaction.
Automatic filter switching and timing shooting, effectively assist gynecological clinical examination and lesion observation.
Clinical Practical Functions
Ultra-bright LED cold light source, uniform brightness and soft light.
Brightness and color temperature increased by over 60% compared with traditional halogen lamp.
Long service life up to 100,000 hours, no heat radiation damage.
Light Source Advantage
Imported full HD medical digital camera
Medical professional high-definition capture card
1080P medical dedicated LCD monitor
Medical industrial control host
Exclusive colposcope professional software
Medical high-definition imaging output printer
Luxury lifting mobile medical trolley
Standard Configuration
Support real-time collection, display, freeze, storage and deletion of inspection images.
Large-capacity database, storage capacity over 1 million image data.
1–50 groups of continuous image capture at one time.
Mass Storage & Image Processing
Built-in imported CCD color camera system, strong anti-interference, high sensitivity and clear imaging.
Support one-click image zoom, fast operation, clear and delicate picture.
High-Quality Imaging System

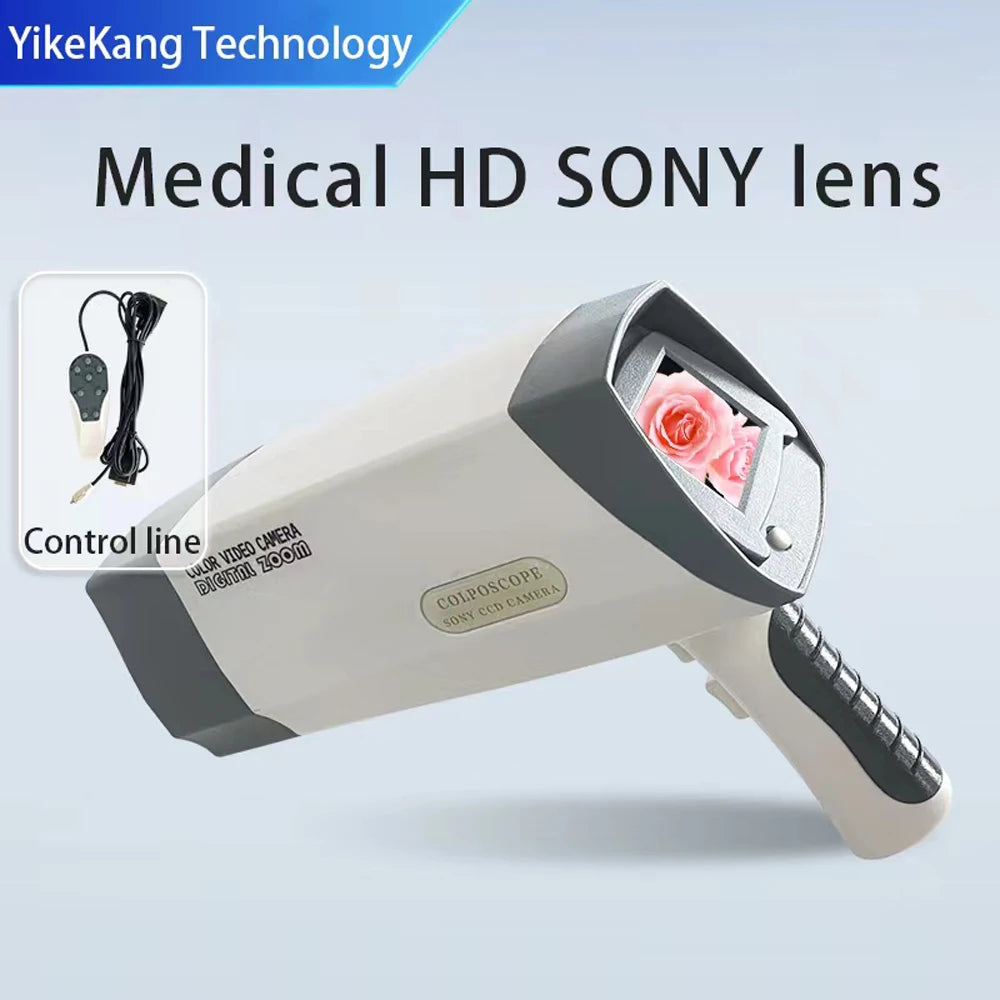

Adopts original Sony FCB series integrated camera core, 1/2.86 CMOS image sensor.
USB3.0 high-speed transmission, support multi HD video formats:
720P、1080P、2K、4K with multiple frame rates.
HD Lens & Video Format
All patient information, images and reports are stored in local database to ensure data security.
Different operation permissions for administrators and ordinary users, including case management, data statistics, log viewing and record deletion.
Network & Data Security
Patient management: Newly built cases, information modification
Medical record management: Query, edit and view examination reports
Image processing: Video & image capture, freeze, storage and deletion
Annotation & measurement: Logo adding, data marking
Report output: Editing, preview and printing
Account permission: Multi-level user management, password login
Professional software system:
Basic functions: Zoom in/out, timing display, green filter, auto focus, manual focus, red gain adjustment, white balance, foot pedal capture.
Rich Functional Design
-
Image PerformanceGeometric distortion: ≤3%；Color reproduction error: Single color block ≤30NBS, average error ≤20NBS.
Central illumination: ≥2500 lx
Color temperature: ≥5100K
Radiant heat: ≤50W/m²
Spot diameter: ≥60mm
Illumination uniformity: ≤1.2
-
Camera Pixel3.2 million HD color pixels, restore real tissue color.
-
Foot SwitchComply with YY 1057-2016 medical industry standard.
-

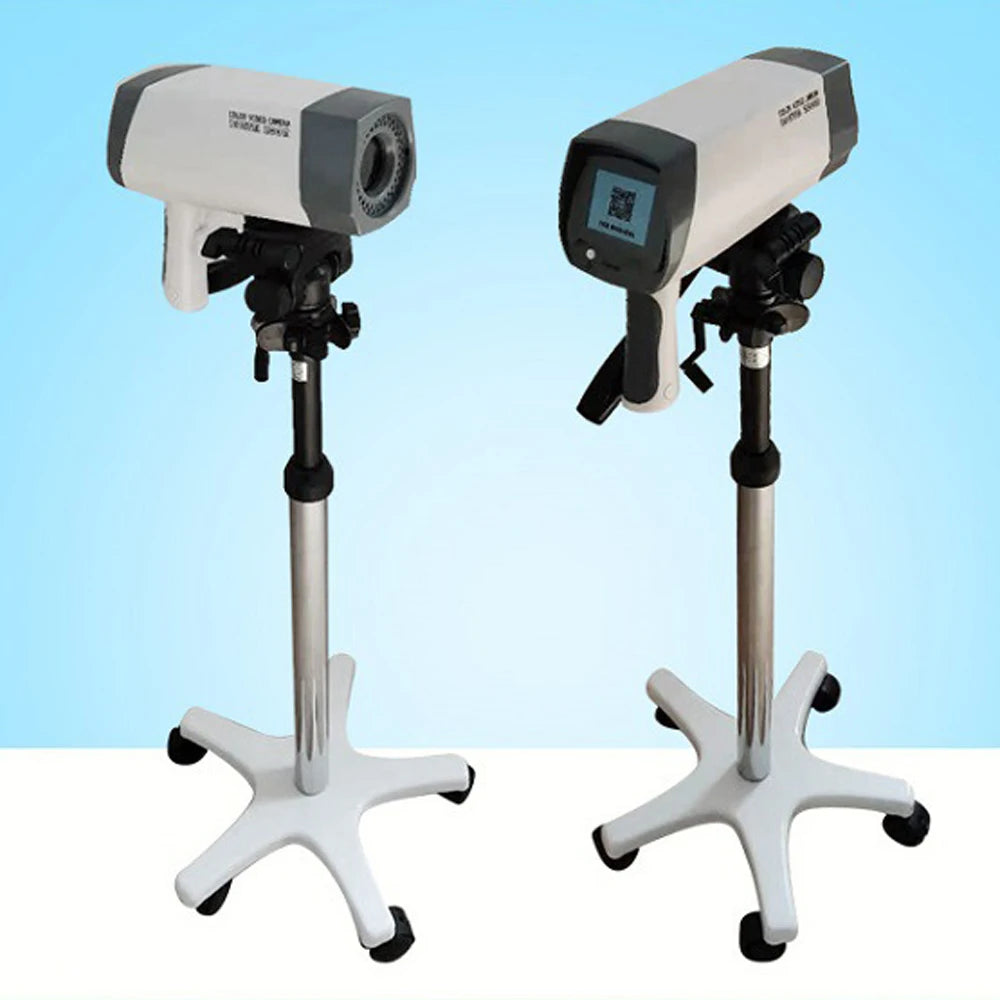

Adjustable BracketThe bracket consists of head bracket, stainless steel fixed rod and metal base.Minimum height: ≤70cm; Maximum height: ≥110cm.Max load: 1.5kg, descending displacement ≤2mm after pressure test.
-
Viewing RangeField of view: 25mm–300mm.
-
Depth of Field≥100mm under maximum magnification.
-
Light Source Parameters
Core Parameters
This medical electronic colposcope is specially designed for gynecological cervical and private examination, equipped with dual-screen display and high-definition imaging system, stable performance and complete functions, widely used in hospitals, clinics and medical institutions.
