SPECIFICATIONS

Advantages: Original genuine quality assurance one-to-one service

Color: Black White

Keyword: speakers

Material: Plywood

Packing: carton

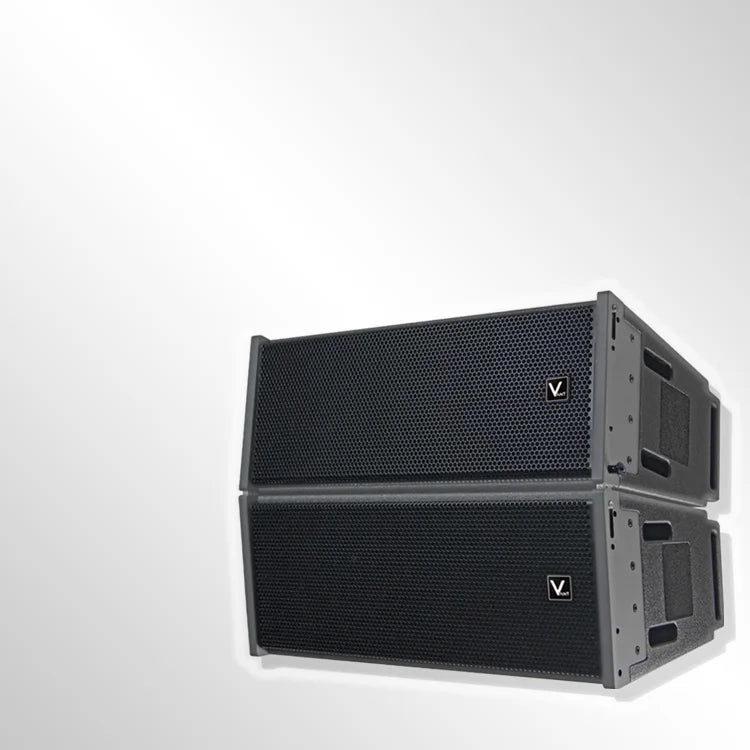

Product name: pro line array speaker

Size: 309x746x499mm

Type: Passive

brand name: NANT

dimension (l x w x h): 309x746x499mm

frequency range (hz): ±3dB 55Hz-20KHz

model number: H3L

place of origin: Guangdong, China

power: 800W

power handling: 800W (AES/RMS) /3200W (PEAK)

Product Paramenters

Title goes here.

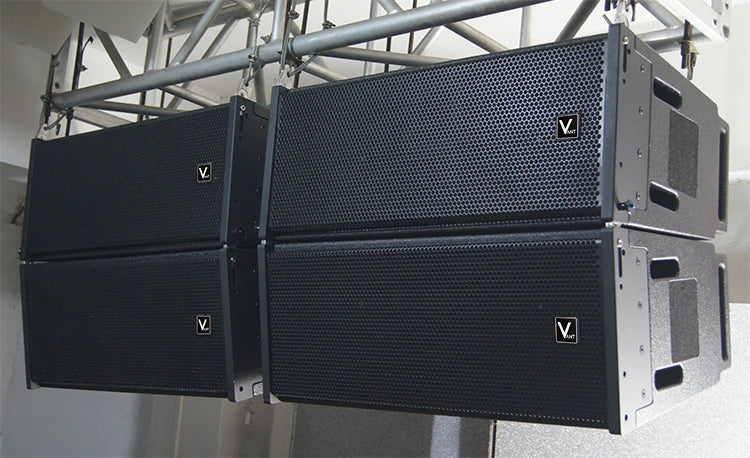

This model is very convinent for mobile use. Different package for your choice. it can easily handle main expansion of outdoor and

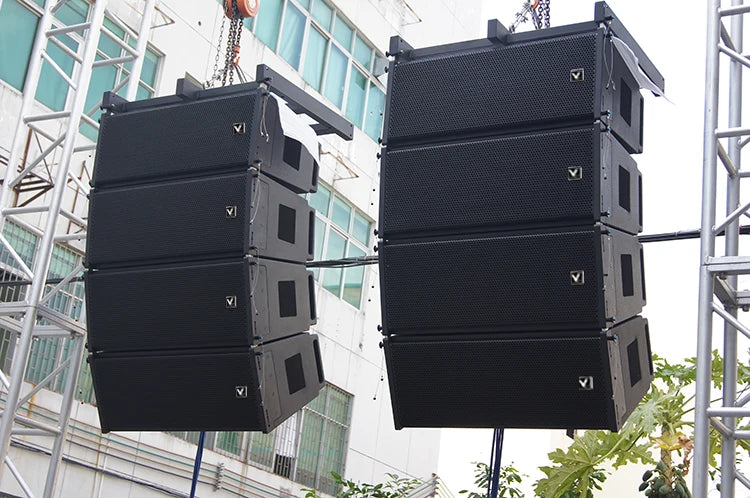

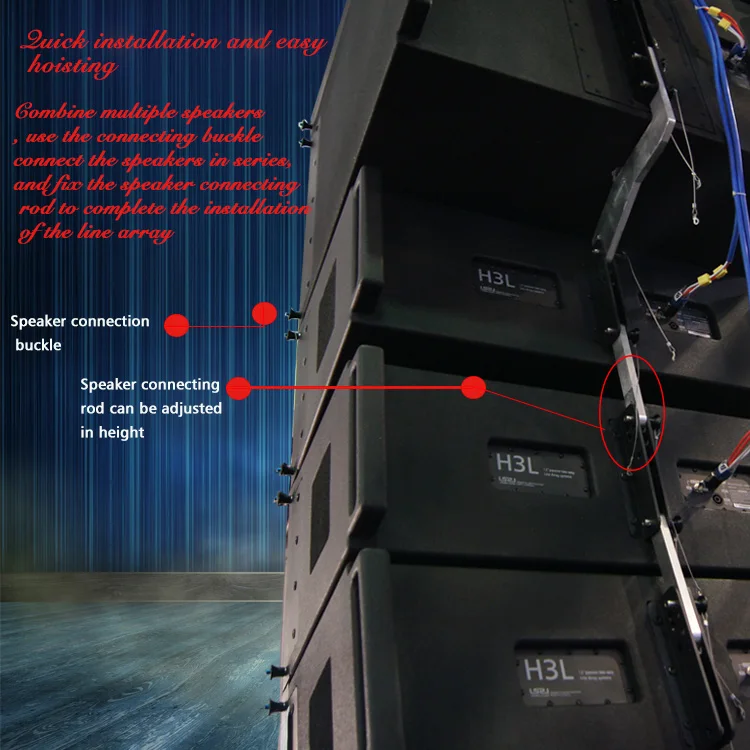

indoor proj- ect. hang part can be fixed lifting, Network cable int terface: The speaker can be debugged through a network cable,
very convenient and fast. Built-in digital power amplifier in the subwoofer can be directly connected to the mixer for use
High-power and stable output, full-voltage digital power amplifier has a wide range of voltage use, strong protection circuit
design, high and low voltage protection, no need to worry about voltage differences in different regions, universal

H3L parameters
Frequency Response	±3dB 55Hz—20KHz
Axial Sensitivity(1W @1m)	102 dB
power handling	800W (AES/RMS) / 3200W (PEAK)
Calculated maximum(SPL@1m)	131 dB(800W) 137 dB (3200W)
system Configuration	2 way
LF Subsystem	2x12” LF Driver 75mm voice coil
HF Subsystem	1X1.75” HF Driver

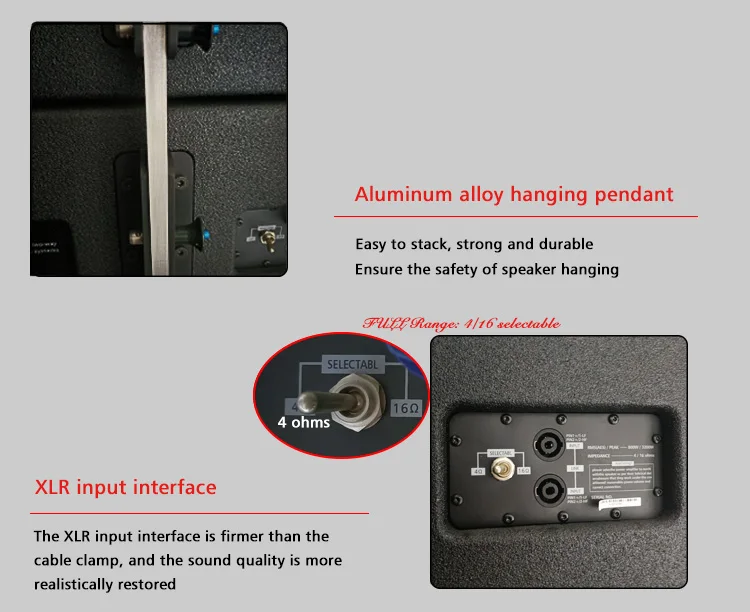

Powering	NL4x2 4Ω/16 selectable

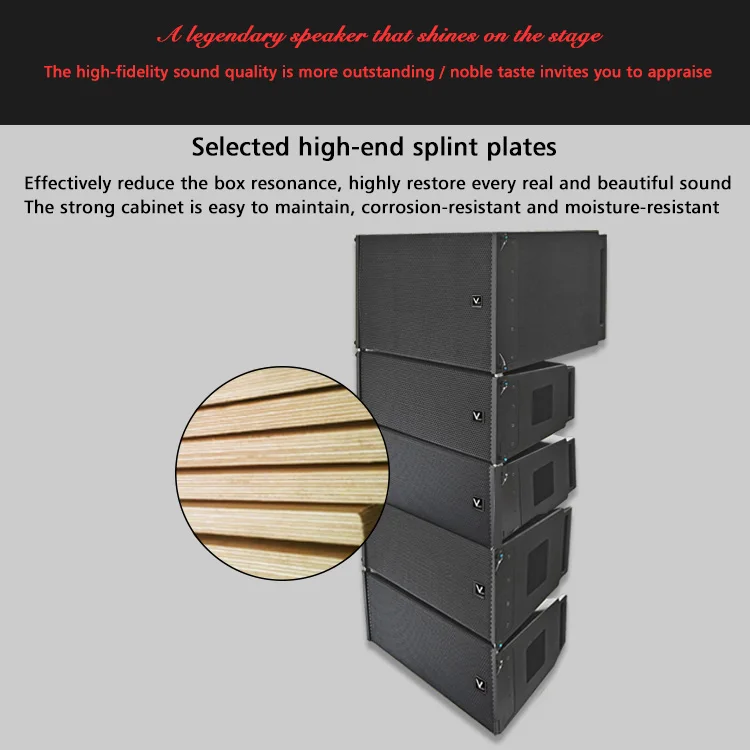

Enclosure Materials	Plywood
Nominal coverage Angle -6dB	H 90° V 10°
Finish / Color	Water resistant / black

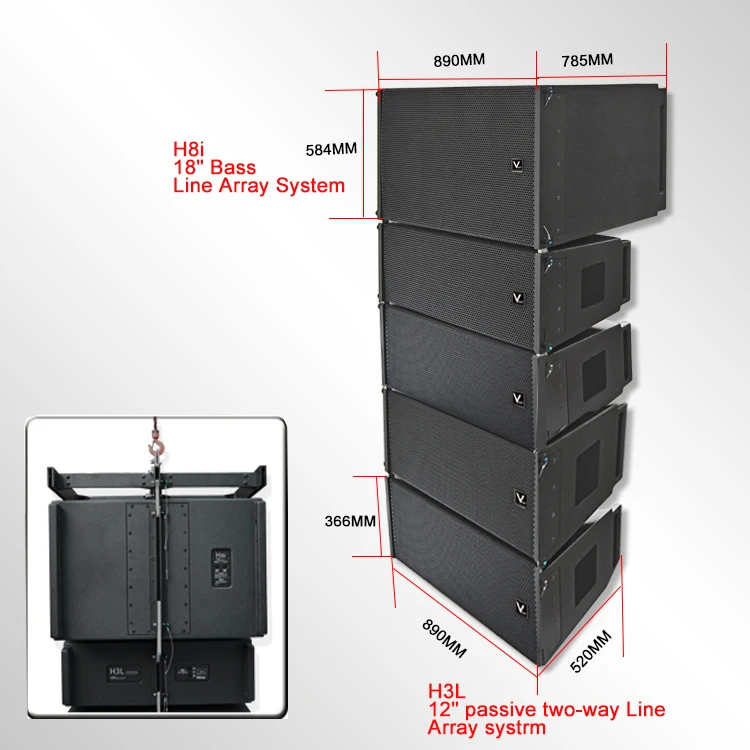

Product Total Dimensions(H W D)	360mm X 890mm X 522mm
Net weight (kg)	Net 49  Gross 51

H8i parameters
Frequency Response	±3dB 30Hz--350Hz
Axial Sensitivity(1W @1m)	101 dB
power handling	1600W (AES/RMS) / 6400W (PEAK)
Calculated maximum(SPL@1m)	133 dB(1600W) 139 dB (6400W)
system Configuration	Bass
LF Subsystem	2x18” LF Driver 125mm voice coil
Powering	NL4x2 2X8Ω
Enclosure Materials	Plywood
Nominal coverage Angle -6dB	H 90° V 10°
Finish / Color	Water resistant / black
Product Total Dimensions(H W D)	584mmX 890mm X 785mm
Net 86.5 Gross 88.5Net weight (kg)	Net  57    Gross  59

Products Description

Company Profile

Pursuit the outstanding quality to creat well-known world brand.

Huizhou Layeredsound co.,Ltd. brand English name: VANT brand Chinese name: Leerda professional audio, was officially established in 2009 in Huizhou City, Guangdong Province. The company integrates R & D, production and sales, and invites foreign engineers who have been engaged in audio research and development for 30 years to act as product research and development and engineering consultants. The company is mainly engaged in the design and installation of audio engineering, cinema engineering, conference engineering and other projects. The company mainly produces professional audio, linear audio, cinema audio, monitoring audio, LST patented technology 3D audio, card bag audio, car audio, flat panel audio, active audio, home theater audio, audio peripherals and other products.
