SPECIFICATIONS

CPU: 6/7th

Interface: USB

Memory: 4GB/8GB/64GB

OS: Android/Linux/win7/win8/win10

Operating System: Win7/8/10/linux

Product name: Industrial Computer Accessories

RAM: DDR4 16GB

Resolution: 1920*1200

Storage: 32G/64G/128G/256G SSD

Warranty: 3 Years

brand name: LOIAAFEL

place of origin: Guangdong, China

products status: Stock

type: Embedded Computer

Basic Information
Dimensions (WxHxD)	330x234x66.5 (overall), 330x234x66.5 (casing), 334x238 (panel mounting hole size)
Chassis Shell	Die-cast aluminum alloy
Cooling System	thermal design
Color	Iron gray
Operating System	Win10，Win7，Linux
Power Consumption	56W(regular)，86W(full load）
Power Supply	DC 9V-36V
Installation Method	Panel mount/VESA mount
Weight (N.W)	4.5KG
System
RAM	Provide 1x standard DDR4 SO-DIMM; support 1866/2133MHz DDR4 (Max 16GB)
Expansion Slot	Can choose no expansion or 1x PCI or 1x PCIEx1
Network	1x Mini-PCIE (support 4G and WIFI wireless network card)
ImageEngine	Iris Graphics 650
LED Indicator	Power supply, HDD, LAN
Processor	6/7代 Intel Core U SOC GPU
Hard Disk	Support2.5”SATA、SSD、mSATA、M.2 NVME/SATA
Watchdog	YES

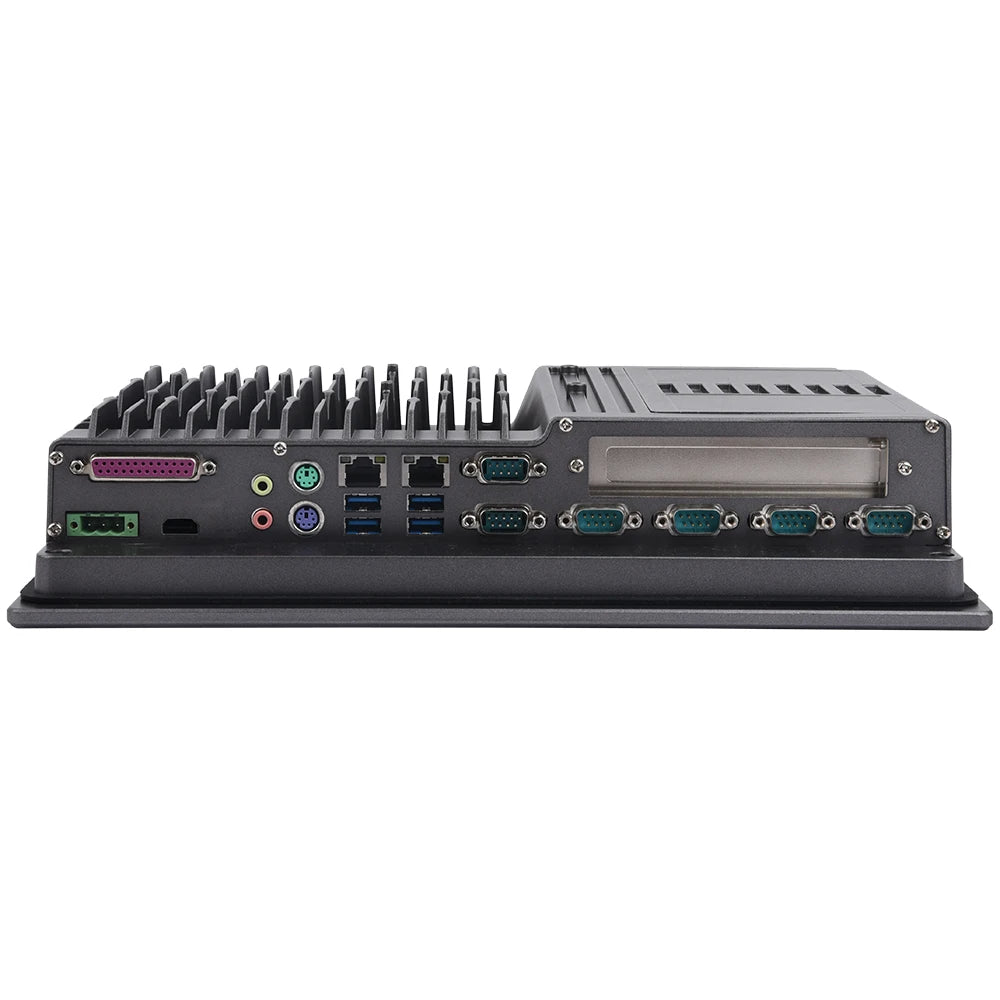

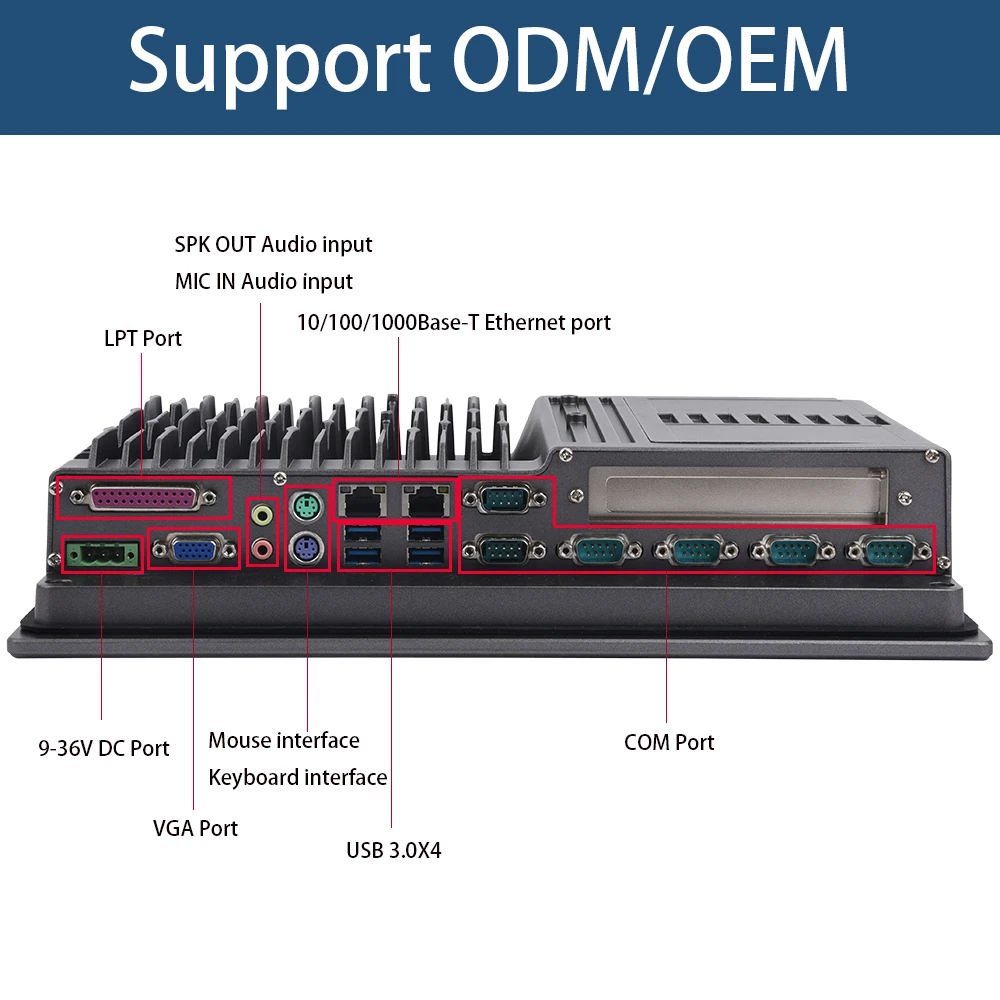

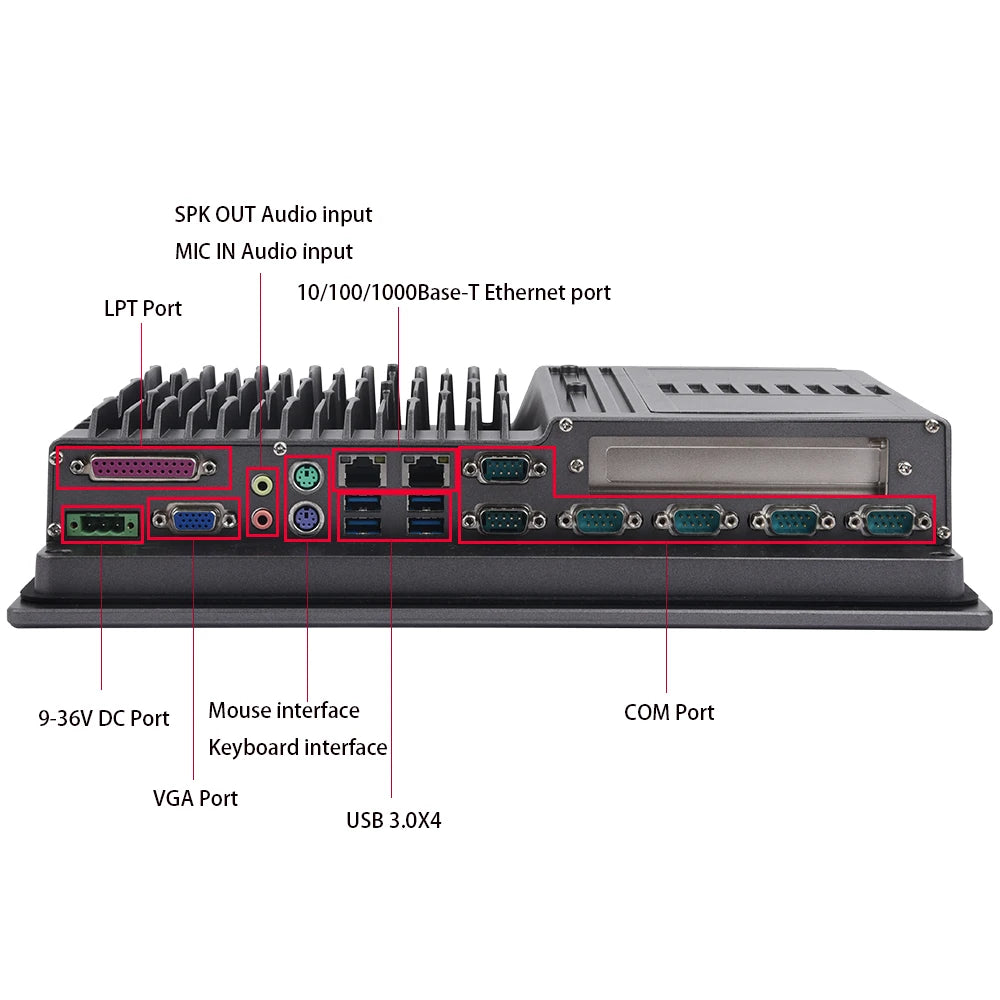

I/O Interface
Audio	1x SPK-Out(5W); 1x MIC
Display Output	LVDS, DP1.2
Network Port	2x Intel I211AT 10/100/1000Mbps RJ45
Power Interface	1x 3pins Phoenix Terminal
Serial Port	1x RS-232; 1x RS-232/422/485; 3x RS-232 or 485(optional)
USB	1x USB2.0; 4x USB3.0
Other	1x PS/2; 1x DB25
Optional	2x SIM; 1x 16bit DIO; Antenna Hole
LCD Monitor
Viewing angle (H/V°)	-80∽80
Brightness (cd/m2)	330
Contrast (typ.)	600:1
Maximum Resolution	DP(4096x2304)；LVDS(1024x768)
Maximum Color	16.7M
Display Type	12.1”XGA TFT LCD
Monitor Size	246.0x184.5mm
Backlight Life (Hours)	50,000
Touch Screen
Life	5 million times/250g Force (stroke), 35 million times/250g Strength (click)
Transmittance	81% (+/-3%)
Type	12" high temperature five-wire analog resistive
Touch Response	<15ms
Environment
Degree Of Protection	IP65
Operating Temperature	-20℃∽+60℃
Relative Humidity	5%∽95%(no condensation)
Storage Temperature	-40℃∽+80℃
Degree Of Protection	50∽500 Hz, 1.5 Grms
Shock	10G/peak（11ms sec）

1.Q: What is your MOQ? Do you accept printing our logo on the product?

A: We accept one unit for standard products. And we also accept to customize your logo. You can send us the sketch and we will start producing it after it is confirmed.

2.Q: What are the advantages of your factory?

A: Our LIFU company is a high-tech enterprise dedicated to the R&D, manufacturing, sales and system integration of special computers. We support ODM/OEM. If you have any new ideas, we have professional engineers to assist you in developing and manufacturing new products.

3.Q: Can you provide me with SDK?

A: Yes, we provide a free SDK if you order a sample. In addition, we also support engineers to assist you in software development and customize the products you want.

4.Q: Can I choose multiple functions in one device?

A: Yes, you can choose multiple functions in one device, different functions depend on the product model, optional functions: UHF RFID/Fingerprint/NFC (144443A/144443B/15693 and other protocols)/ID card recognition/ Barcode Scanner/Interface/Vehicle Power Supply

5.Q: How long is your product delivery time?

A: 2-4 days for samples, 15 days for mass products

6.Q: How long is the warranty period of your industrial computer and rugged tablet?

A: After you receive the product, non-artificial damage, our warranty period is 24 months and it will be repaired for free.

7. Q: How do you guarantee your quality?

A: Our products comply with ISO9001 quality system and CE/FCC/ROHS standard. All of our products have passed the strict QC inspection production process. Especially export products need to complete 72-hour aging test to ensure that there is no problem before shipment.

8. Q: For customers who don't have freight forwarder, what can you help me?

A: If you don't have a shipping company, we can help you find a shipping agent. Later, we can also help you follow up a series of problems in the subsequent transportation process. You don't have to worry. We have a professional shipping team to help you. If you have a forwarder in China, we can help you ship the goods to your forwarder.

9.Q: How to repair if there is a problem with the equipment?

A: Our company will provide technical support online to solve the problem; if it is a hardware problem, we can send the parts or components and guide the installation, or you can also send it back to us for repair.
