Feature:

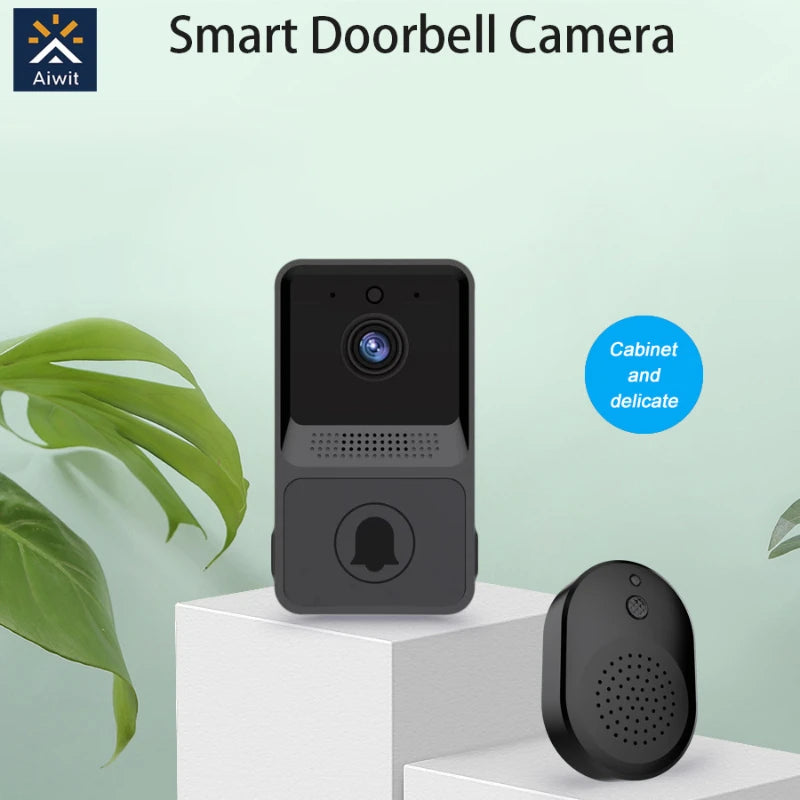

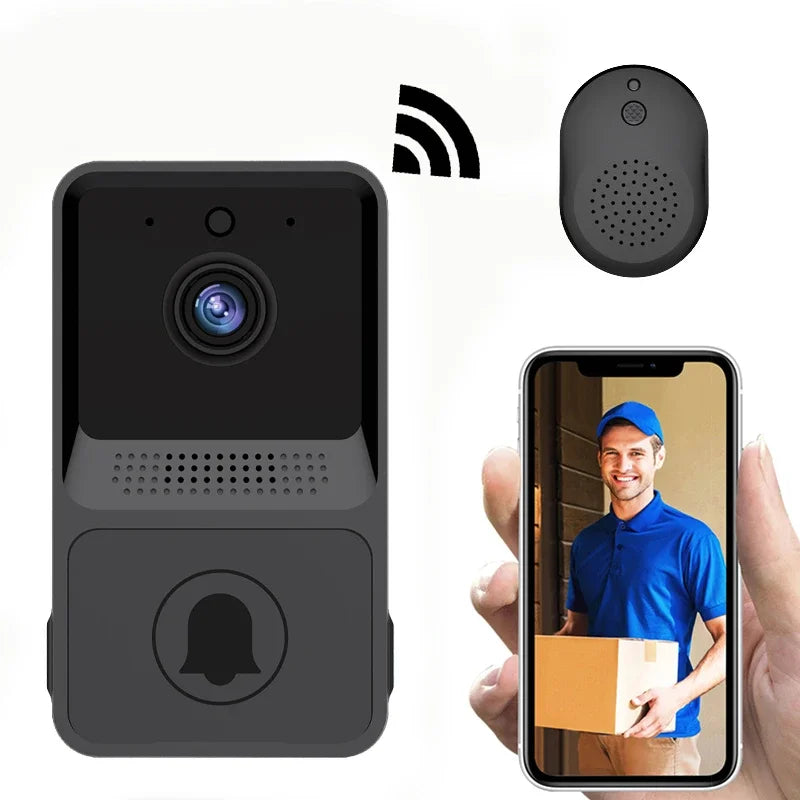

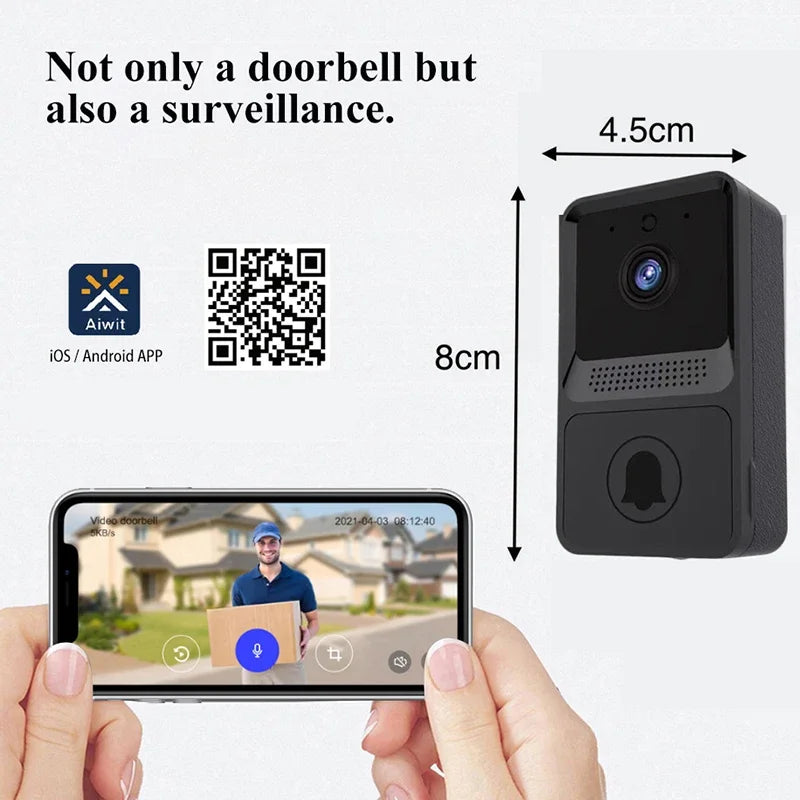

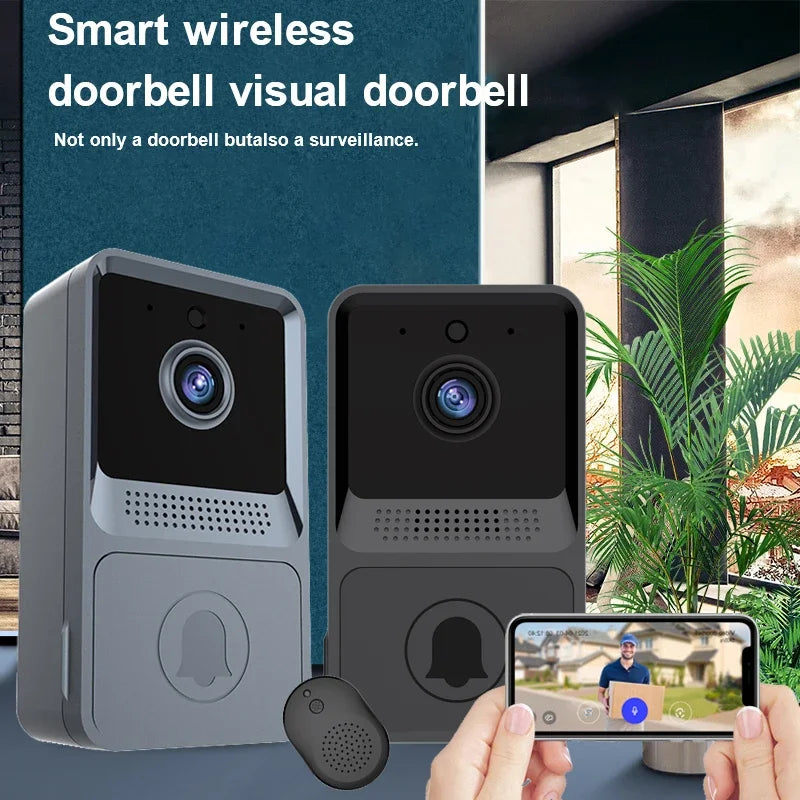

1: Wireless intelligent doorbell, visual and intercom doorbell supports remote distance viewing;

2: 800mA battery, standby and dormant for one year (3-6 months of normal daily use);

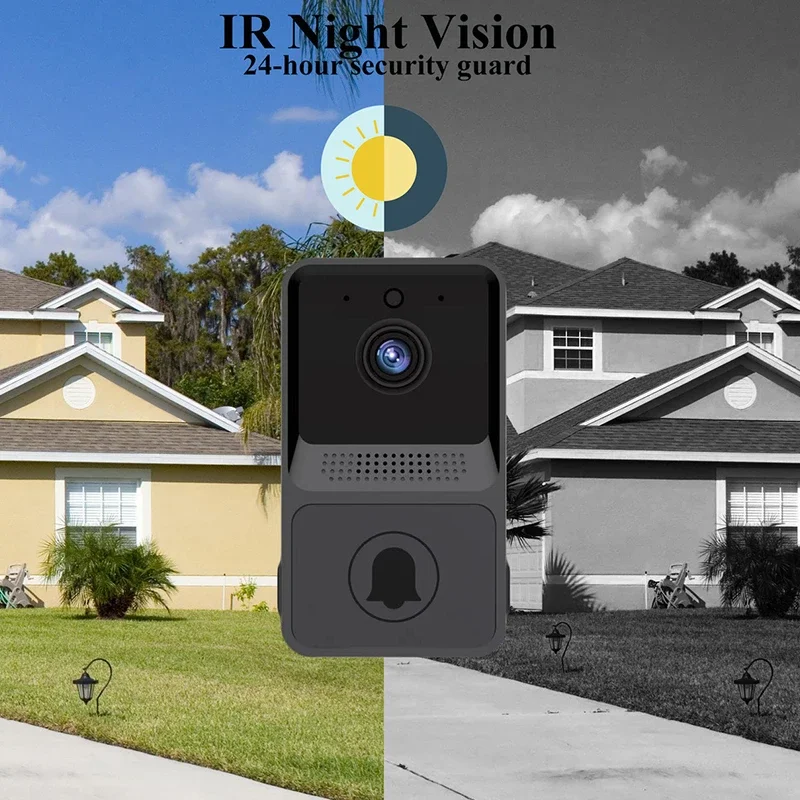

3: Night vision, 100 ° wide angle, doorbell monitoring two in one, supporting online viewing, making your home safer.

Specifications:

1. Main control: XR872
2. Memory: 32Mb flash
3. Sensor: 30W GC0328 CMOS sensor
4. Lens: 100 ° wide-angle lens sensor Performance: support automatic white balance, automatic gain control, automatic backlight compensation
5. Signal to noise ratio: ≥ 41dB
6. Minimum illumination: 0.8Lux/F1.4 (color mode), 0.3Lux/F1.4 (black and white mode)
7. Night vision: two 850nm Φ 28Mil high-power infrared lamp night vision distance: 1m is the best, and the longest distance is 3m
8. Video format: JPG

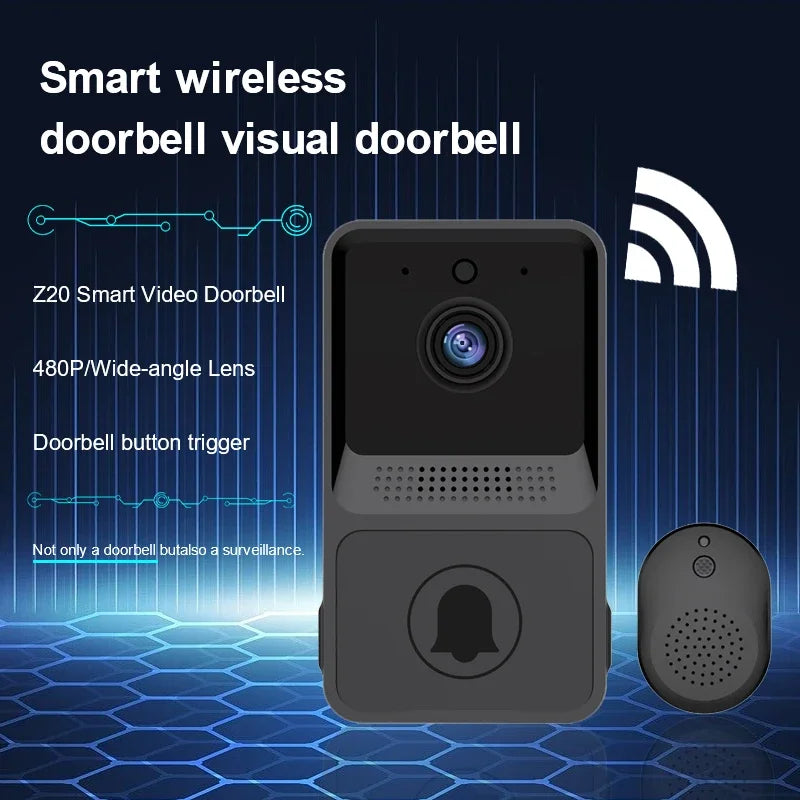

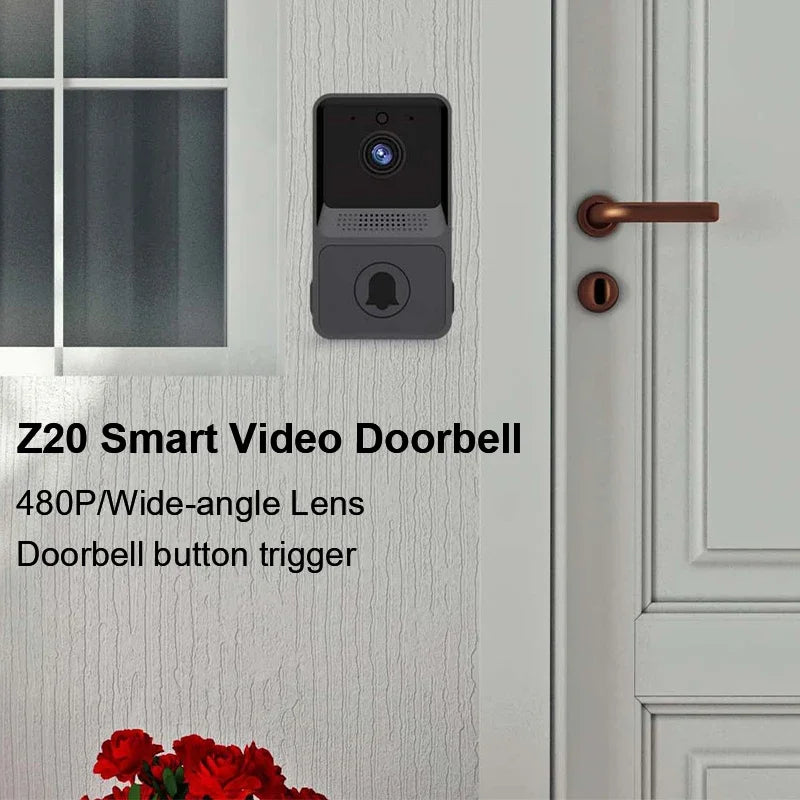

9. Video size/frame rate: 480P/7fps
10. Recording mode: 1. Press the key to trigger recording;
11. Cloud storage image: 5 seconds (5 pictures)
12. Battery type/capacity: polymer 803035/800MAH Battery discharge time: polymer battery dormant for 1 year
13. Network protocol: TCP/IP/HTTP/TCP/UDP/DHCP/DNS/NTP/RTP/P2P/WIFI connection: 2.4GHz wifi, support (802.11 b/g/n)
14. Ding Dong: RF 433MHZ Ding Dong is supported
15. Storage: support cloud storage function (without TF card function), 3-day free circular cloud storage"
16. Working voltage: polymer 803035/3.7V
17. Working current: working current 219mA, deep sleep current 10mA, open infrared working current 280mA
18. USB charging voltage: DC 5V/1.5A 19. Storage temperature (℃): (0 ℃～ 50 ℃)
20. Operating temperature (℃): - 10~50 ℃, operating humidity<95%

Package List:

Backing glue * 1pcs
Host * 1 pcs
Dingdong machine * 1 pcs
Screws * 1 pcs
Wire * 1 pcs
Instruction manual * 1pcs
