SPECIFICATIONS

Brand Name: NONE

Condition: New

Dissipation Power: standard

High-concerned chemical: None

Operating Temperature: standard

Origin: Mainland China

Supply Voltage: standard

Type: Module

is_customized: Yes

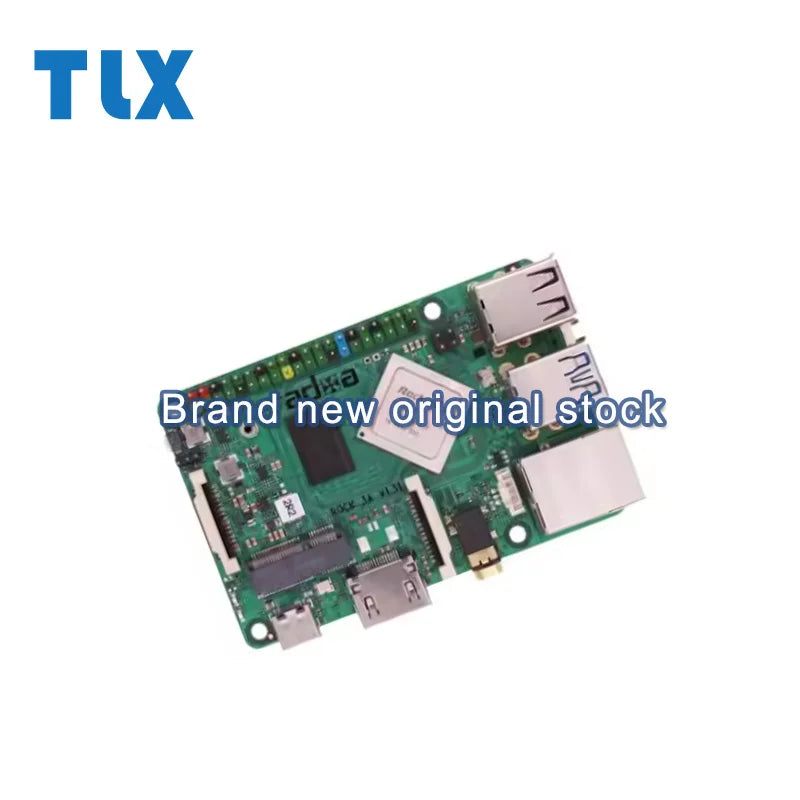

SoC Rockchip rk3568

CPU: Quad-core Cortex-A55, with a maximum frequency of up to 2GHz

GPU: Arm Mali™-G52-2EE, supporting Arm Mali™-G52-2EE, OpenGL® ES1.1/2.0/3.2, Vulkan® 1.1, OpenCL™ 2.0

Memory: 1/2/4/8 GB LPDDR4

Storage: Built-in eMMC module: 0/8/16/32/64 GB

microSD memory card

Display: Provides Micro HDMI interface: Supports 4K@60fps output 1x2 lane MIPI DSI

Ethernet Gigabit Ethernet supporting Power over Ethernet (PoE)

PoE requires an additional optional HAT

Wireless Communication M.2 E Key supporting an external Radxa Wireless Module A8 (Wi-Fi 6 & BT 5.2)

USB 2x USB 2.0 HOST ports

1x USB 3.0 HOST port

1x USB 3.0 OTG/HOST port

Camera 1x2 lane MIPI CSI

Others 40-pin expansion socket

Power Supply Requires a 5V/2A power adapter

Size 65mm x 30mm
